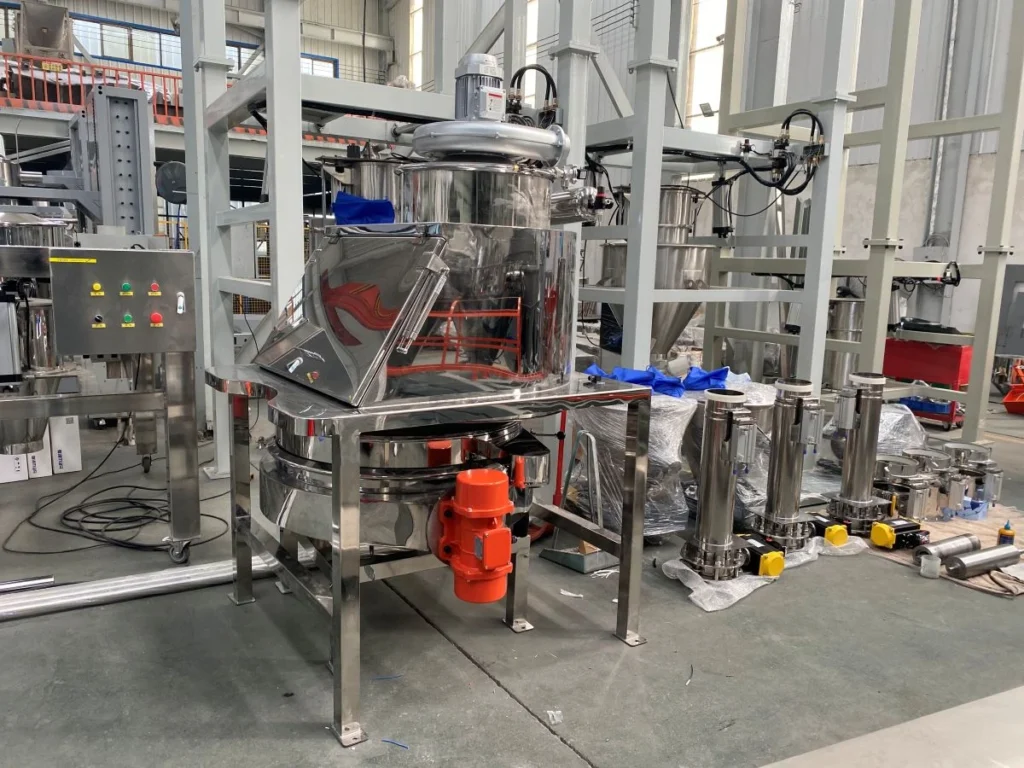

Bulk Bag Dump Station for Efficient Powder Handling
YuanJing bulk bag dump stations are designed for reliable and clean unloading of powders and granular materials from large bags. The system helps reduce dust, improve working conditions, and keep your production running smoothly. It is widely used in industries such as food processing, chemicals, and construction materials.
Based on different materials and process requirements, YuanJing can provide practical solutions, including dust control design, industrial sieve integration, and connection with conveying equipment. Whether you need a single unit or a complete handling system, the equipment can be configured to fit your production line and make operations more efficient and stable.

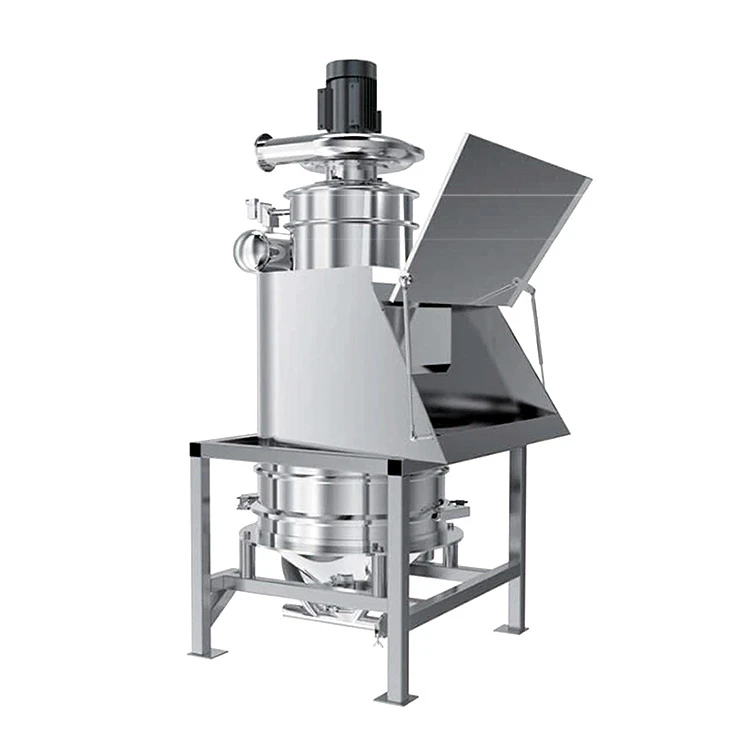

What is a Bulk Bag Dump Station?
The bulk bag dump station is a transfer device that utilizes negative-pressure dust collection. It is designed for opening bags and feeding materials during the production process. It allows materials to be stored before conveyance and, when used in conjunction with a dust collection system, effectively prevents dust from becoming airborne. It effectively isolates dust and other particulates generated during feeding from both equipment and personnel.
Under the negative pressure created by the fan, dust is drawn into the filtration system, separating the gas from the material. When a sufficient amount of material accumulates, it falls into the hopper due to its own weight. This system reduces material waste, eliminates the need to clean remote dust collection areas, and simultaneously protects workers while preventing factory contamination.

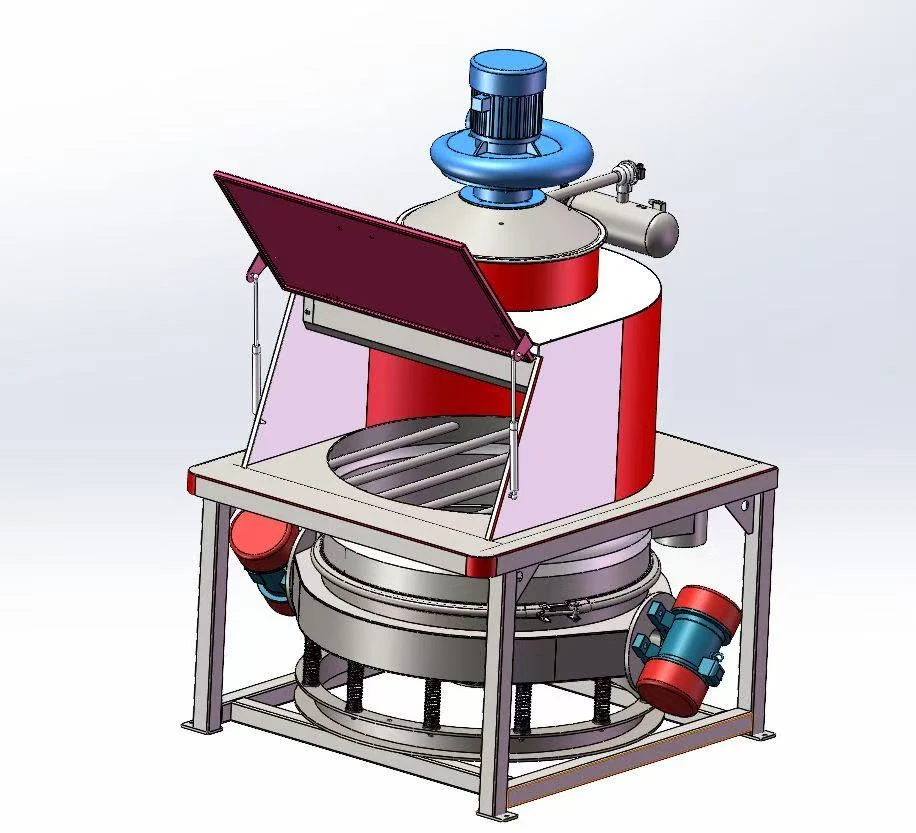

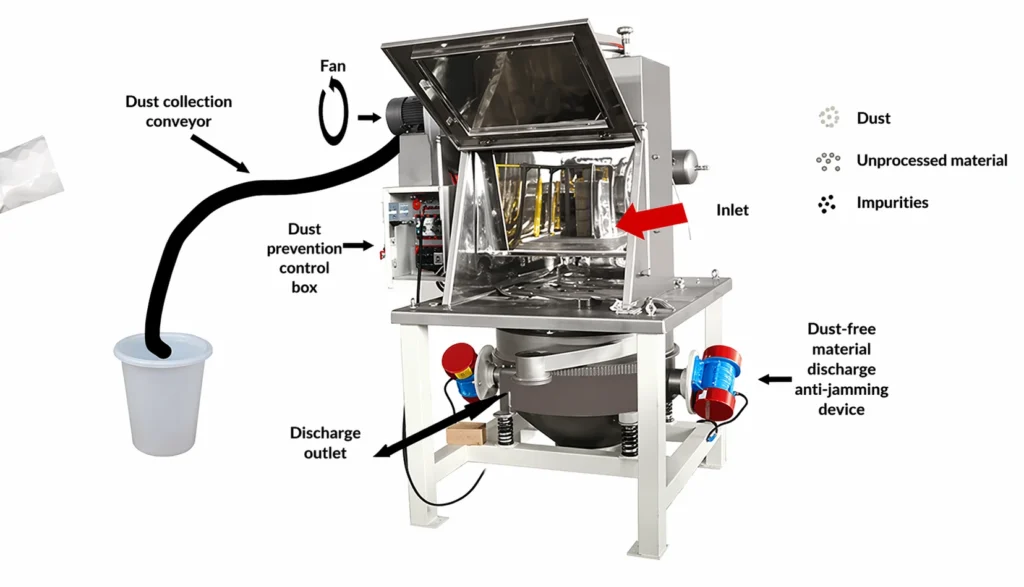

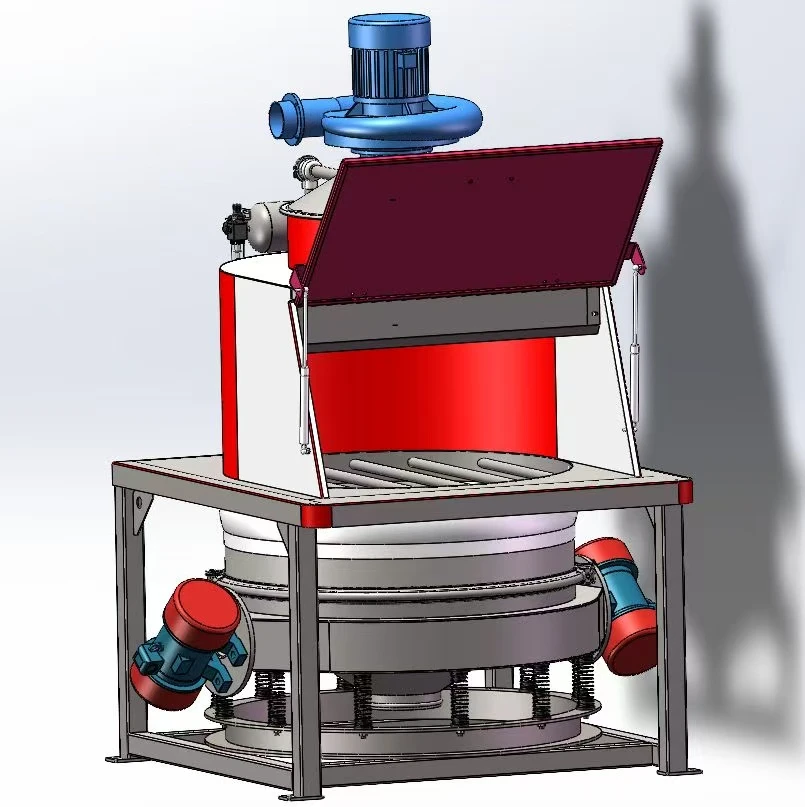

Working Principle
When small bags of material need to be opened and transferred to the next process, simply open the bags manually and place the contents directly into the system. Dust generated during feeding is collected by a dust extraction fan. The material passes through a vibrating screen (safety screen) to intercept loose particles and foreign objects, ensuring that only particles meeting the specifications are fed into the system.
1. The dust-free screening and feeding station consists of two main components: an upper section for dust collection and a lower section for raw material industrial sieving or conveying.
2. In the upper section, a negative-pressure fan collects dust into high-density filter cartridges. After a certain period, a pulse-jet cleaning system backwashes the filter cartridges, causing the dust to fall back into the lower direct-discharge screen for re-screening. This backwashing mechanism enables material reuse and ensures no raw material is lost.
3. Lower screening equipment: Can be integrated with straight-discharge screens, rotary vibrating screens, ultrasonic vibrating sieve, screw conveyors, and positive-pressure or Pneumatic Vacuum Conveying.

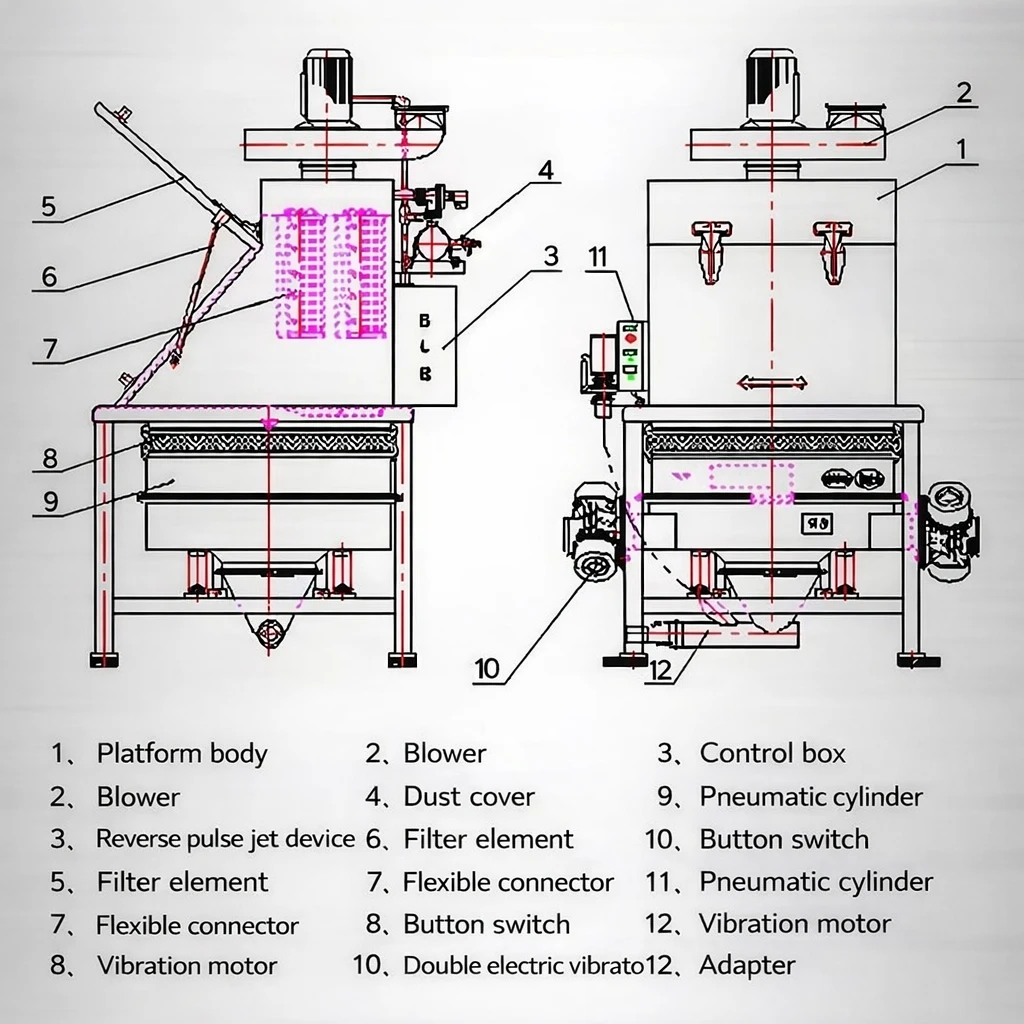

Parts

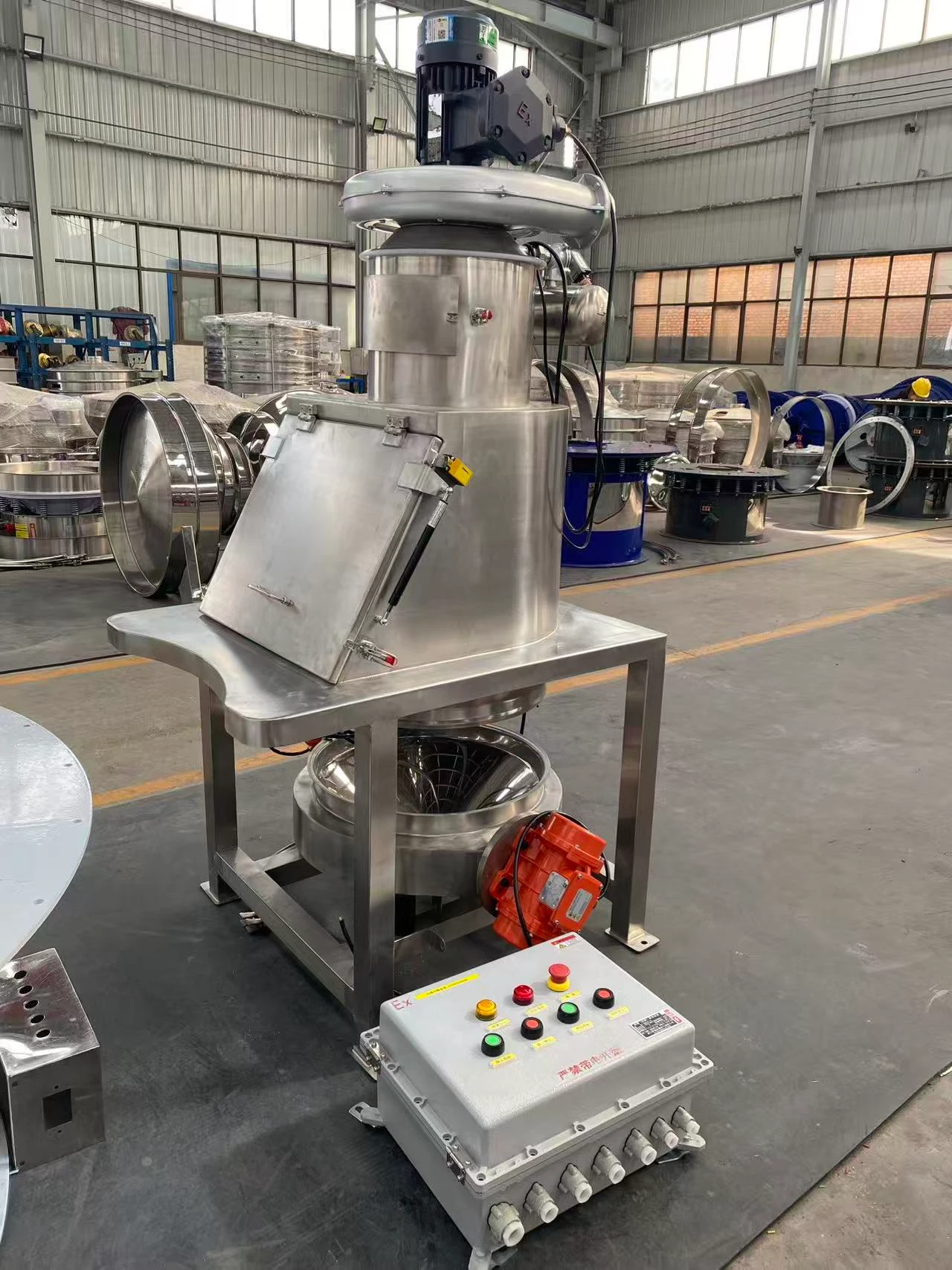

The main components include a quick-opening door, a control panel, a storage hopper, a movable guard screen, a de-arching vibrator, and a dust collection system.
The underside of a manual dumping station is typically connected to equipment such as rotary discharge valves, butterfly valves, slide gate valves, powder metering valves, vacuum feeders, vacuum conveyors, screw conveyors, diverter valves, hoppers, and storage bins.

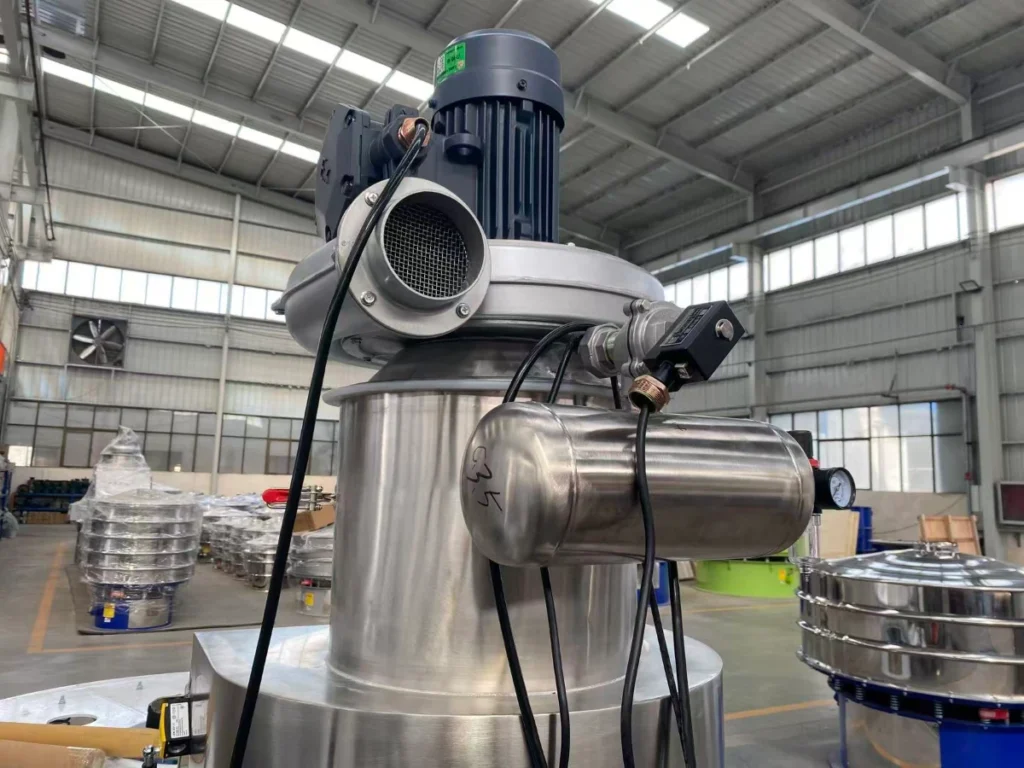

Blower

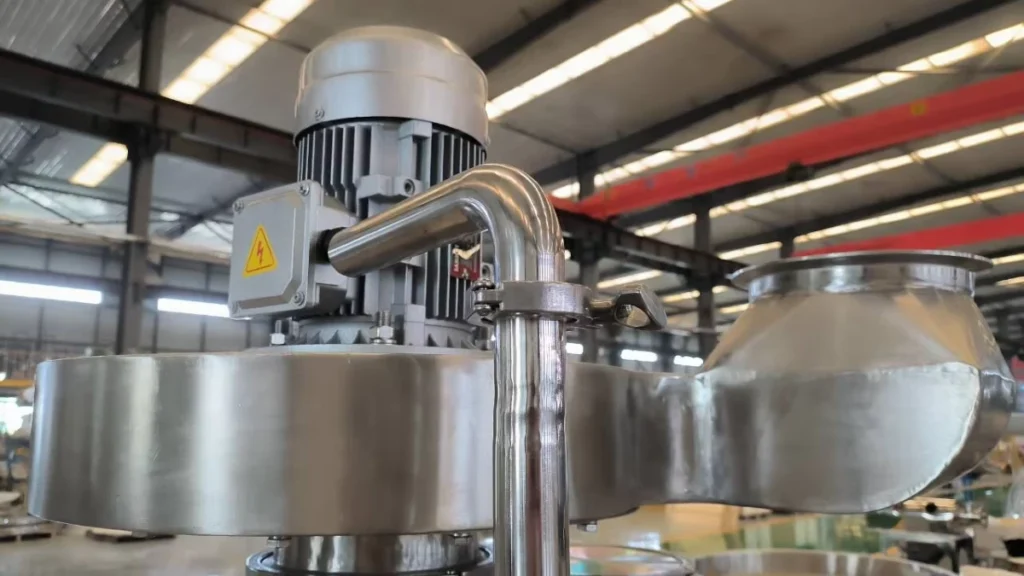

Dust collector fan

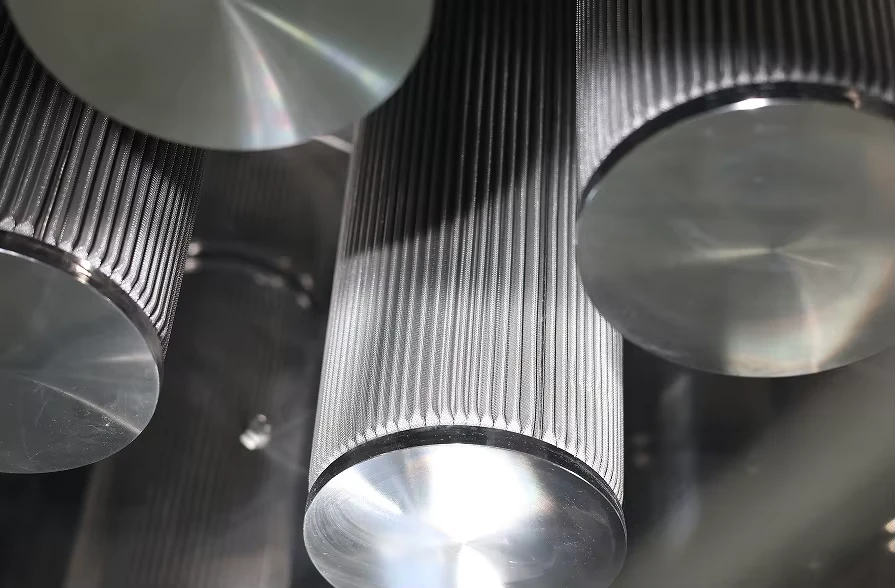

Filter element

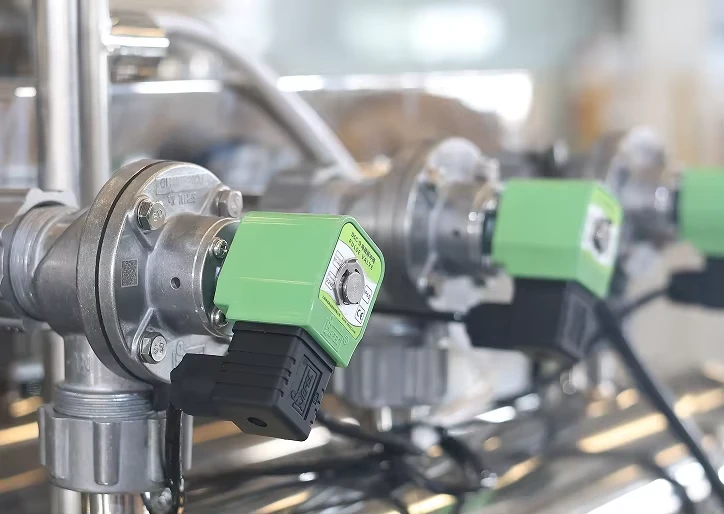

Reverse air valve
Features
- The automatic dust free bag dump station collection system effectively extracts dust, preventing dust generation during bag opening and feeding processes, thereby improving the working environment.
- A single unit can handle 50 kg, 25 kg, and 15 kg bags, meeting various processing requirements.
- Equipped with screening and vibration devices to facilitate unloading and pipeline conveyance, while preventing foreign objects from entering the material during feeding.
- The system is resistant to material blockages. An optional dust collector can be installed to reduce airborne dust, protect the environment, and lower labor intensity.
- An active hopper is installed at the bottom of the storage tank, and the size of the storage bin can be selected as needed; it can be effectively connected to the next process step.
- With fine filtration precision, there is no waste or loss of material. The compact design allows for easy mobility and a wide range of applications.

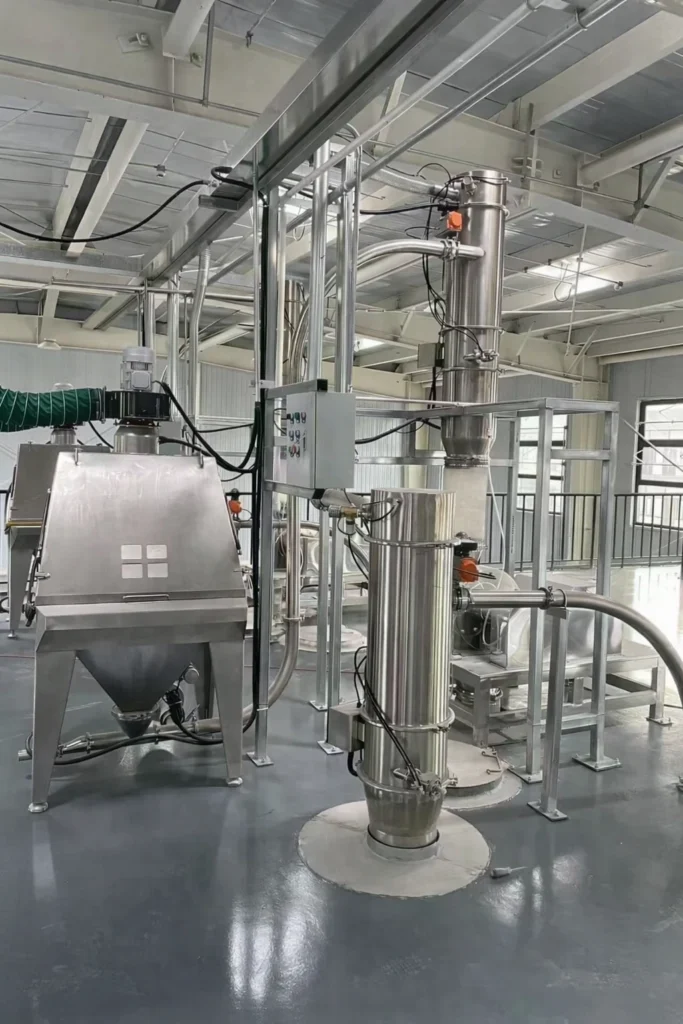

Alumina powder

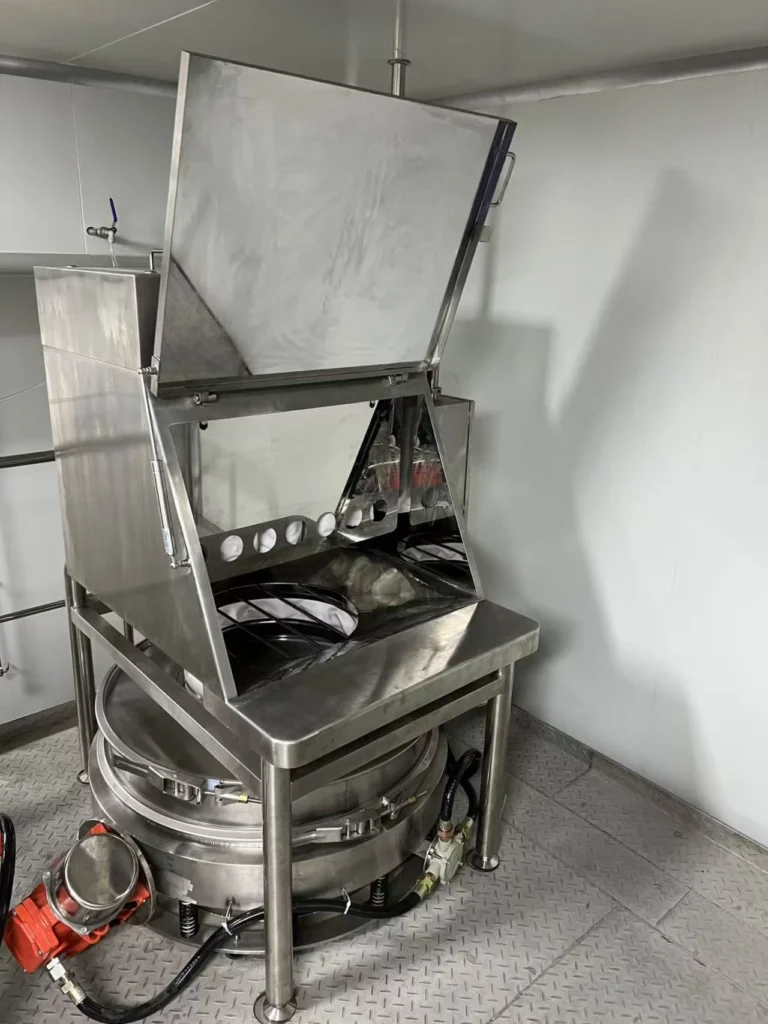

Barium sulfate

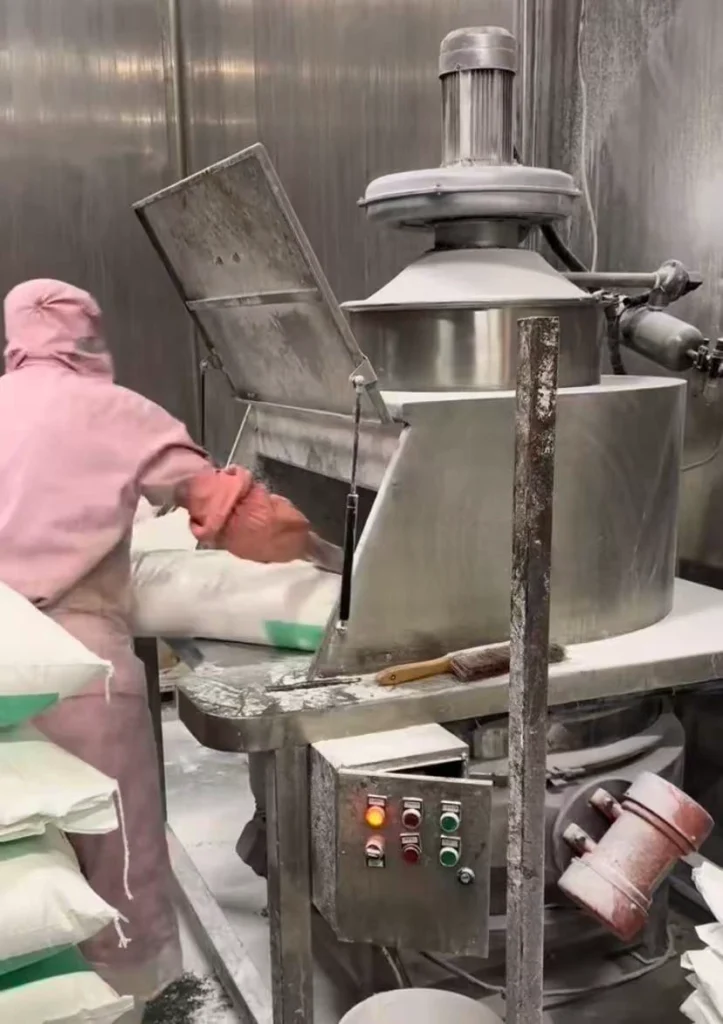

flour

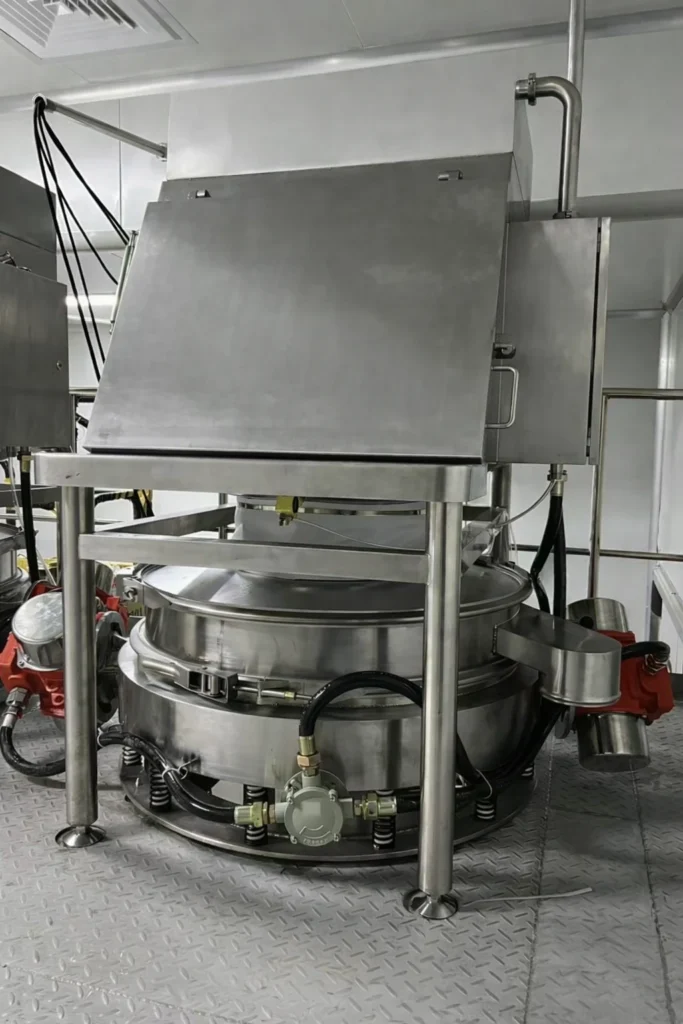

protein powder

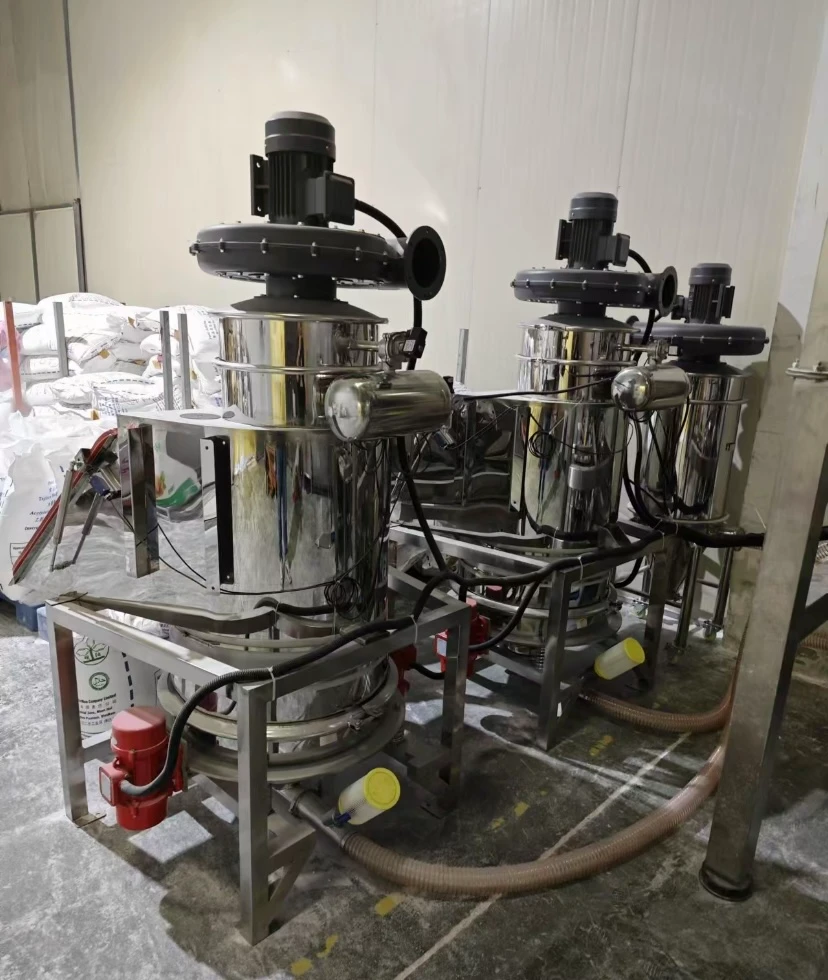

starch

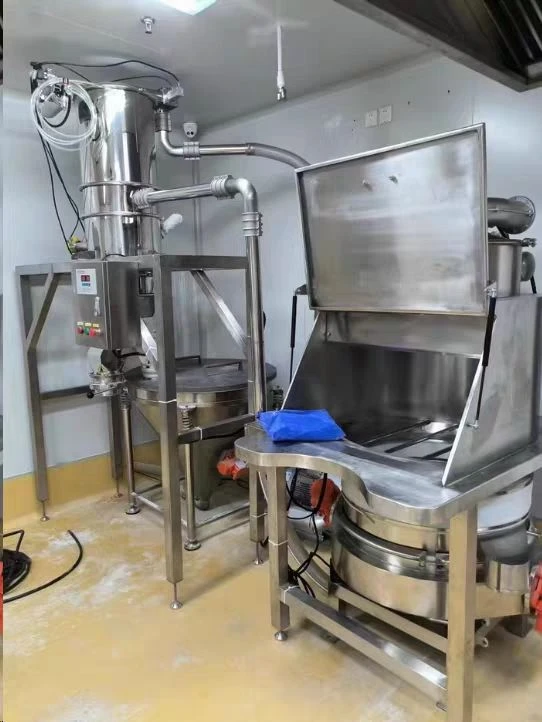

White Pepper Powder
How to Choose the Right Bulk Bag Dump Station
Selecting the right bulk bag dump station is essential for efficient and reliable material handling. The right configuration depends on your material properties, production requirements, and site conditions.
Material Type
Free-flowing materials require standard designs, while powders that are sticky or prone to bridging may need vibration or flow-assist devices.
Bag Size & Weight
Different bag dimensions and load capacities affect the frame structure and lifting system, such as hoists or forklifts.
Dust Control Requirements
For fine or dusty materials, a sealed design with dust collection helps maintain a clean and safe working environment.
Output Capacity
The dust free bag dump station system should match your production rate to ensure smooth and continuous material discharge.
.
Bulk Bag Dump Station Customization Options
| Customization Item | Options / Choices | Description |
| Material of Construction | Carbon Steel / SS304 / SS316 | Different materials for general, food-grade, or corrosive environments |
| Structure Design | Open Type / Fully Enclosed | Open for easy access, enclosed for dust-free operation |
| Discharge Method | Manual / Valve Control / Assisted Discharge | Adjusted based on material flow characteristics |
| Flow Assistance | Vibrator / Massage System / Air Pads | Prevents bridging and ensures smooth material flow |
| Dust Control System | Dust Collector / Sealed Connection | Reduces dust leakage and improves workplace safety |
| Lifting Method | Hoist / Forklift / Crane | Flexible options based on plant layout |
| Integration Equipment | Vibrating Screen / Screw Conveyor / Feeder | Can be connected to downstream processing systems |
| Control System | Manual Control / PLC Automation | Supports different levels of automation |
| Capacity | Customized Based on Production Needs | Designed according to the required throughput |
| Explosion-Proof Option | Available (for hazardous environments) | Suitable for flammable or explosive materials |
Applications
Bulk bag dump stations are widely used for handling different types of powders and granular materials across industries. Below are typical materials handled in each sector.
Food Processing
Flour, sugar, starch, milk powder, cocoa powder, salt, and food additives.
Chemical Industry
Calcium carbonate, soda ash, titanium dioxide, resins, pigments, fertilizer powders, and activated carbon.
Pharmaceutical Manufacturing
Active pharmaceutical ingredients (API), excipients, lactose, microcrystalline cellulose, powdered supplements, and granulated intermediates.
Plastics & Polymers
Plastic pellets, polymer granules, masterbatch, PVC powder, polyethylene (PE), and polypropylene (PP).
Construction Materials
Cement, lime powder, gypsum, sand, fly ash, and silica powder.
Mining & Mineral Processing
Quartz powder, bentonite, talc powder, kaolin clay, iron ore fines, graphite powder, and mineral additives.
Why Choose Our Bulk Bag Dump Station
Our bulk bag dump stations are built to improve efficiency, reduce dust, and adapt to different production needs. With practical design and flexible configuration, they provide a reliable solution for bulk material handling.
Reliable Structure
Heavy-duty design ensures stable operation when handling large and heavy bags.
Dust Control Design
Sealed structure and dust collection options help keep the working area clean.
Flexible Configuration
Can be combined with vibrating screens, conveyors, and other equipment.
Smooth Material Flow
Flow-assist options reduce bridging and ensure continuous discharge.
Easy Operation
Simple structure makes loading, unloading, and maintenance more convenient.
Custom Solutions
Each system can be tailored based on material, capacity, and process requirements.
