Vibrating Sieving Machine for Industrial Powder Screening

Yuanjing vibrating screen equipment is suitable for industries such as food, pharmaceuticals, chemicals, metal powders, and mining. It supports a variety of screen mesh sizes, offers customizable designs, and is capable of continuous operation to meet the demands of various demanding screening applications. Whether you need ultra-fine powder screening, anti-clogging screening solutions, or high-capacity material classification, our equipment helps manufacturers improve product quality, reduce material waste, and enhance processing efficiency. We supply globally, including fast delivery to the USA, Europe, and Southeast Asia.

High screening accuracy and stable throughput
Efficient separation of powders, granules, and slurries
Stainless steel and sanitary-grade options available
Custom screening solutions for various industries
Fast delivery and global technical support
Yuanjing Machinery provides professional screening solutions at highly competitive factory prices.

Get a Quote send to email

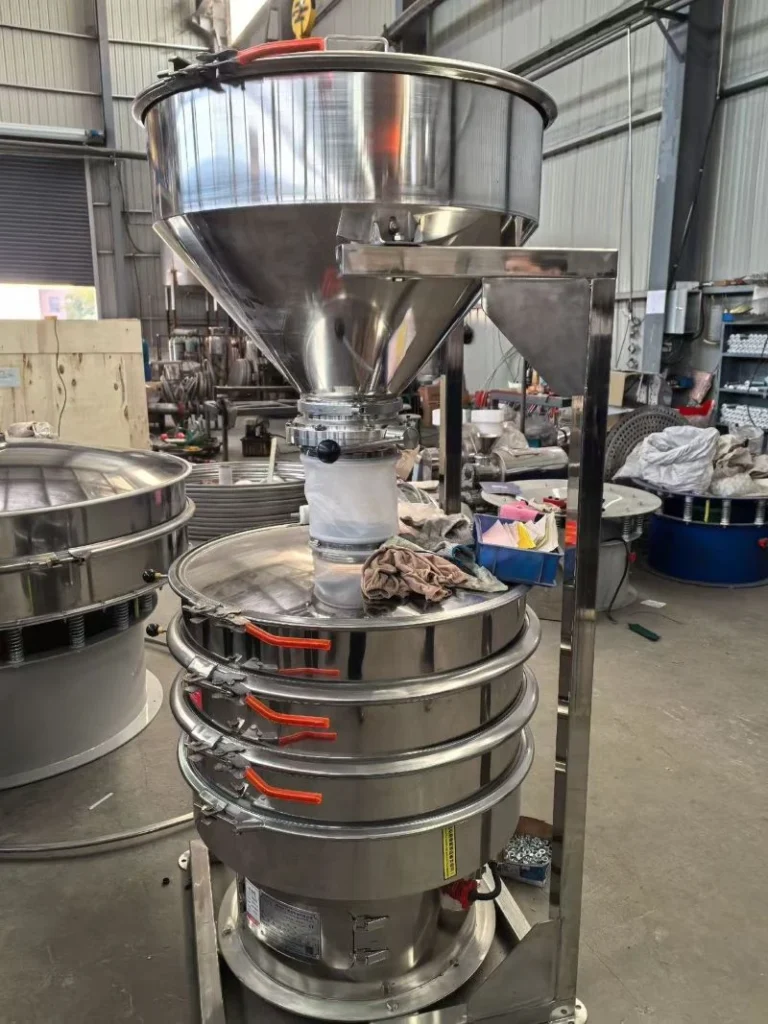

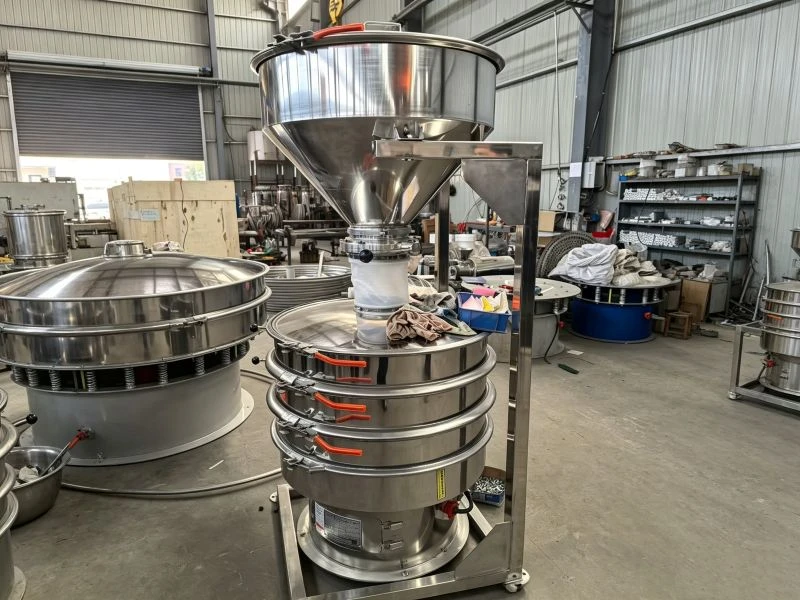

What Is a Vibrating Sieving Machine?

The vibrating sieving machine is specially designed to improve the quality of your powder, granule or liquid products for inspection screening of your products. It is ideal for screening incoming ingredients and final production inspection of finished powders. By increasing the number of sieve layers, the product is sieved with different finenesses to achieve a precise particle size distribution.

How a Vibrating Sieving Machine Works

Material Feeding

Raw materials are fed into the machine through an inlet at the top or side.

Vibration Generation

A vibration motor creates high-frequency vibration in multiple directions (usually vertical and horizontal).

Particle Stratification

Materials are spread evenly across the screen surface. Smaller particles move downward while larger particles stay on top

Screen Separation

Fine particles pass through the mesh openings, while oversized particles are discharged separately.

Continuous Output

Separated materials are collected at different outlets for further processing or packaging.

This continuous operation allows high efficiency and stable performance in industrial production lines.

Types of Vibrating Sieving Machines

Vibrating sieving machines are used to separate powders, granules, and bulk materials by particle size. Different screening structures are designed for different materials, capacities, and accuracy requirements. Choosing the right model helps improve screening efficiency, reduce material loss, and maintain stable production.

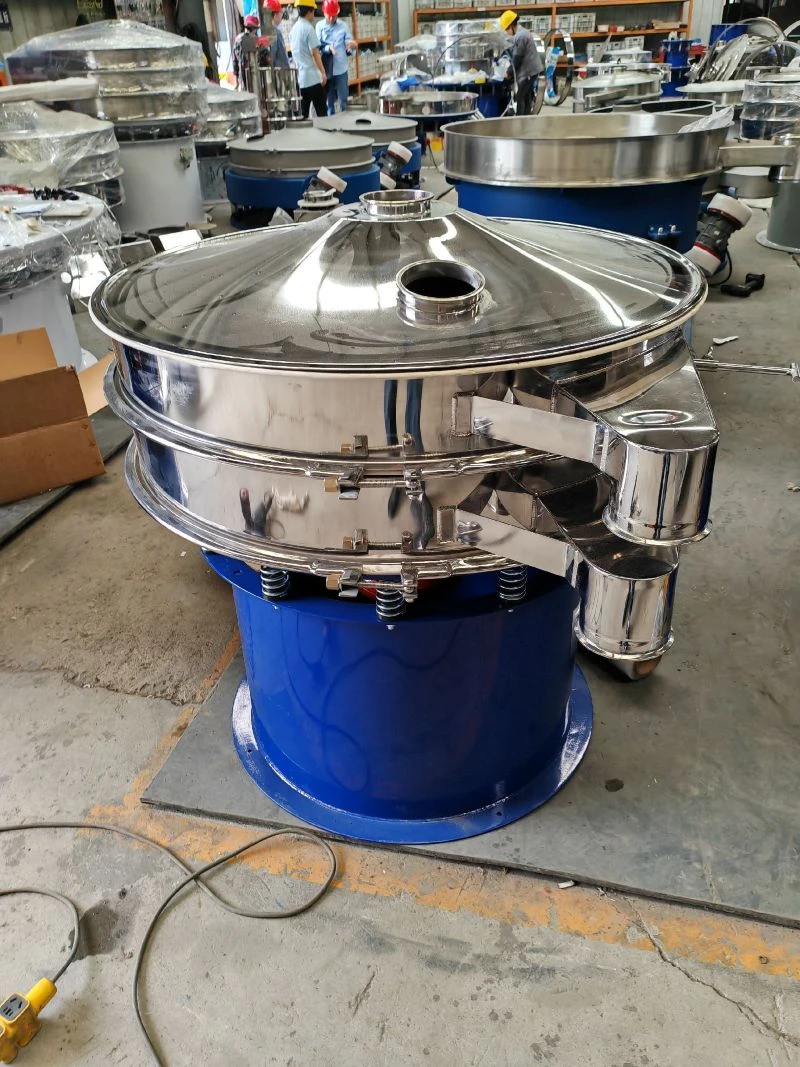

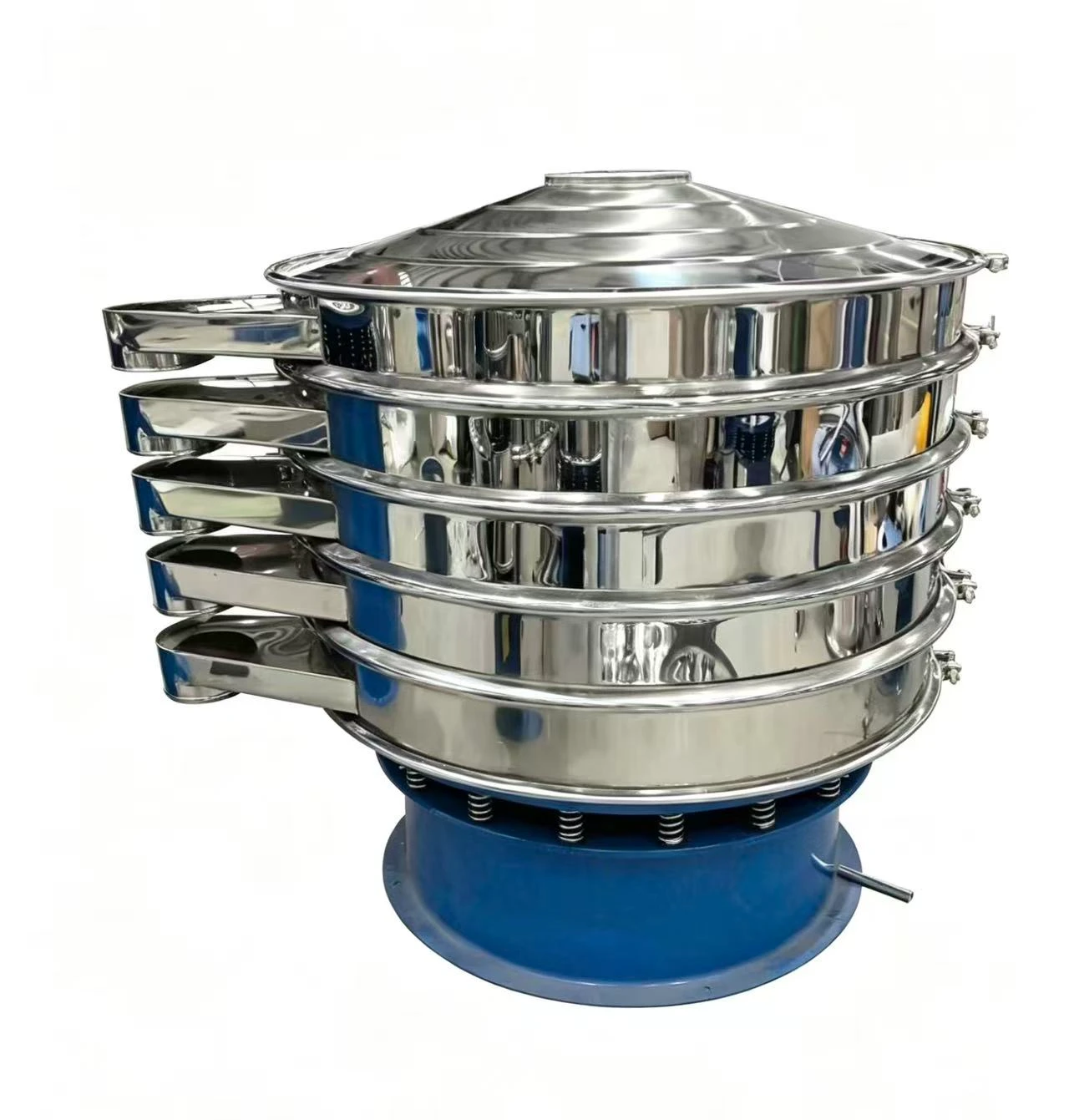

Rotary Vibrating Sieving Machine

Rotary vibrating sieving machines are widely used for fine powder and granule screening. The circular vibration motion provides stable material flow and high screening precision. Suitable for multi-layer classification and fine impurity removal.

Features: Compact structure, High screening accuracy, Multi-deck separation, Easy mesh replacement, Suitable for continuous operation

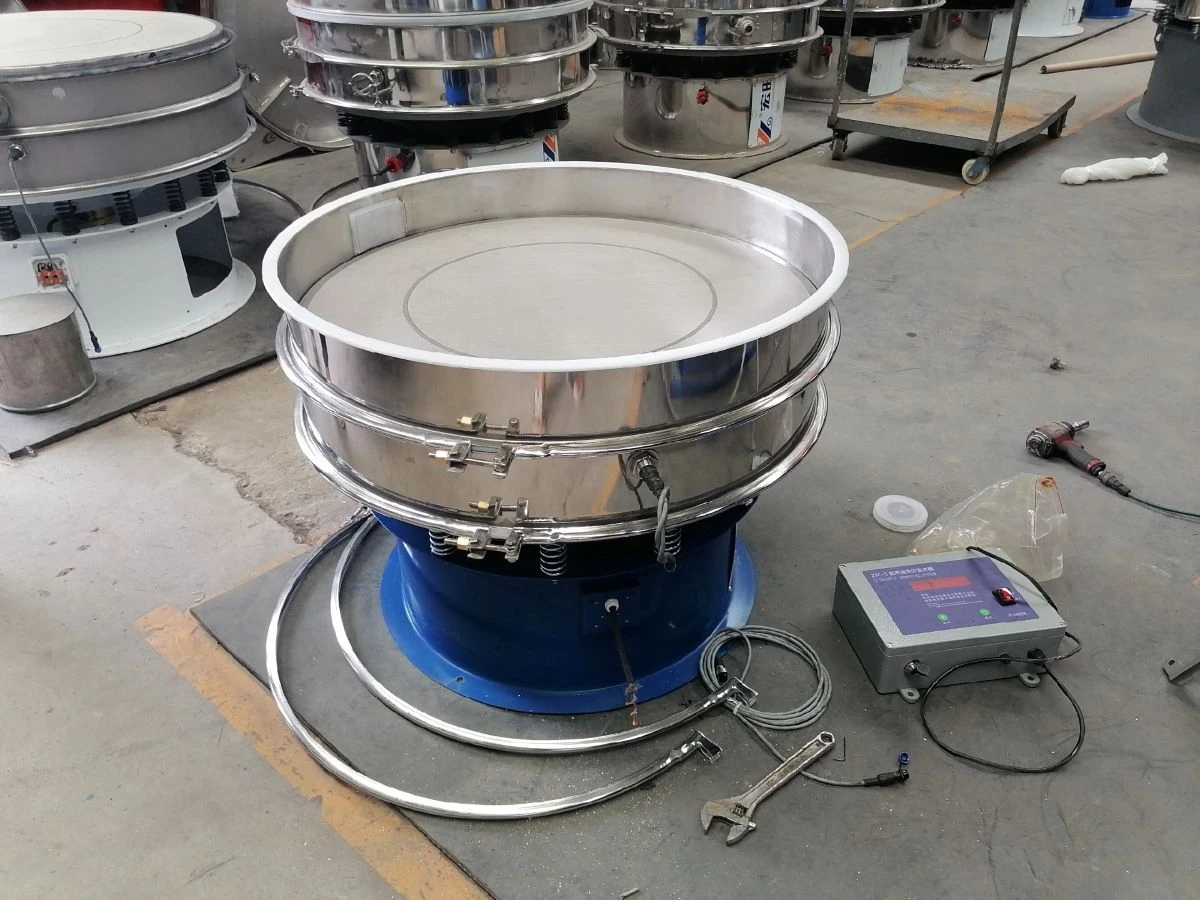

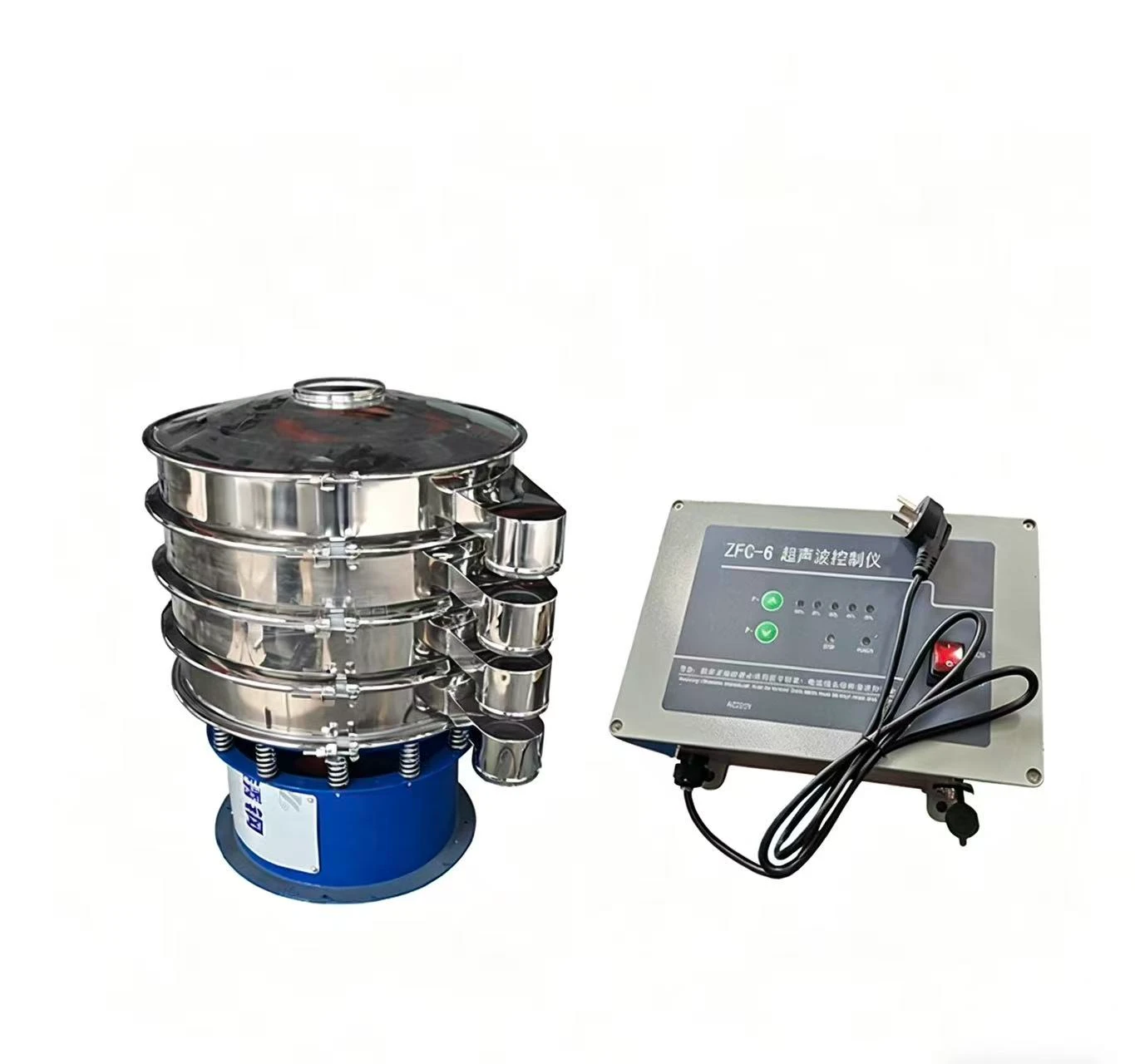

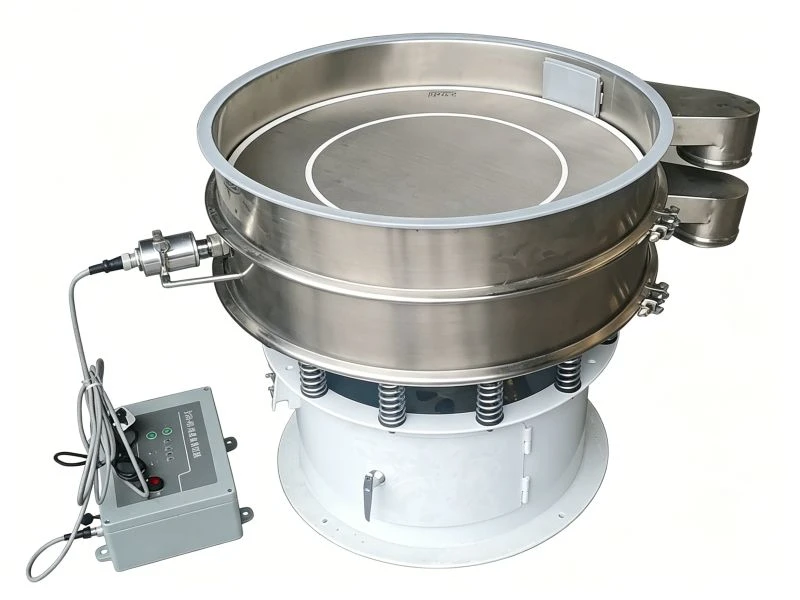

Ultrasonic Vibrating Sieving Machine

Ultrasonic vibrating sieving machines are designed for ultra-fine powders and difficult screening materials. The ultrasonic system reduces mesh blockage and improves the passing rate for lightweight or static materials.

Features: Prevents mesh clogging, Improves fine powder screening efficiency, Suitable for high-mesh screening, Stable screening performance

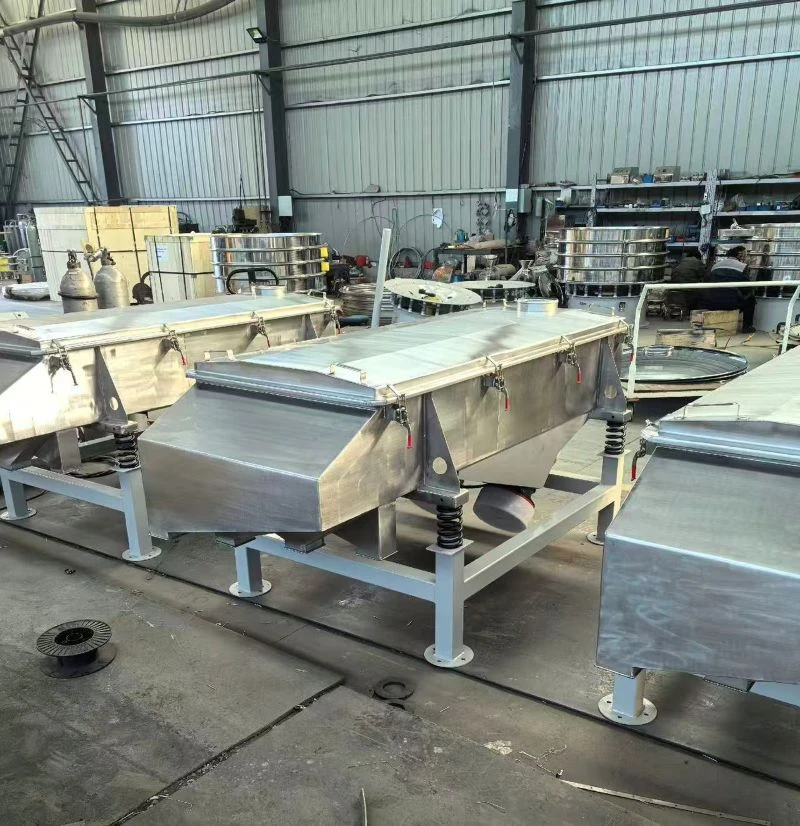

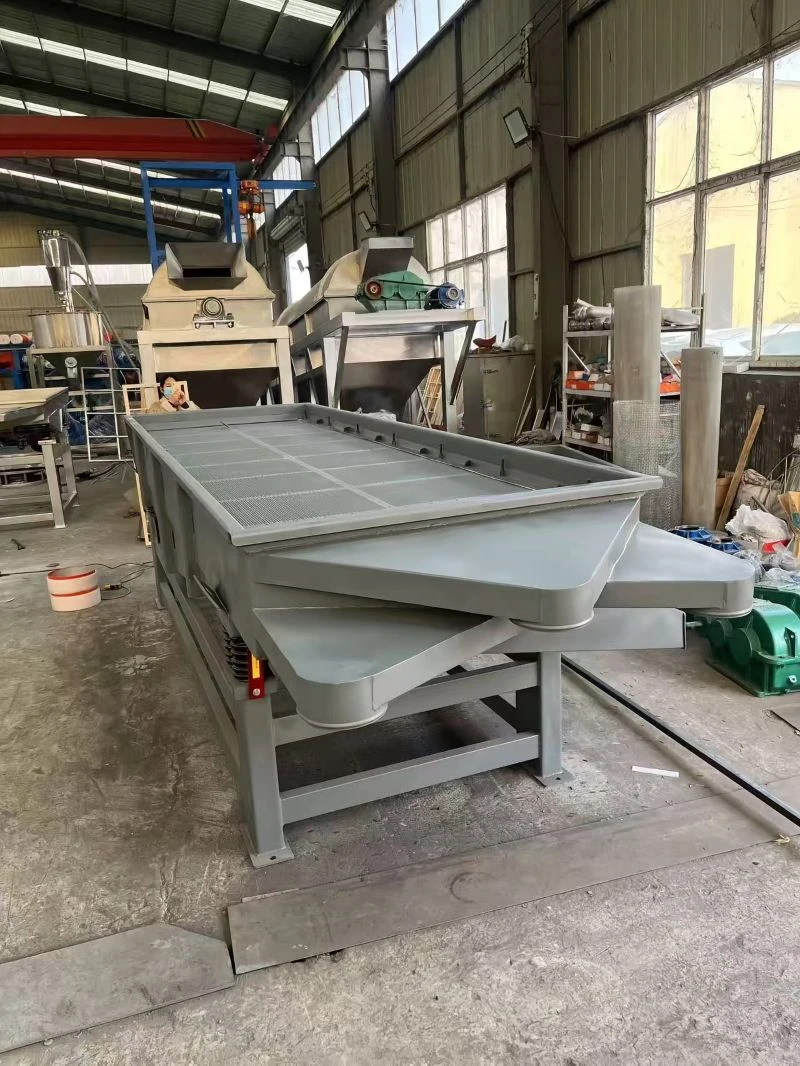

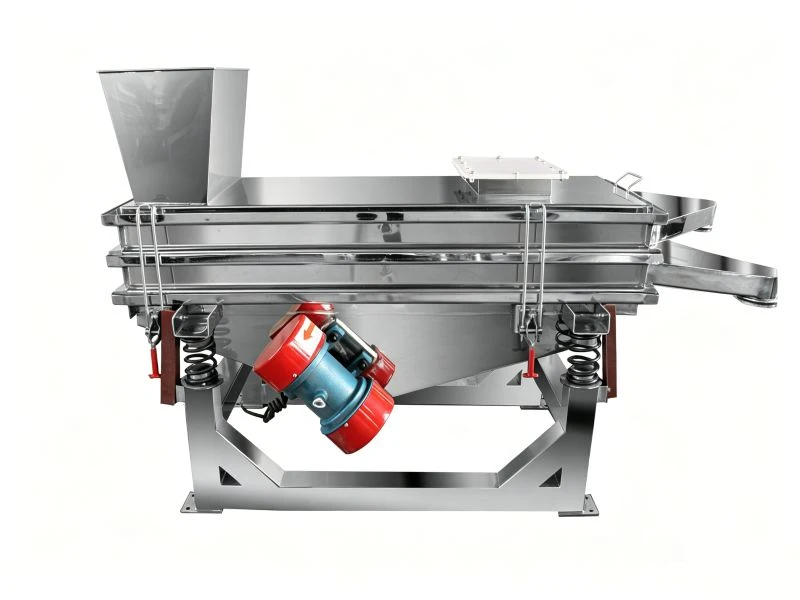

Linear Vibrating Sieving Machine

Linear vibrating sieving machines are commonly used for large-capacity screening and grading. Materials move forward in a straight line, making the machine suitable for bulk processing and coarse separation.

Features: Large handling capacity, Continuous discharge, Simple maintenance, Suitable for larger particle sizes

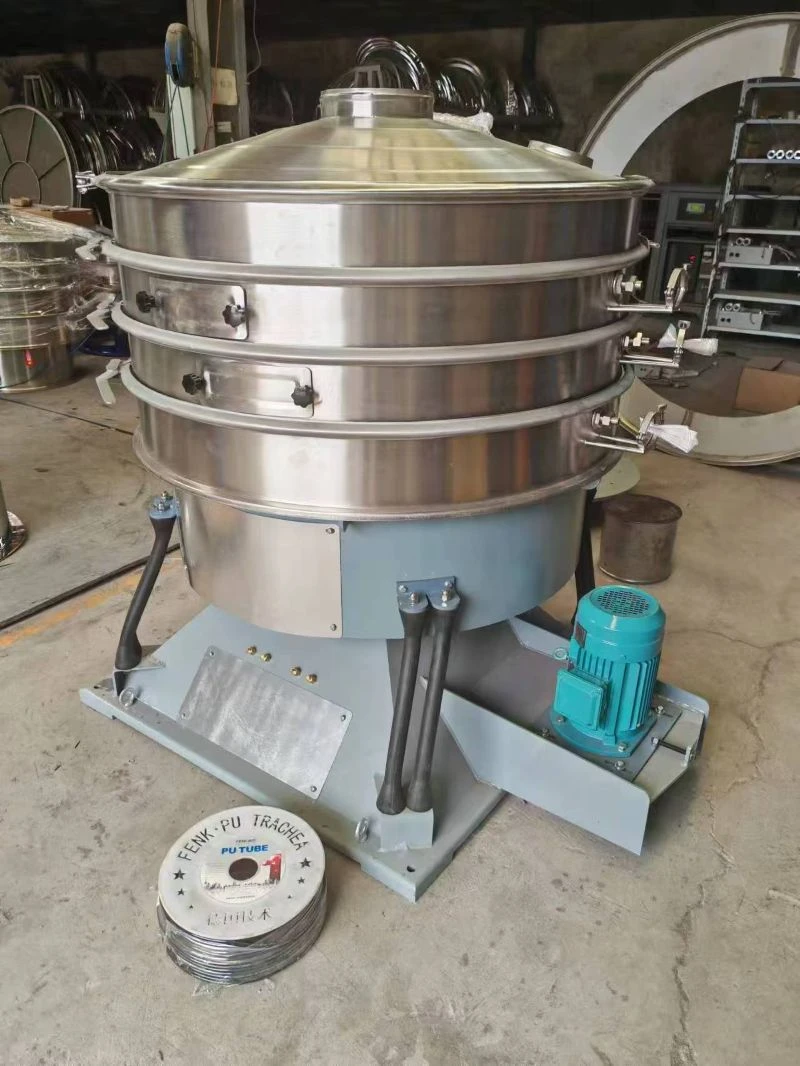

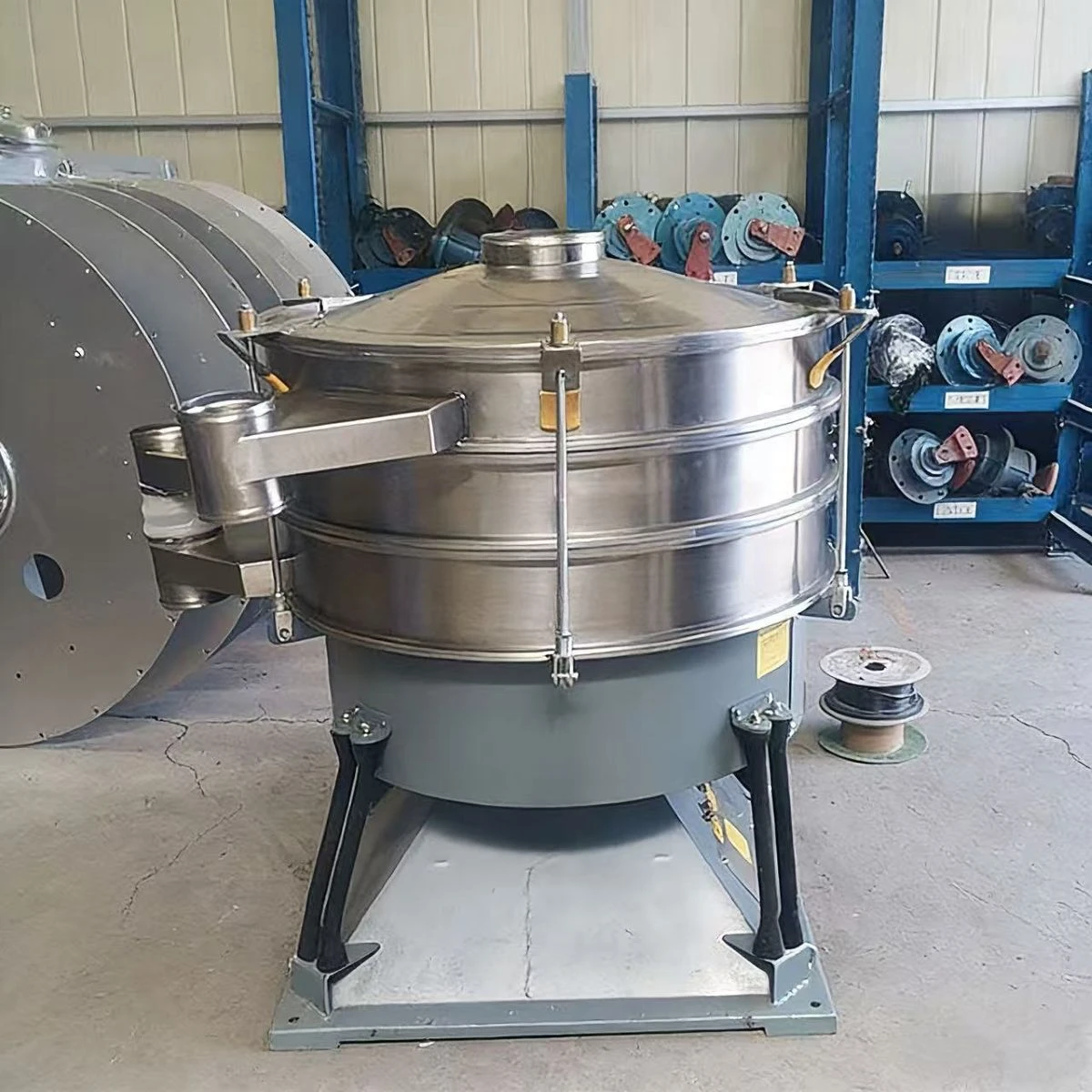

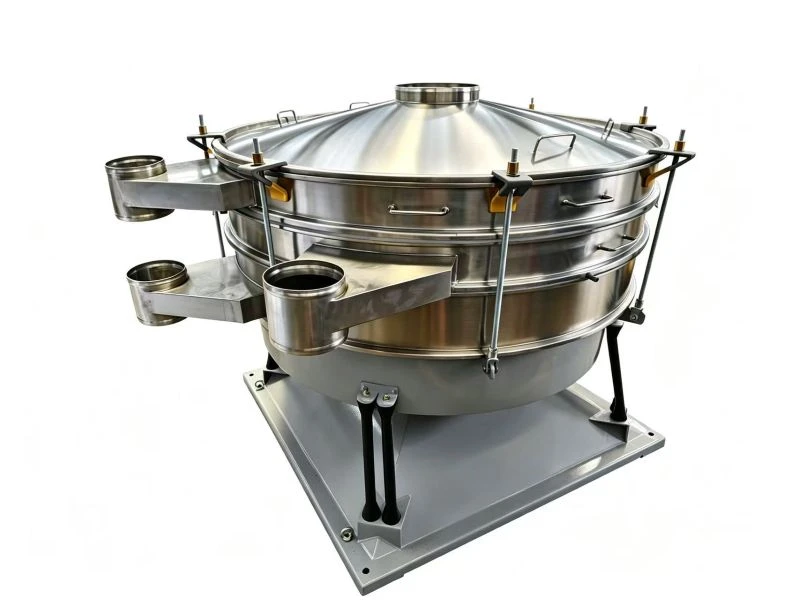

Tumbler Screening Machine

Tumbler screening machines are suitable for precision grading and high-purity separation. The screening motion is similar to manual sieving, which helps protect fragile materials and improve classification accuracy.

Features: High screening precision, Gentle material handling, Low material damage, Effective fine particle separation

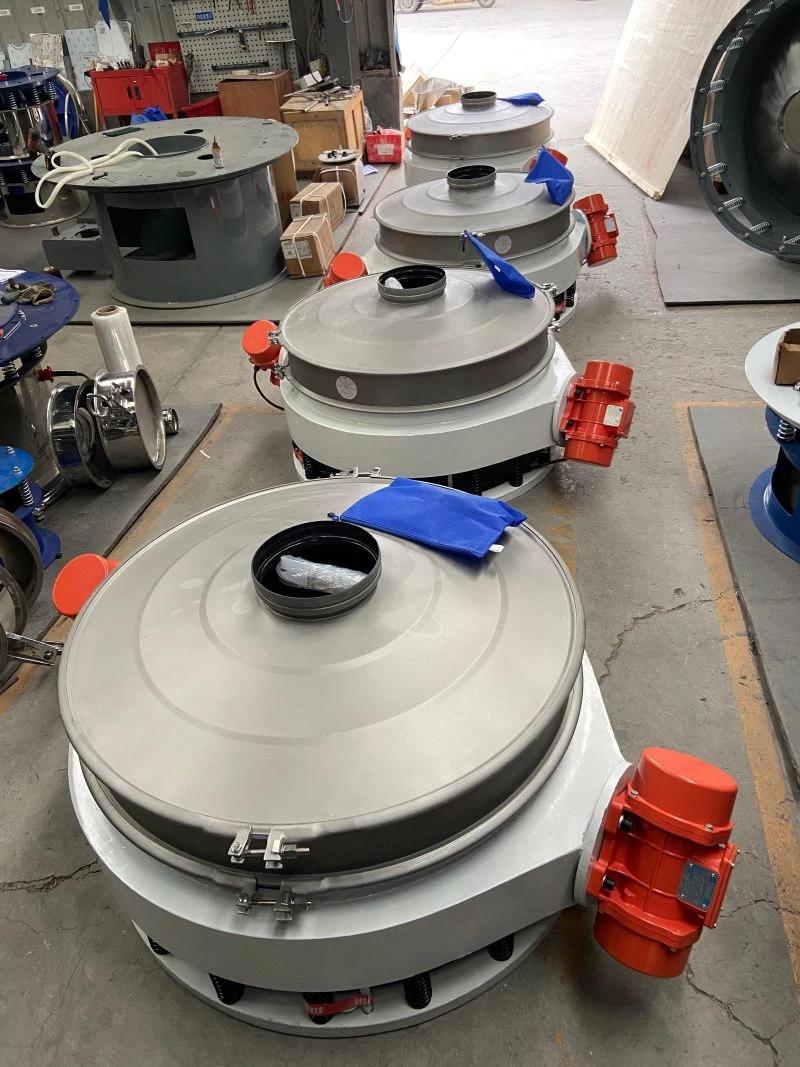

Inline vibratory screening machine

Inline vibratory screen machines are designed for rapid screening and impurity removal. The straight-through discharge structure is suitable for production lines requiring fast material flow.

Features: Large discharge outlet, High processing efficiency, Compact installation, Easy integration into production lines

Advantages

Vibrating sieving machines are designed for separating, grading, and filtering materials by particle size in continuous production processes. Their performance depends on stability, screening precision, and adaptability to different materials and working conditions.

High Screening Accuracy

Stable vibration motion ensures consistent particle separation and improves product uniformity.

Custom Mesh Sizes Available

Different mesh specifications can be configured to match material size requirements.

Continuous Operation

Supports long-time running with steady throughput in industrial production lines.

Durable Structure

Built with reinforced frames and wear-resistant materials for long service life.

Low Maintenance Requirement

A simple mechanical structure reduces downtime and routine maintenance work.

Multiple Material Compatibility

Handles dry powder, granules, and some semi-wet materials depending on configuration.

Customization

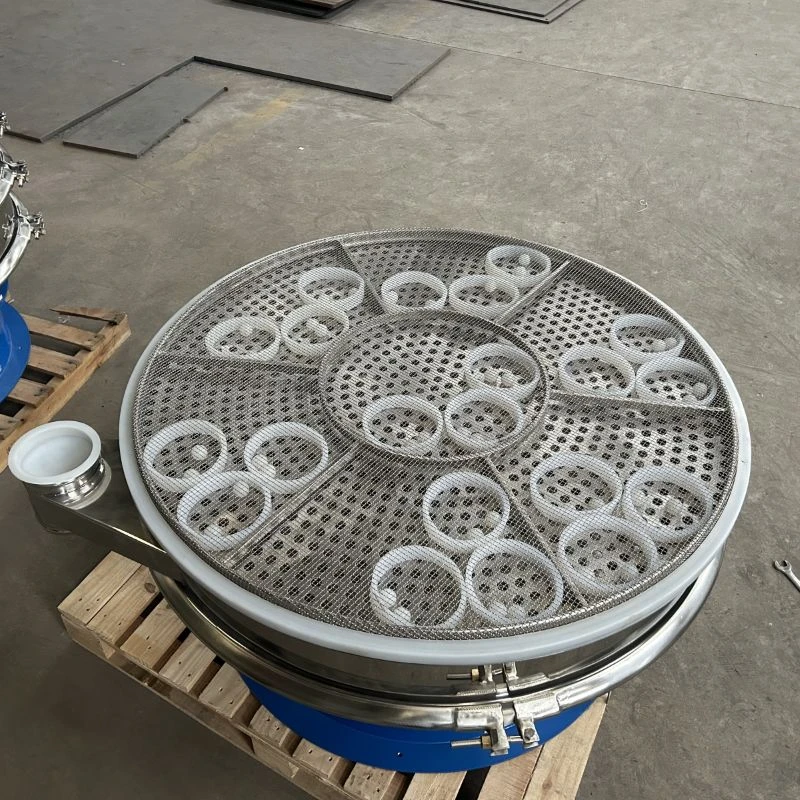

Bouncing Ball

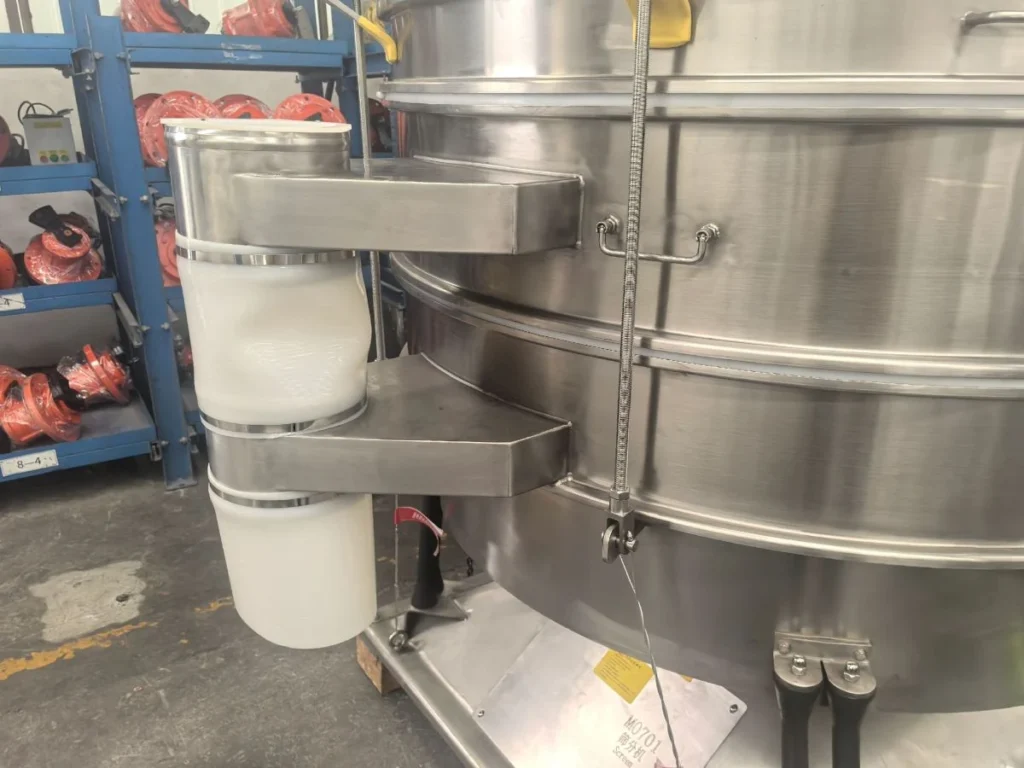

Discharge Port

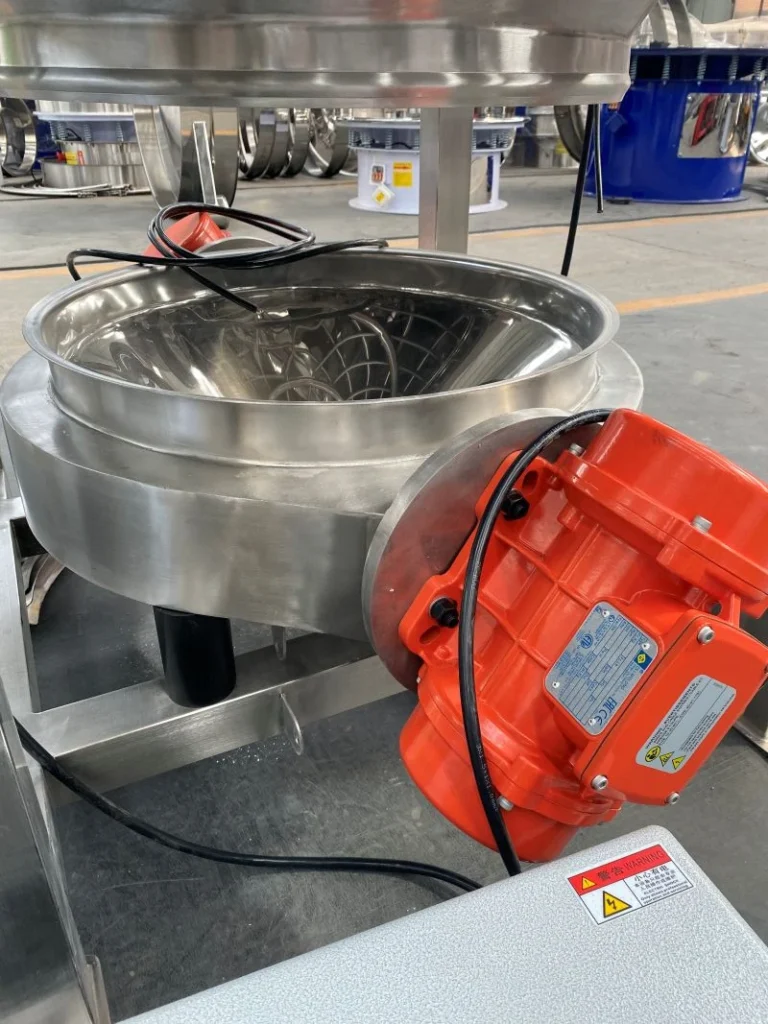

Motor

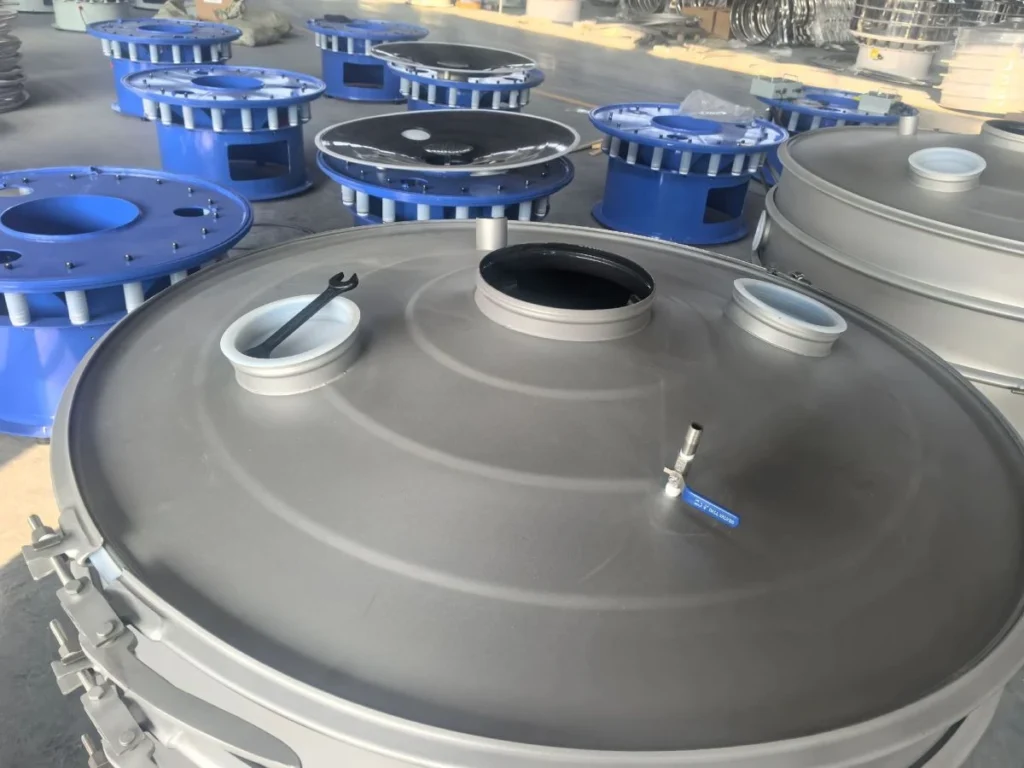

Observation Port

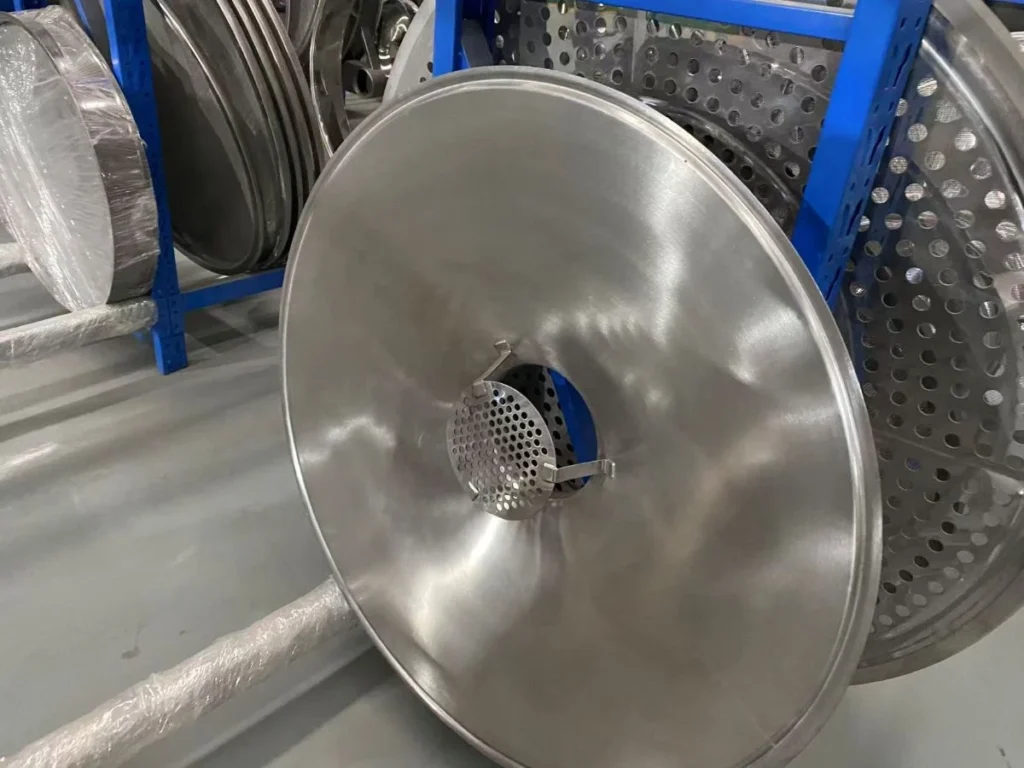

Top Cover

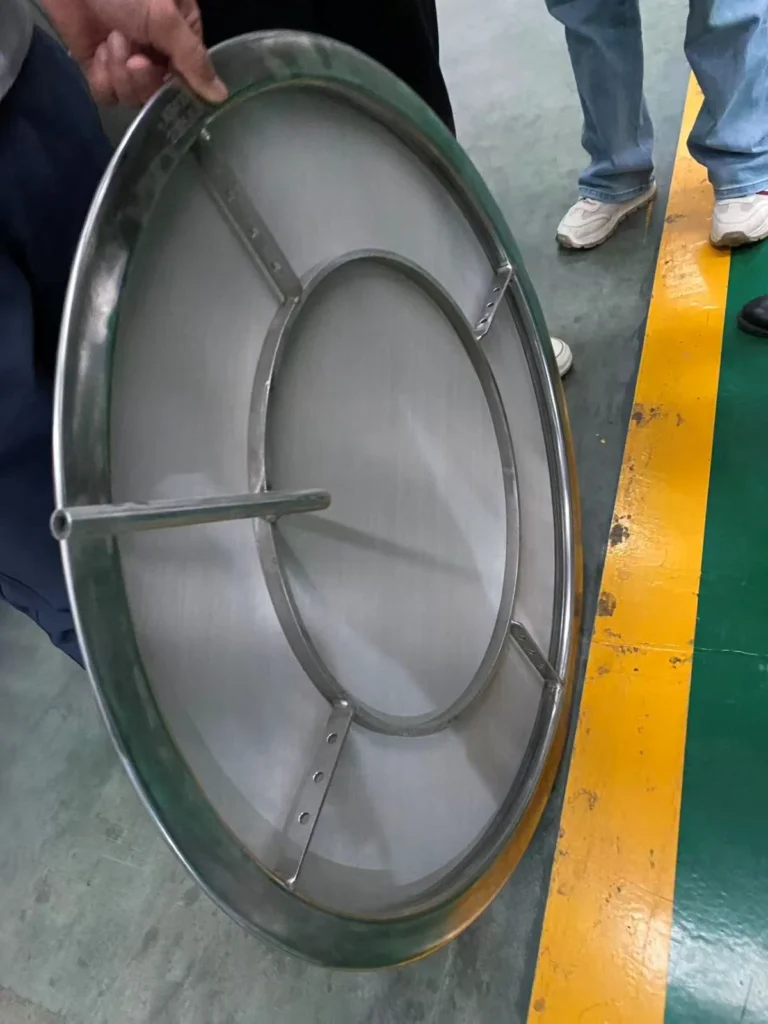

Ultrasonic Frame

Technical Specifications of Vibrating Sieving Machine

Below is a realistic specification table commonly used in industrial vibrating sieving machines (rotary vibro sifter / circular vibrating screen type). Values reflect typical engineering standards across food, chemical, pharmaceutical, and mineral industries.

Machines under 800 mm in diameter are typically used for laboratory or small batch production.
1000–1500 mm models are the most widely used in industrial production lines.
For fine powder below 200 mesh, ultrasonic systems are often required to prevent mesh clogging.
In the food and pharmaceutical industries, SUS316L stainless steel + polished finish is the standard requirement.
Multi-layer designs improve efficiency but require more stable feeding control to avoid overload.

Parameter	Typical Range	Notes
Screen Diameter	400 – 2000 mm	600 / 800 / 1000 mm most common
Layers	1 – 3 layers	Industrial standard configuration
Mesh Size	2 – 500 mesh	Fine powder up to 600 mesh with ultrasonic system
Capacity	50 – 5000 kg/h	Depends on material and mesh size
Motor Power	0.18 – 4.0 kW	Larger size requires higher power
Material	SUS304 / SUS316L	SUS316L for food & pharma grade
Voltage	110–480V	Customizable by region
Accuracy	85% – 95%	Fine powder up to 600 mesh with an ultrasonic system

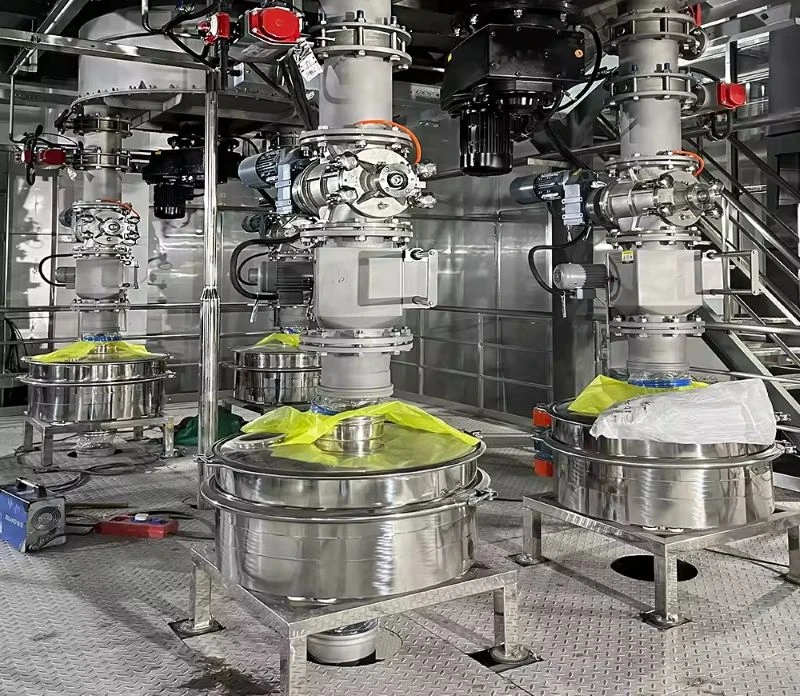

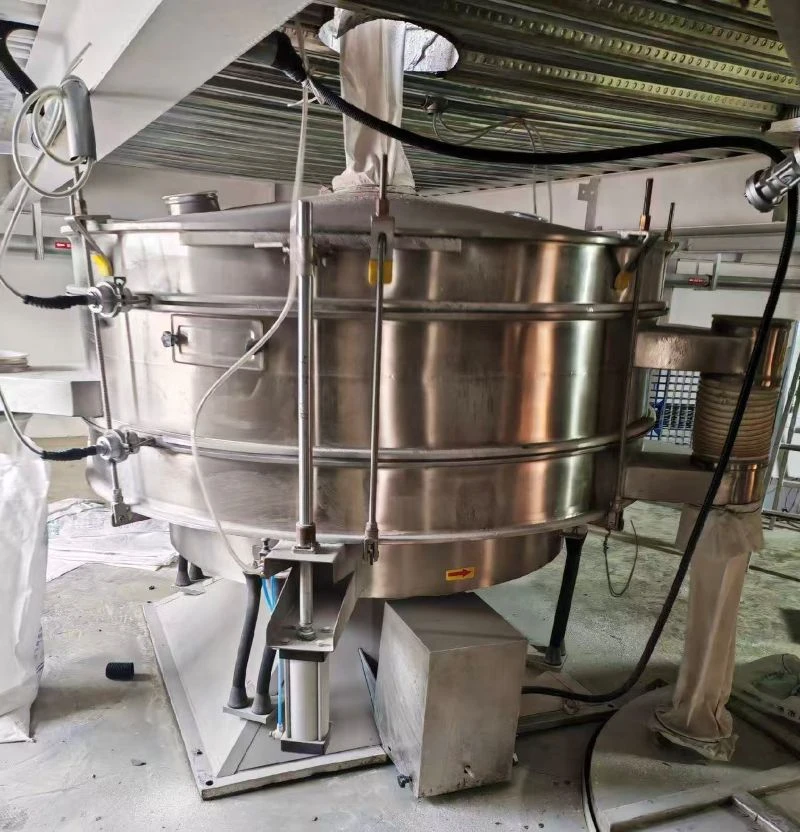

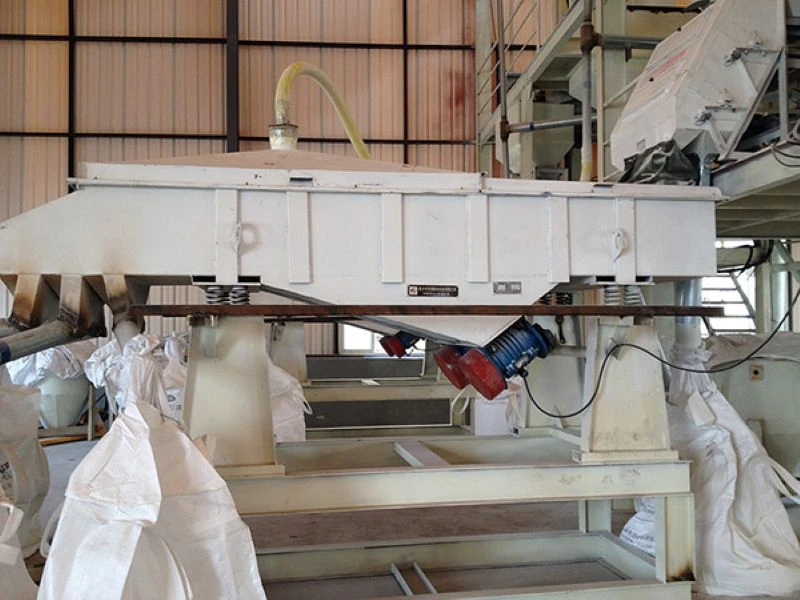

Application cases of different vibrating screens

Vibrating sieving machines are widely used in industries such as food, pharmaceuticals, chemicals, and agriculture for efficiently screening and grading materials including sesame seeds, starch, pepper powder, desiccated coconut, and microcrystalline cellulose.

Common Screening Problems and Solutions for Vibrating Screens

Screen Clogging

Fine materials such as flour, starch, milk powder, and chemical additives frequently cause screen clogging during continuous vibrating screen operation, reducing output and accuracy.

Causes: High moisture content, static electricity, and particle size close to the mesh size.

Solutions: Ultrasonic vibrating screen for ultrafine powder screening; Anti-clogging cleaning device (rubber balls or ultrasonic system); Selecting appropriate mesh size based on particle distribution; Pre-drying or improving material dispersion before feeding.

Low Screening Efficiency

Low capacity of vibrating screen equipment is usually caused by improper machine selection or unstable feeding conditions, especially on continuous production lines.

Causes: These include uneven material distribution, insufficient vibration force, or feed overload.

Solutions:

Use a rotary vibrating screen for fine powder classification.

Adjust the angle and amplitude of the vibrating motor to achieve a stable flow.

Control the feed rate to match the screening capacity.

Powder Leakage

Powder leakage is a common problem in food-grade and pharmaceutical vibrating screen applications, directly affecting product purity and yield.

Causes: Worn seals, loose screen frame, or improper assembly.

Solutions: Fully sealed stainless steel vibrating screen structure; Regularly replace seals and gaskets; Precision locking system for screen frame installation.

Uneven Material Flow

Uneven material distribution on the screen surface leads to unstable particle classification and reduced screening accuracy during powder separation.

Causes: Inhomogeneous feeding or incorrect vibration trajectory.

Solutions: Linear vibrating screen for uniform material movement; Material distributor to control feed direction; Optimize vibration angle and screening path.

Vibrating Screen and Conveyor Machine Manufacturer & Supplier

Built for precision screening, reliable performance, and flexible industrial applications,
Yuanjing rotary vibrating screens are trusted by customers worldwide.

Global Project Experience

Yuanjing products are exported to 50+ countries and regions, serving industries including food, chemicals, pharmaceuticals, mining, and new energy.

Strong Manufacturing Capability

Advanced production lines with laser cutting, CNC machining, automatic welding, and strict quality inspection ensure consistent product quality.

Accurate & Stable Separation

Optimized vibration design delivers even material flow, high screening accuracy, and stable long-term operation.

Customized Screening Solutions

Yuanjing offers flexible configurations in diameter, mesh size, deck layers, and material options to fit your exact process requirements.

FAQs

It is used for powder screening, particle separation, impurity removal, and grading of materials such as flour, chemicals, metal powder, and pharmaceuticals in industrial production lines.

A rotary vibrating sieve is used for fine powder screening and high precision separation, while a linear vibrating screen is better for large capacity and coarse particle grading.

Mesh size should be selected based on target particle size, material flowability, and required separation accuracy. Laboratory testing is often used before final selection.

It can handle dry powders, granules, and some liquid slurries, including food powders, resin, pigments, metal powders, and mineral materials.

Yes, but for ultra-fine powders like milk powder or pharmaceutical API, an ultrasonic vibrating sieve machine or anti-blocking system is recommended to prevent mesh clogging.

Yes, food-grade and pharmaceutical-grade vibrating sieve machines are made of stainless steel (304 or 316L) with a sealed design to meet hygiene and safety standards.

Get Custom Solution

We can provide customised screening and conveying equipment solutions tailored to different materials and production requirements.

Send us your requirements, and our team will provide the right solution and a fast quotation within 24 hours.
