High-Precision Tumbler Screen for Industrial Application
A tumbler screen is a high-precision screening solution for fine, fragile, and irregular materials. Simulating manual sieving motion ensures efficient classification while minimizing material damage and dust. Widely used in food, chemical, pharmaceutical, and mineral industries, it delivers consistent quality and high throughput. Designed for durability and performance, it supports multi-deck separation, customizable mesh sizes, and low-noise operation, making it ideal for precise grading, impurity removal, and particle size control in both ultra-fine and large-capacity processing applications.

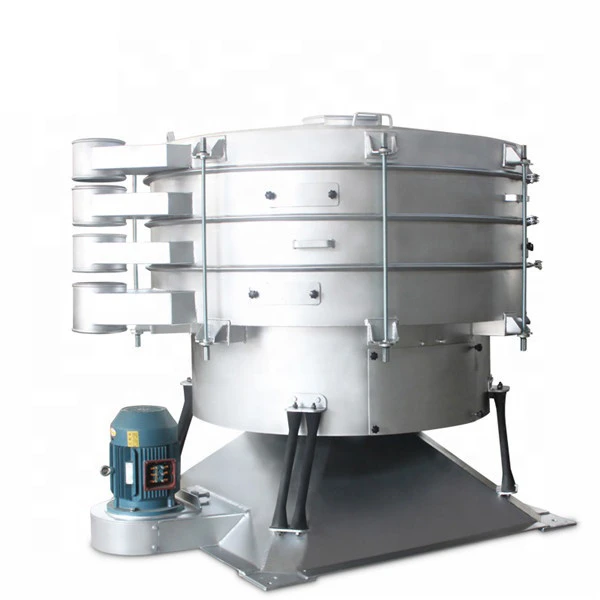

What is a Tumbler Screen?
A Tumbler Screen is a high-precision industrial sieve machine that uses gentle gyratory motion to efficiently separate fine materials, improving accuracy, throughput, and product quality across various industrial applications.

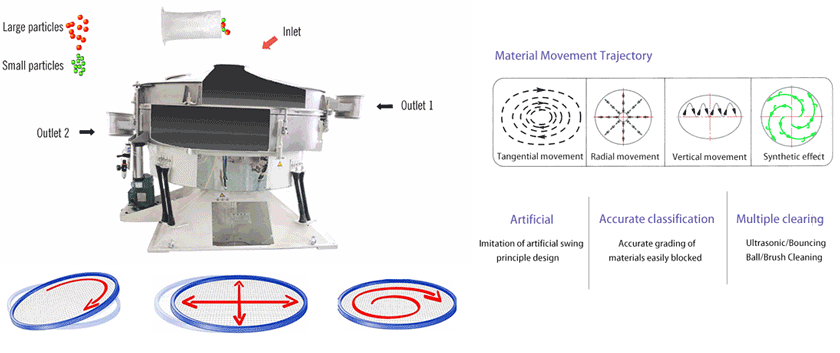

Working Principle
The tumbler screen works by generating a 3D tumbling motion that mimics manual sieving. This process ensures high screening accuracy and minimal material breakage.
- The motor drives the machine to produce circular and elliptical movements
- Material spreads evenly across the screen surface
- Fine particles pass through the mesh
- Oversized particles move outward and are discharged

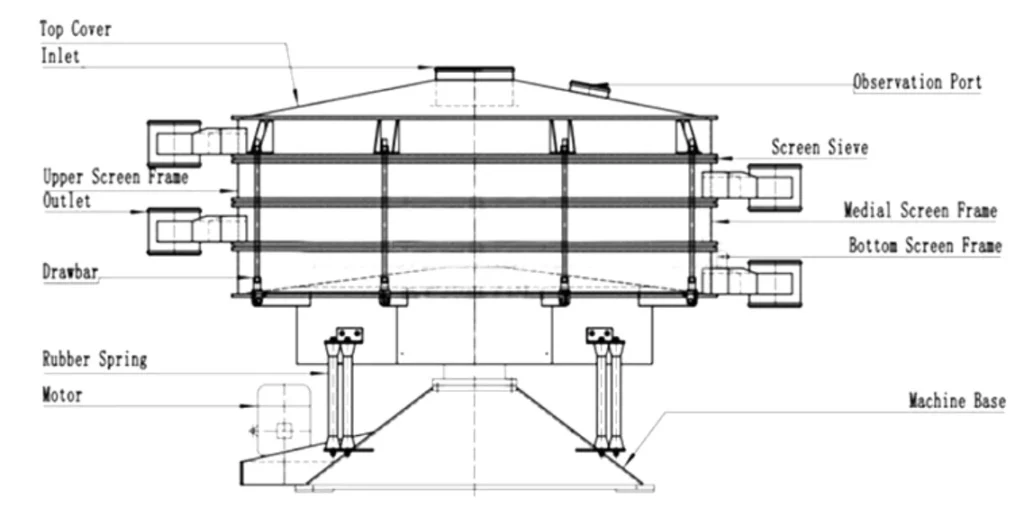

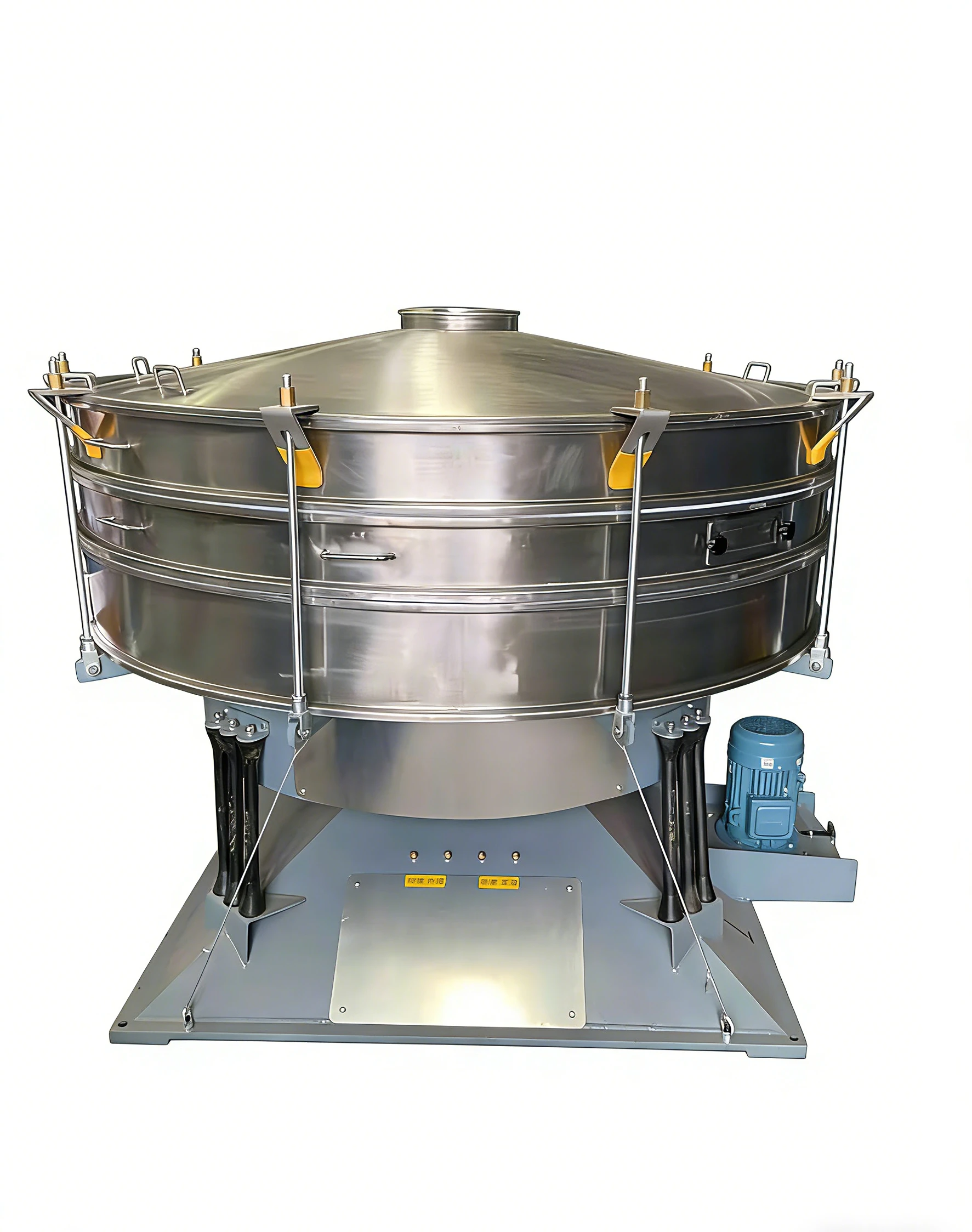

Parts of the Tumbler Screen
High-precision vibrating sieving machine delivers gentle, efficient, low-wear particle separation with flexible cleaning systems for consistent, high-quality processing.
- Gentle Sieving Motion
Simulated manual screening via belt-driven transmission ensures smooth, low-impact operation without damaging material properties. - High Efficiency & Accuracy
Optimized screen design increases residence time and screening area, achieving 1–5× higher efficiency and up to 99% accuracy. - Low Wear & Long Service Life
Low-frequency, low-acceleration operation reduces mesh wear, extends component lifespan, and lowers maintenance costs. - Flexible Cleaning Systems
Optional ball, brush, or ultrasonic cleaning devices prevent clogging and ensure continuous, stable performance.

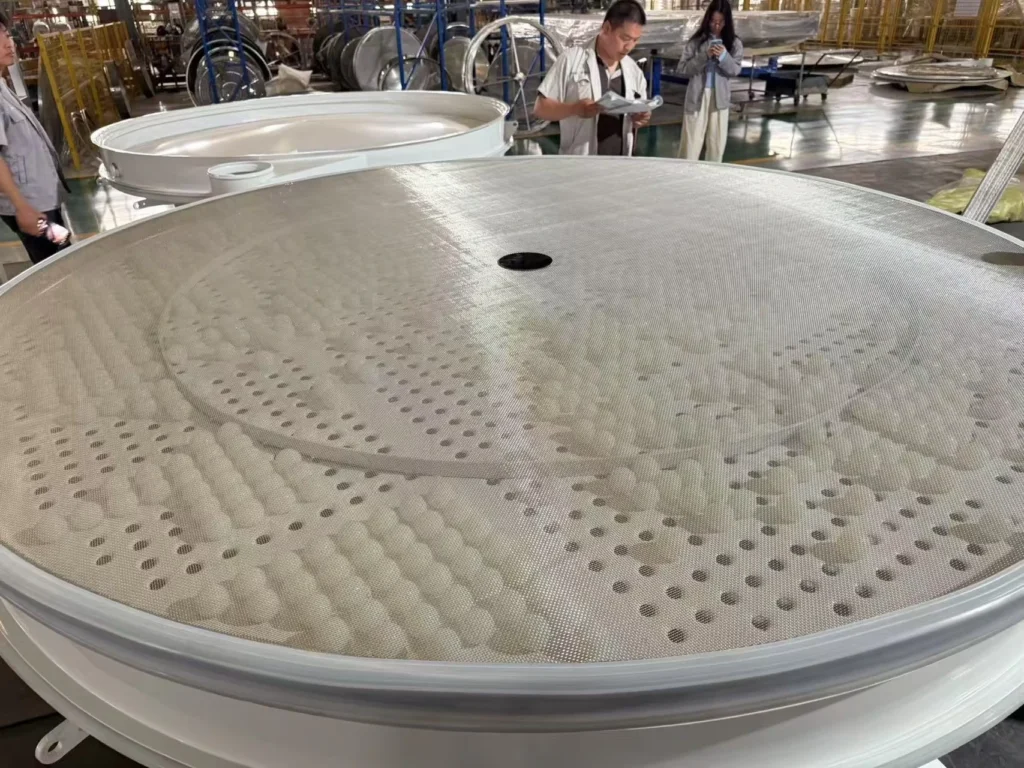

Bouncing ball grid

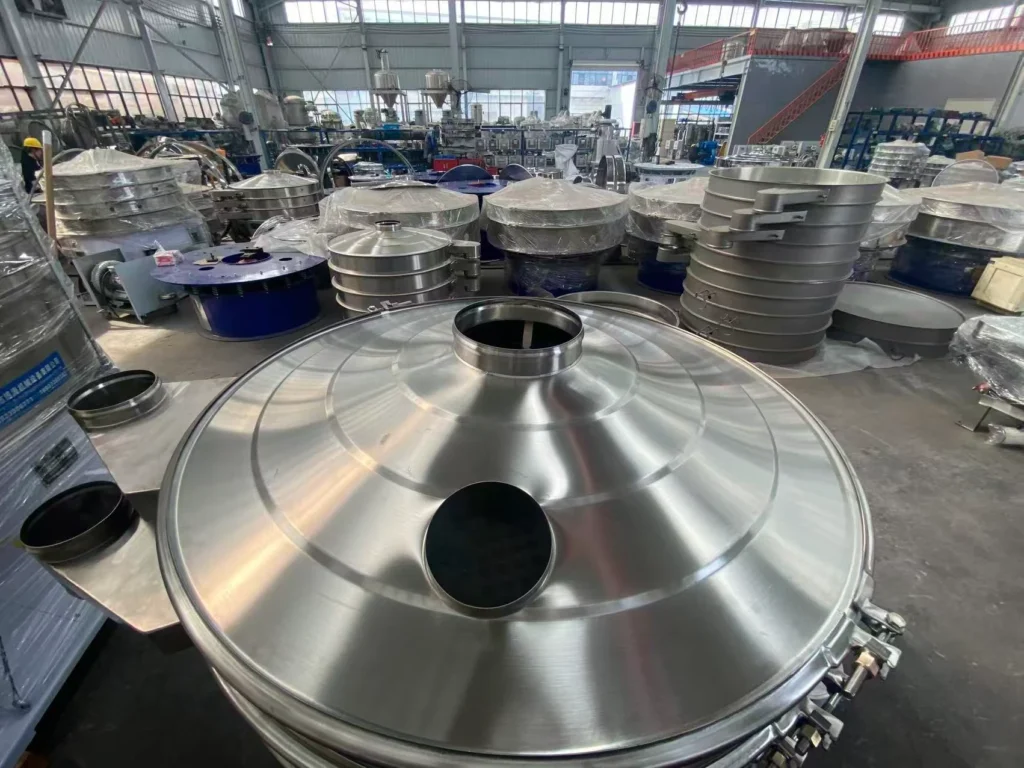

Viewport

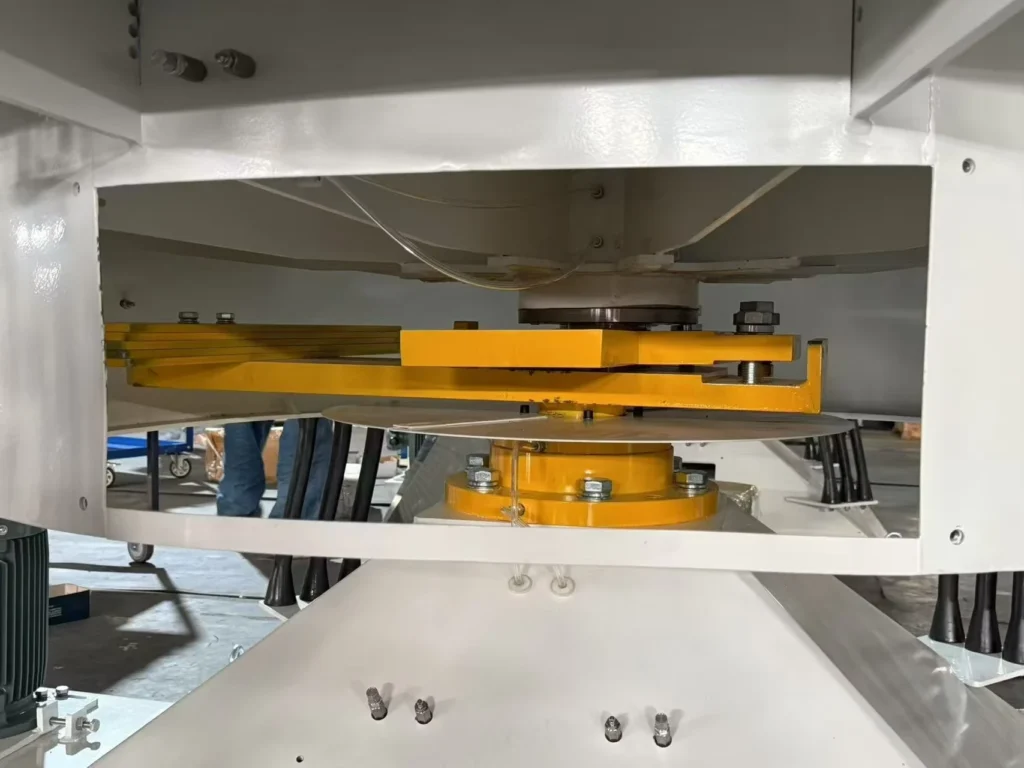

Eccentric block

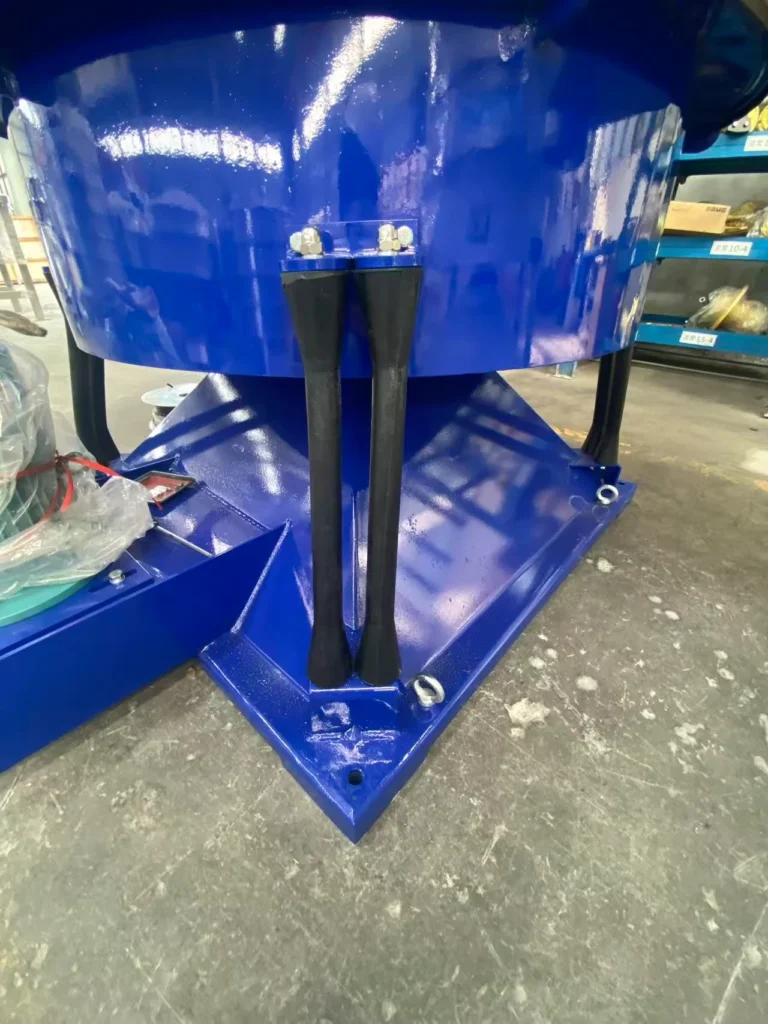

Spring

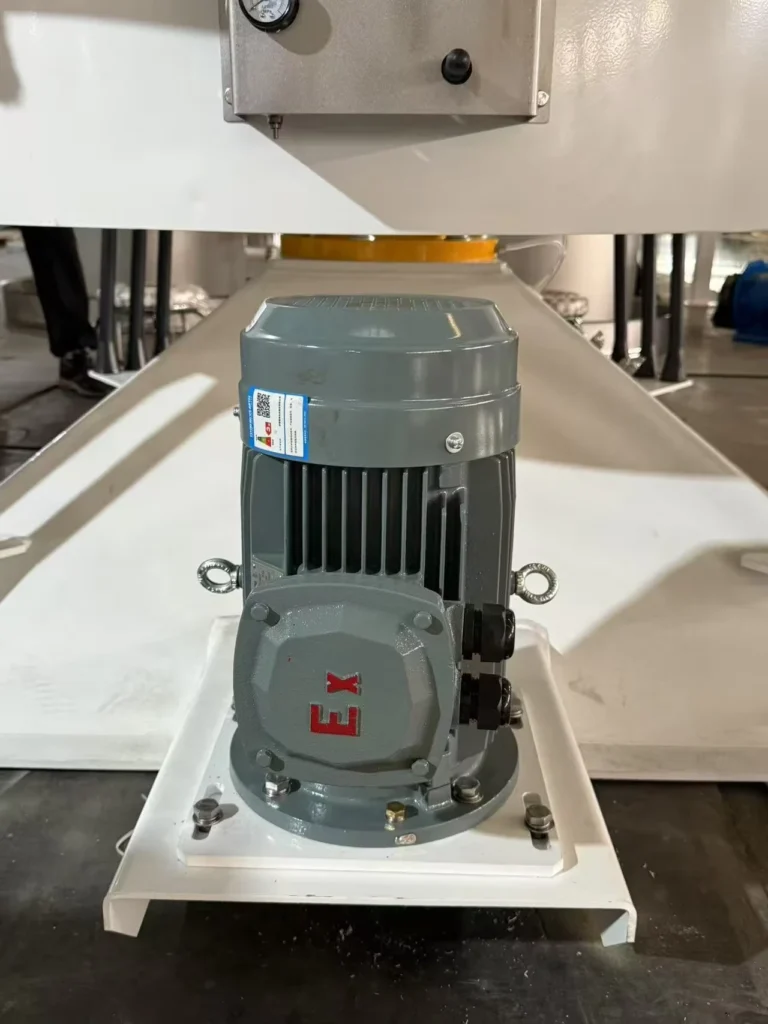

Explosion-proof motor

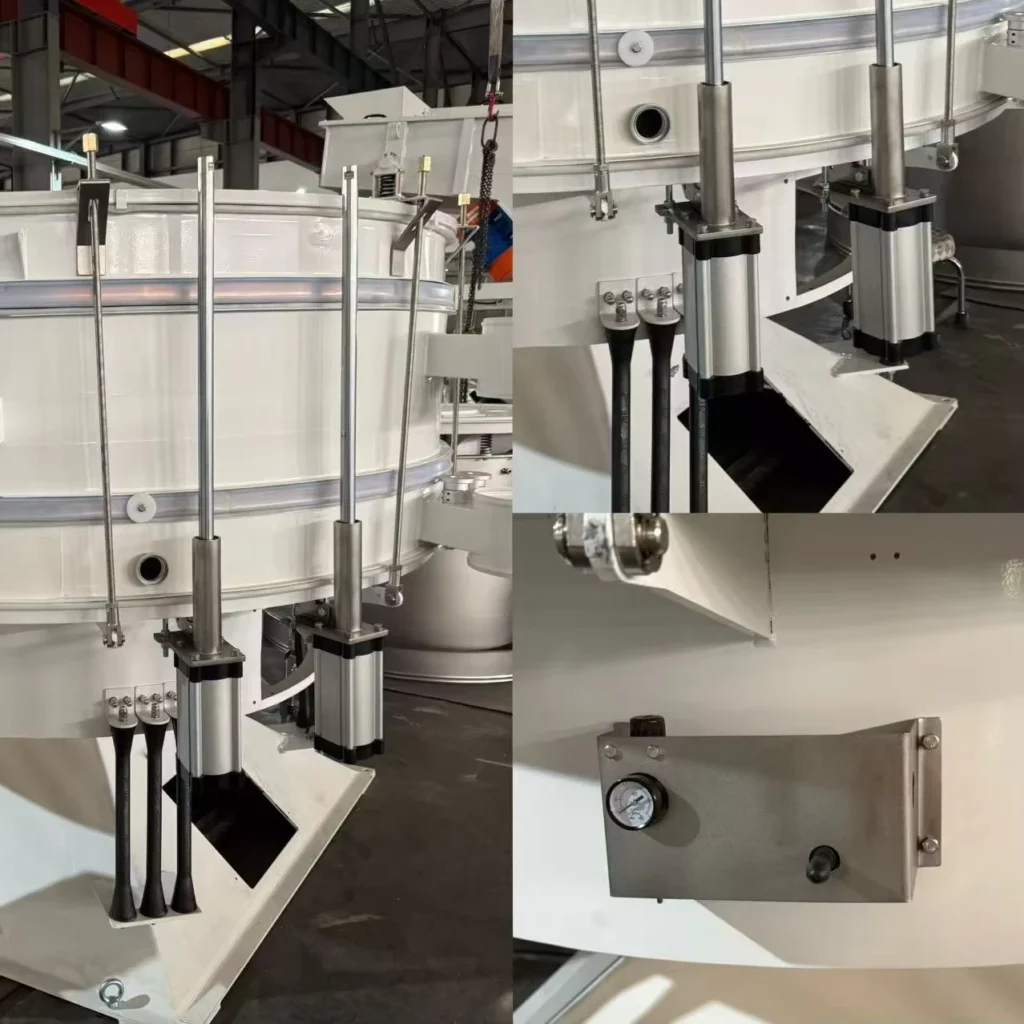

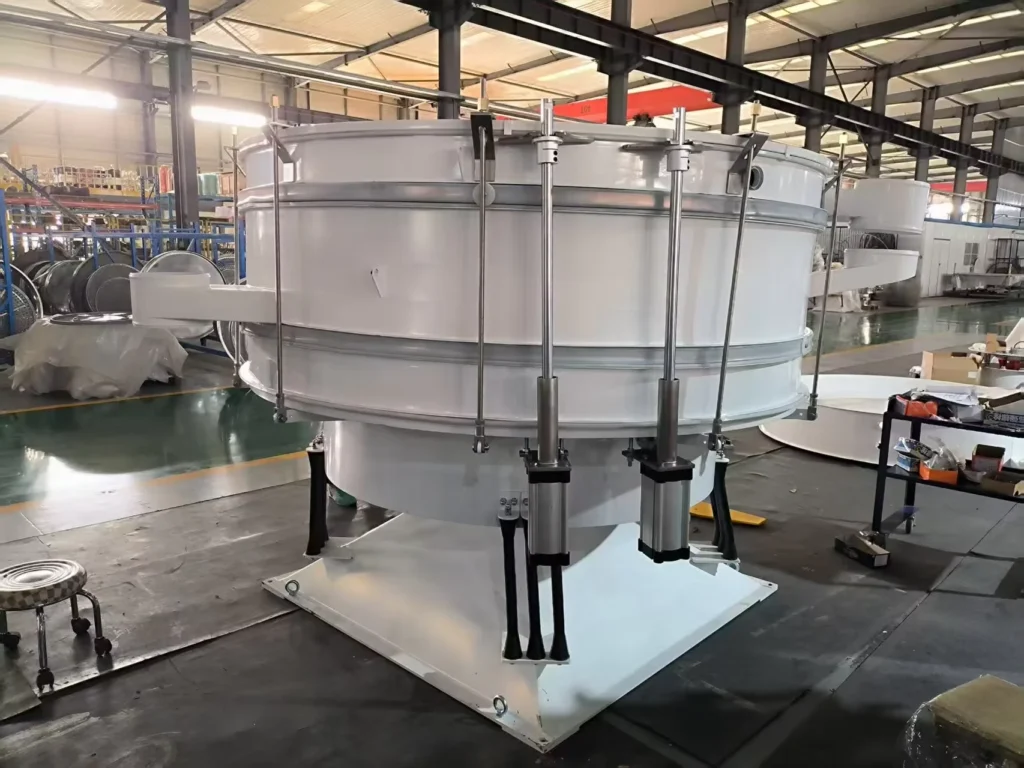

Cylinder lifting
Features of Tumbler Screen
Engineered for precision and efficiency, the Tumbler Screen integrates gentle
gyratory motion with optimized structural design to deliver high-capacity, low-noise, and high-accuracy particle separation.
High-Efficiency Gyratory Motion
Mimics manual sieving with continuous gyratory movement, keeping material in contact with the mesh for over 85% of the cycle and achieving >95% screening efficiency.
Large Capacity & Flexible Sizes
Available in diameters from 600 to 2600 mm, delivering 5–10× higher throughput than conventional vibrating screens.

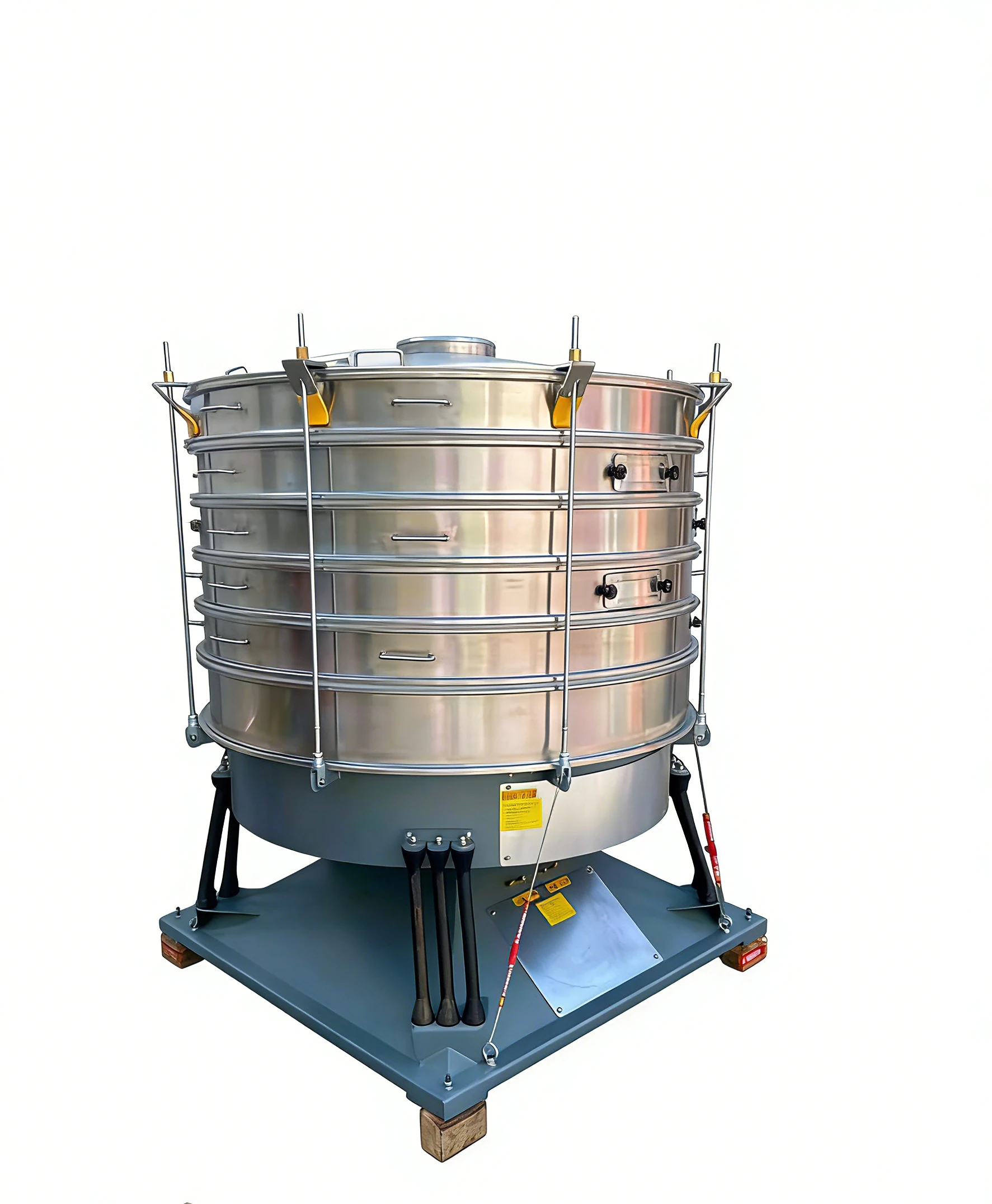

Multi-Deck Precise Separation
Supports up to 5 screen layers, enabling accurate classification into 2–6 particle size fractions in a single operation.
Low Noise & Gentle Handling
Lateral oscillation reduces noise and minimizes material impact, preserving particle integrity compared to traditional vertical vibration systems.

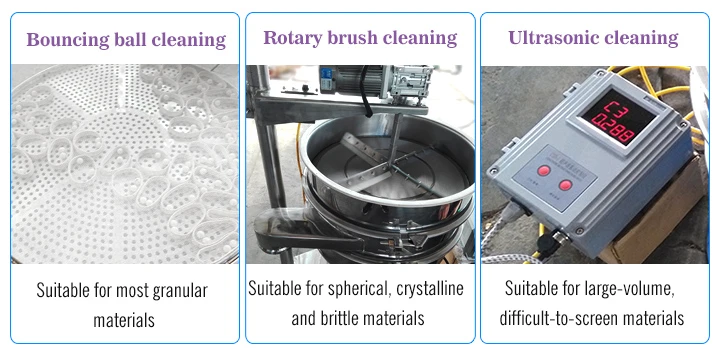

Cleaning Device Of Tumple Screen
- Bouncing Ball Cleaning: Food-grade rubber and silicone balls bounce against a perforated plate located beneath the screen, striking the metal mesh to prevent clogging of the screen apertures. This method is suitable for most granular materials.
- Rotary Brush Cleaning: A rotary brush, driven by a geared reducer mounted on the base plate, rotates beneath the screen to sweep and clean the mesh, thereby clearing the material. This method is suitable for screening spherical, crystalline, and brittle materials.
- Ultrasonic Cleaning: High-frequency ultrasonic waves are transmitted directly to the screen mesh; Ultrasonic Vibrating Sieve not only cleans the mesh but also significantly enhances production efficiency. It is suitable for most fine, high-volume, and difficult-to-screen materials.
Technical Specifications
Custom sizes and configurations are available upon request.
| Model | Screen Diameter (mm) | Deck | Capacity (kg/h) | Power (kW) |
| YJ-600 | 600 | 1-3 | 100–500 | 0.75 |
| YJ-1000 | 1000 | 1-4 | 500–1500 | 1.5 |
| YJ-1500 | 1500 | 1-5 | 1500–3000 | 2.2 |
| YJ-2000 | 2000 | 1-5 | 3000–5000 | 4.0 |
| YJ-2200 | 2200 | 1-5 | 5000-8000 | 5.5 |
| YJ-2600 | 2600 | 1-5 | 8000-10000 | 5.5/7.5 |
Comparison: Tumbler Screen vs. Vibrating Screen
| Tumbler Screen | Vibrating Screen | |
| Motion Type | Elliptical tumbling motion (simulates manual sieving) | High-frequency vibration |
| Material Handling | Gentle handling, no damage to materials | May damage fragile materials |
| Screening Accuracy | Up to 95% | 50%–95% (depending on material) |
| Screen Wear | No bouncing, low wear | Strong impact on mesh, higher wear |
Applications
The Tumple Screen is widely used for screening, grading, and filtering powders, granules, and liquids across multiple industries, helping improve product quality, production efficiency, and process consistency.
Food & Chemical Processing
Metallurgy & Mining Materials
Recycling & Environmental Materials
Advanced & Fine Materials
Food & Chemical Processing
Ideal for screening flour, sugar, starch, milk powder, food additives, resins, plastics, pigments, fertilizers, and detergents.
Metallurgy & Mining Materials
Efficient separation of metal powders (iron, aluminum), quartz sand, silica, and mineral ores.
Recycling & Environmental Materials
Suitable for plastic recycling particles, glass powder, and various solid waste screening and classification.
Advanced & Fine Materials
Designed for high-precision screening of lithium battery materials, advanced ceramics, and nano powders.

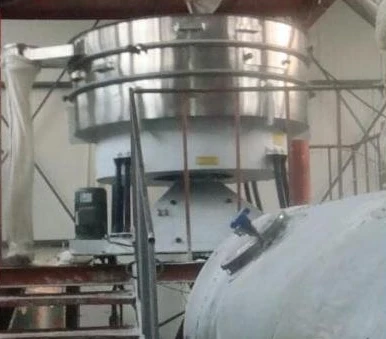

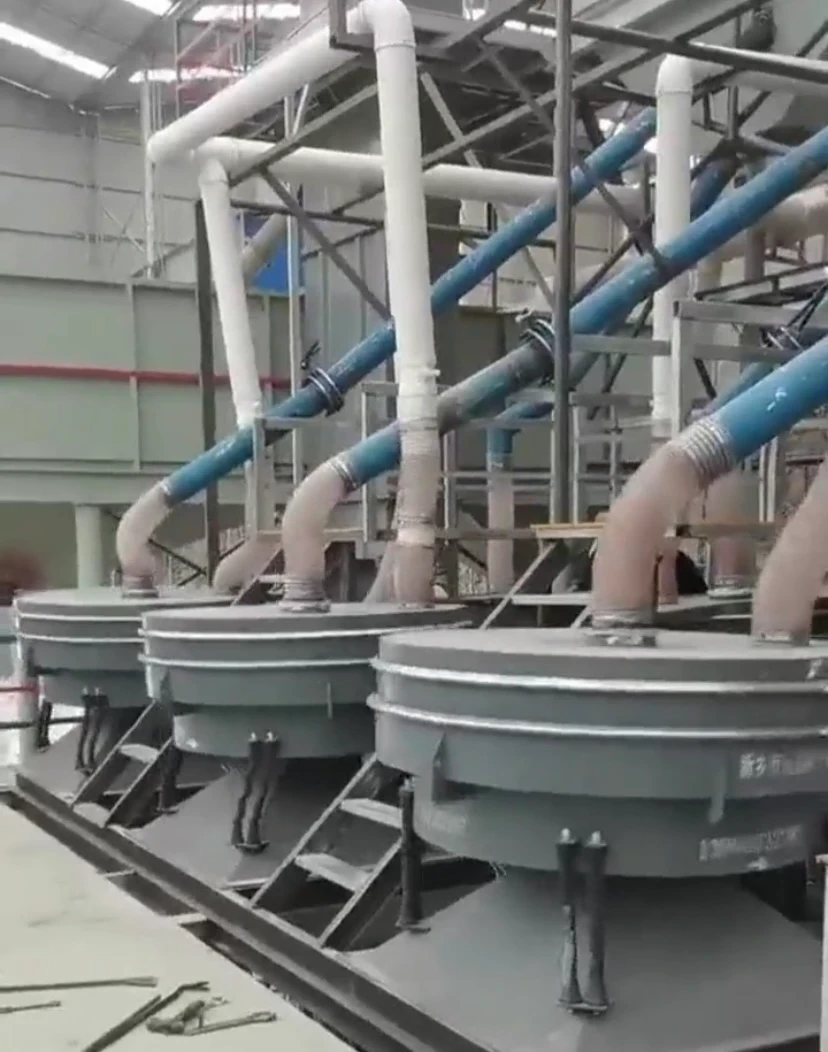

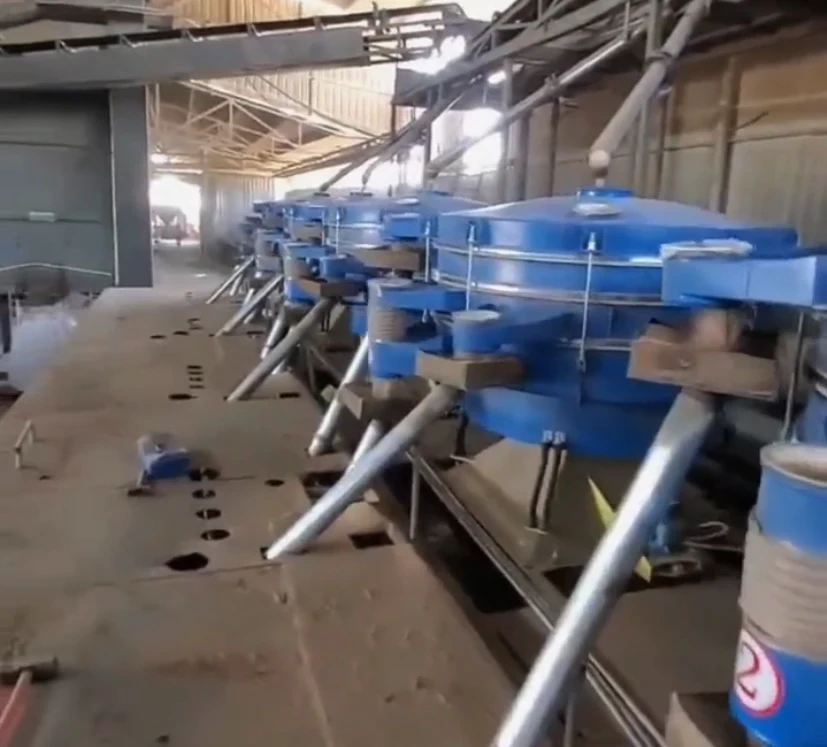

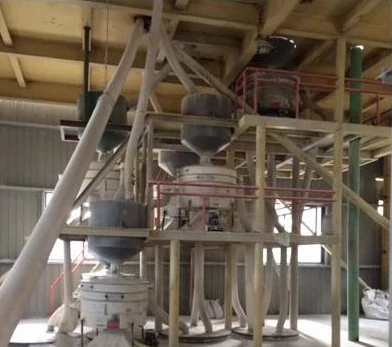

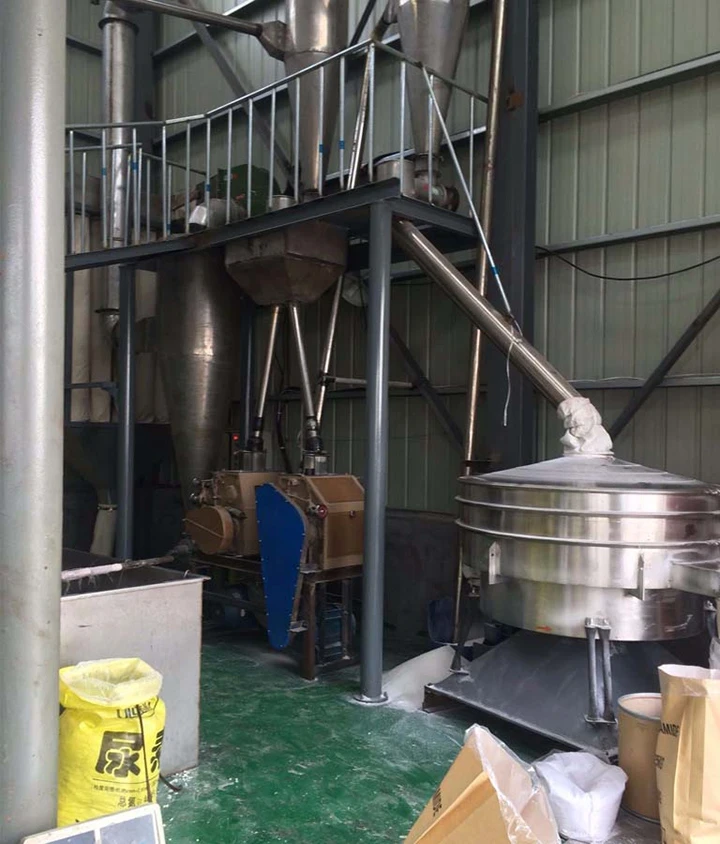

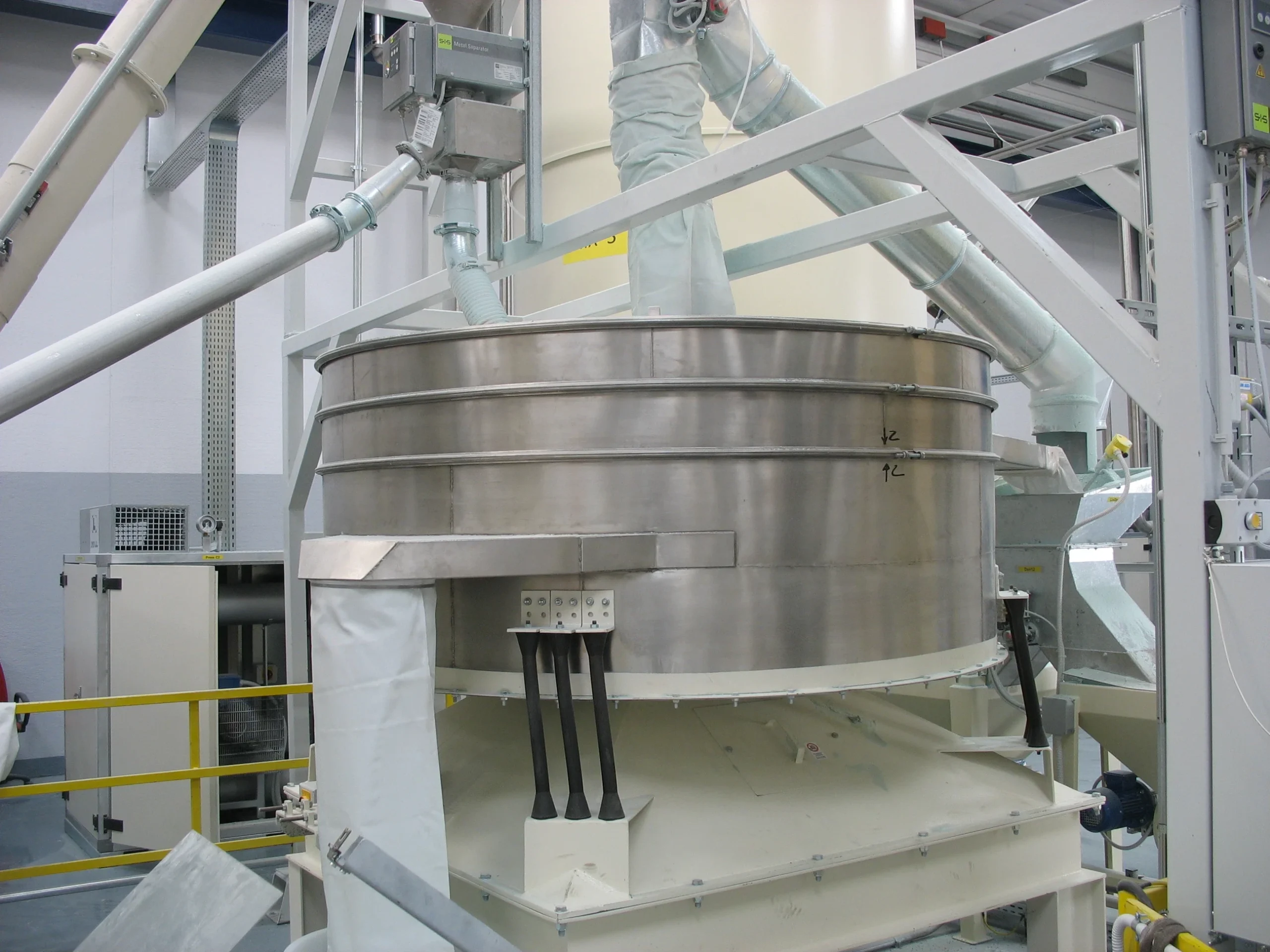

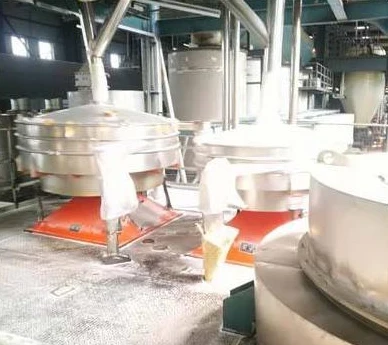

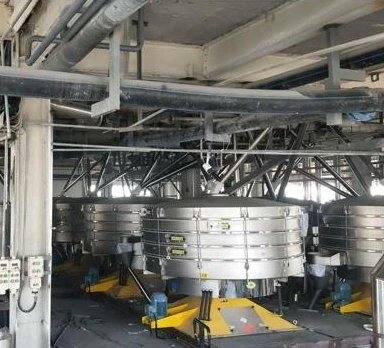

Customer site
Explore real customer on-site usage scenarios of our tumbler sieve, demonstrating stable performance, efficient material separation, and reliable operation across different industrial applications.
Why Choose Our Tumbler Screen
High Screening Efficiency
Optimized gyratory motion and balanced spring design ensure uniform material distribution, improving screening efficiency and reducing processing time.
Robust & Durable Design
High-quality components and reinforced structure deliver long service life with reduced wear and maintenance costs.
Stable & Reliable Operation
Advanced anti-tilt design enhances operational stability, ensuring consistent performance in continuous production.
Customizable Solutions & Support
Flexible configurations meet diverse material requirements, with professional installation, training, and after-sales service included.
Vibrating Screen and Conveyor Machine Manufacturer & Supplier
Built for precision screening, reliable performance, and flexible industrial applications,
Yuanjing rotary vibrating screens are trusted by customers worldwide.
Global Project Experience
Yuanjing products are exported to 50+ countries and regions, serving industries including food, chemicals, pharmaceuticals, mining, and new energy.

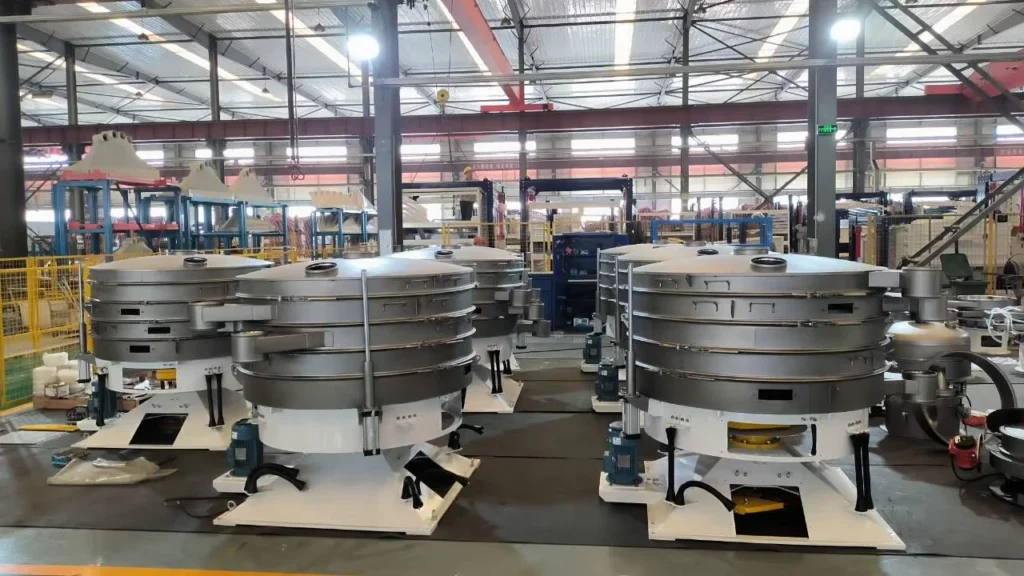

Strong Manufacturing Capability
Advanced production lines with laser cutting, CNC machining, automatic welding, and strict quality inspection ensure consistent product quality.
Accurate & Stable Separation
Optimized vibration design delivers even material flow, high screening accuracy, and stable long-term operation.
Customized Screening Solutions
Yuanjing offers flexible configurations in diameter, mesh size, deck layers, and material options to fit your exact process requirements.
