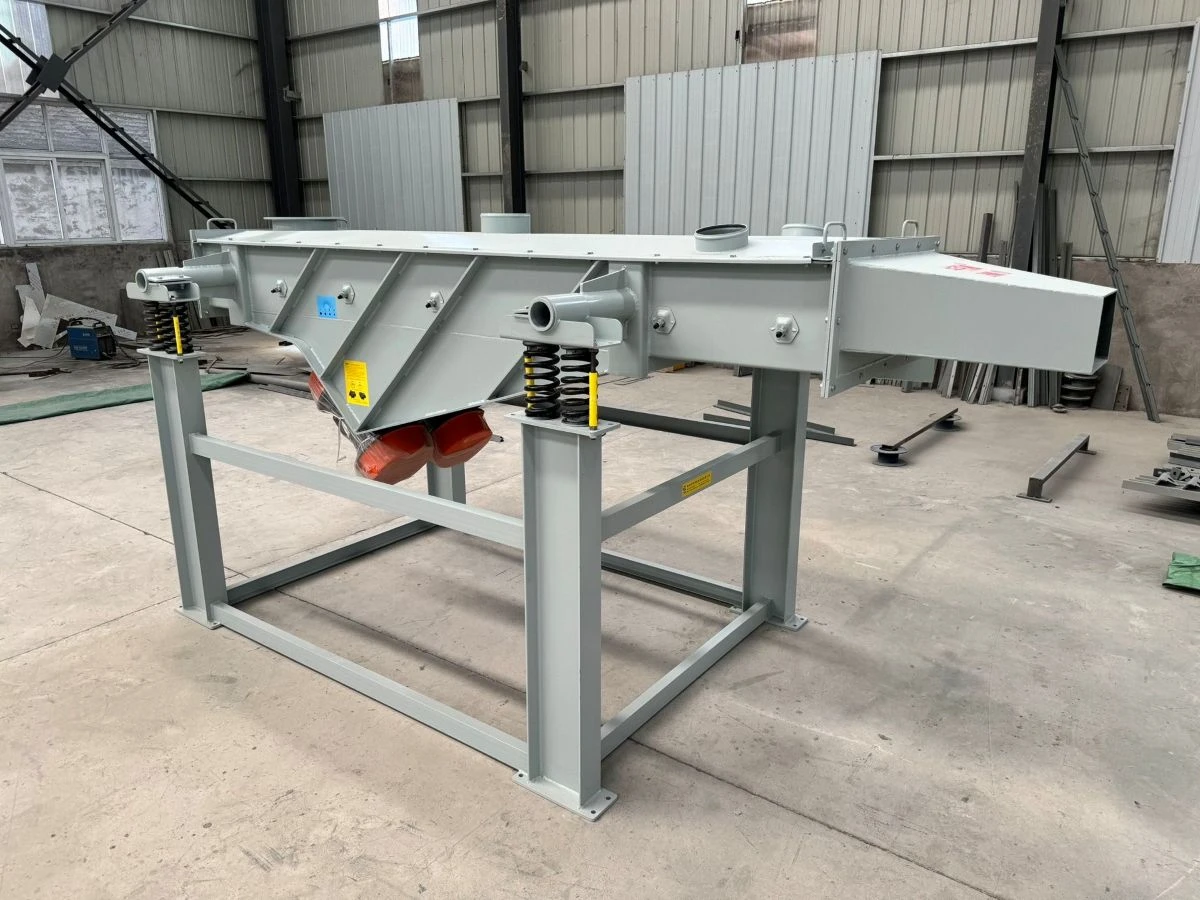

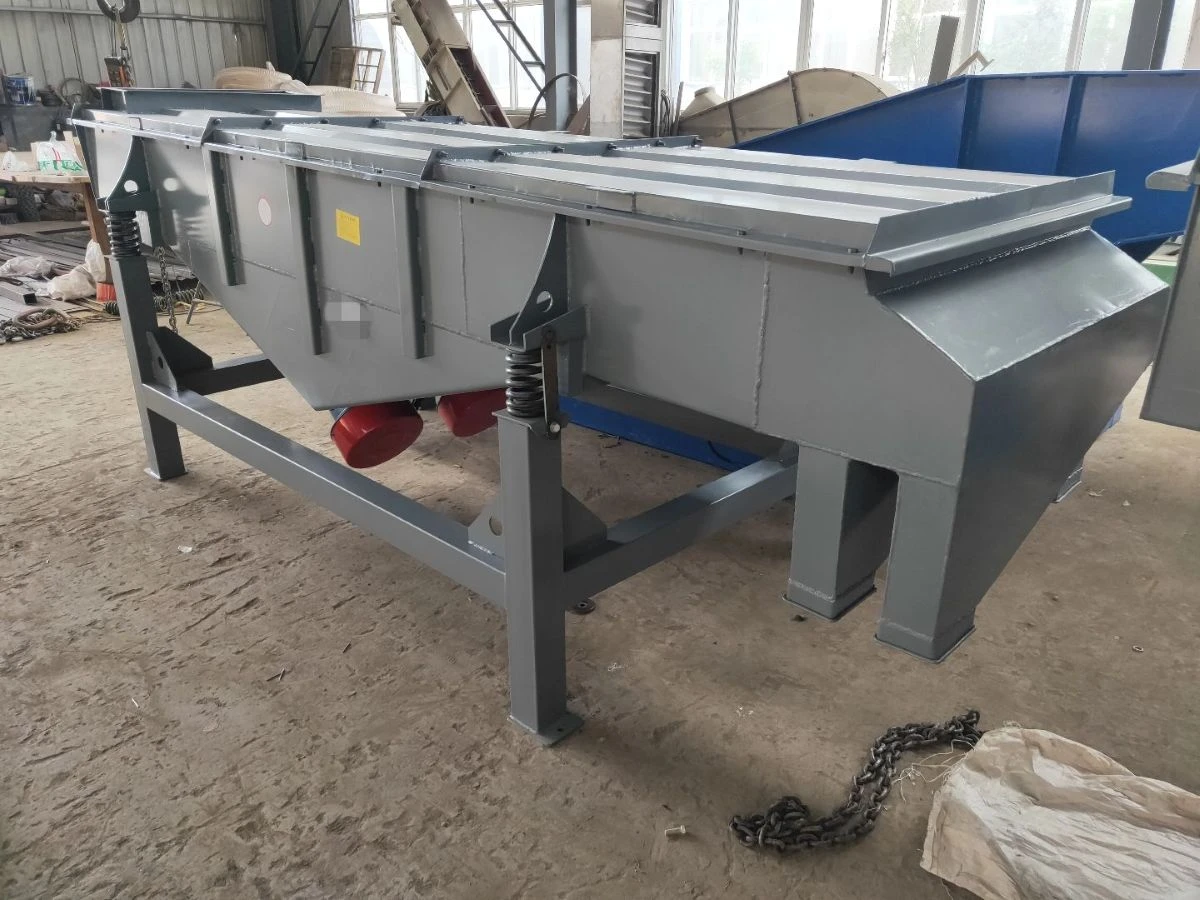

Linear Vibrating Screen – Efficient Screening for Industrial Applications
Yuanjing Linear Vibrating Screen is designed for the mining, chemical, food, and powder industries, providing high-efficiency, wear-resistant, and durable screening solutions. A variety of screen sizes are available, and special customization is supported, making material screening easier and more precise.
What is a Linear Vibrating Screen?
The linear vibrating screen is a screening device widely used across various industries. Designed for high-volume processing, its primary functions include grading, filtering, and removing impurities. Powered by two vibration motors, the linea vibrating sieve causes the material to move in a straight line across the screen surface. The material enters the screen evenly, and particles of various sizes are separated through multiple layers of rectangular mesh screens and discharged through separate outlets. It features low energy consumption, high throughput, a simple structure, easy maintenance, a fully enclosed design that prevents dust leakage, and automatic discharge. Due to its performance and features, it is highly suitable for assembly line operations.

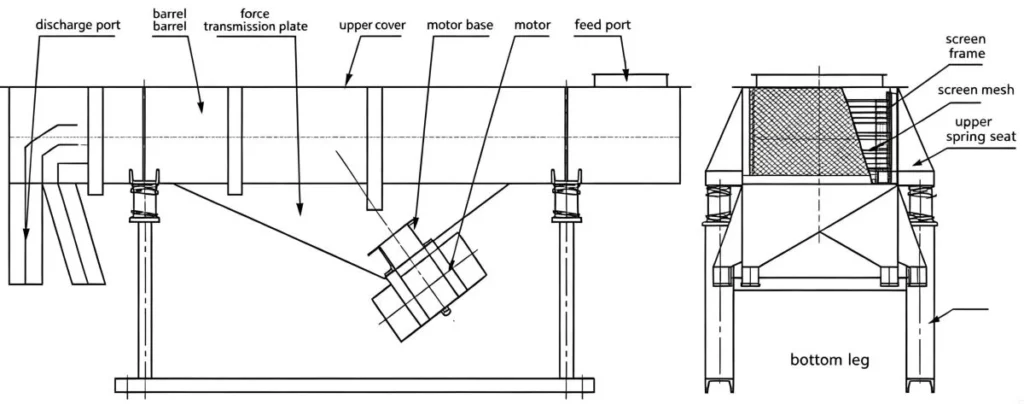

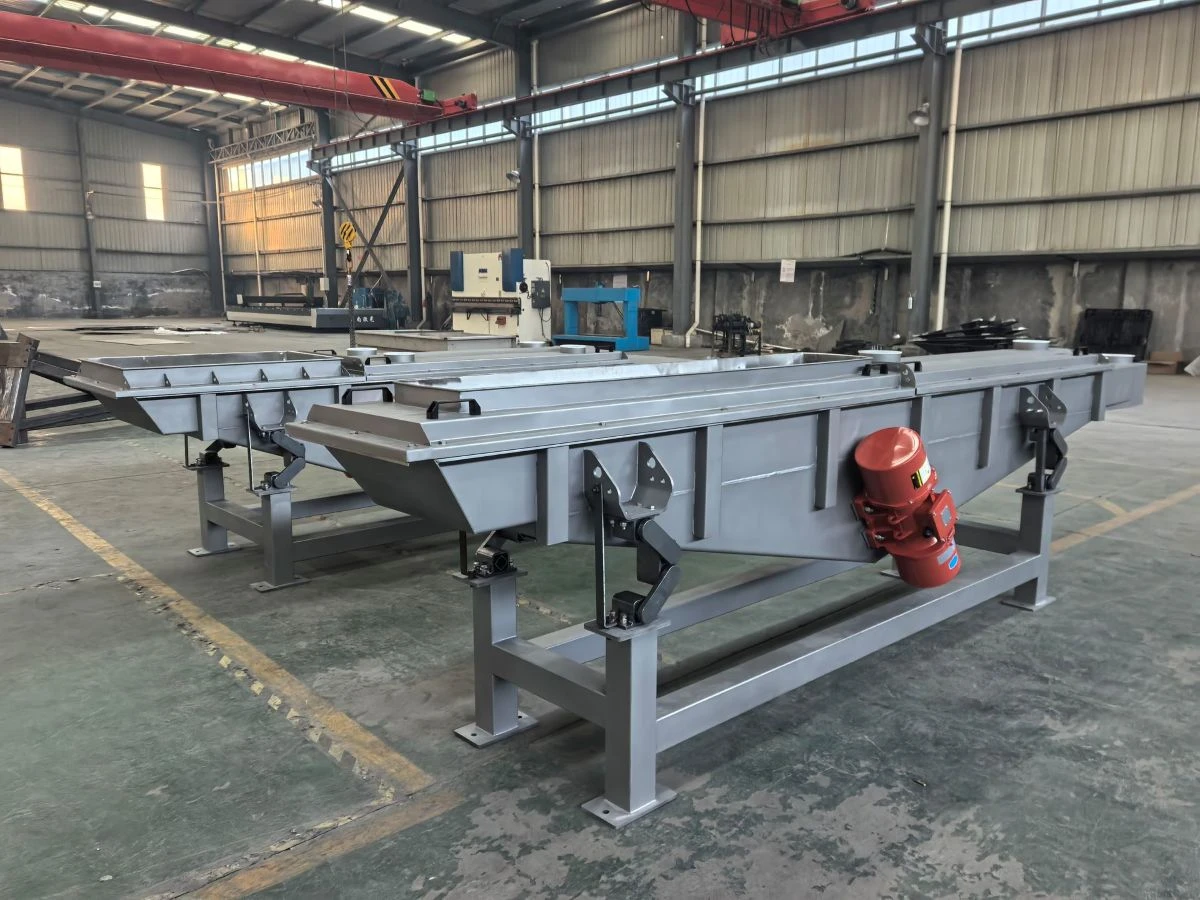

Structure
This screening machine mainly consists of a screen box, screen frame, screen mesh, vibrating motor, motor base, vibration-damping springs, and support frame.
Screen box
Welded from several steel plates of different thicknesses, it possesses a certain strength and rigidity and is the main component of the screening machine.
Screen frame
Made of pine or wood with minimal deformation, it is mainly used to keep the screen mesh flat for proper screening.
Vibrating motor /Motor base
Used to mount the vibrating motor. Before use, the connecting screws must be tightened, especially during the first three days of trial use of a new screening machine; they must be repeatedly tightened to prevent loosening and accidents.
Screen mesh
Available in several types, including low-carbon steel, brass, bronze, and stainless steel wire.
Vibration-damping springs
Prevent vibration from being transmitted to the ground and support the entire weight of the screen box. During installation, the springs must be perpendicular to the ground.
Support frame
Consists of four pillars and two channel steel sections, supporting the screen box. During installation, the pillars must be perpendicular to the ground, and the channel steel sections under the two pillars should be parallel to each other.

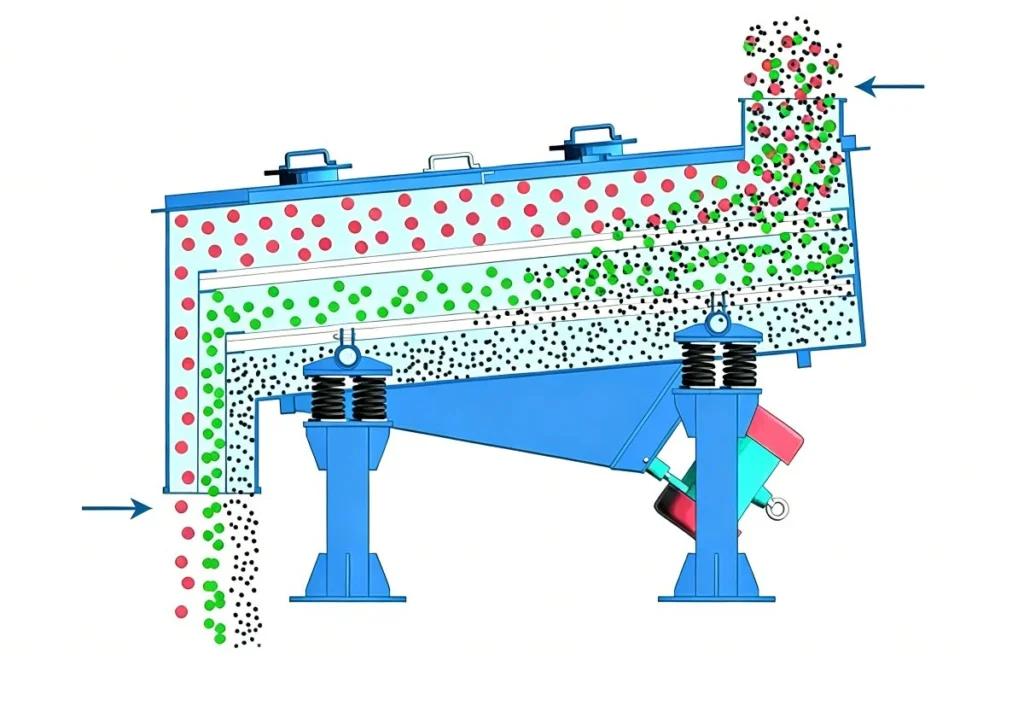

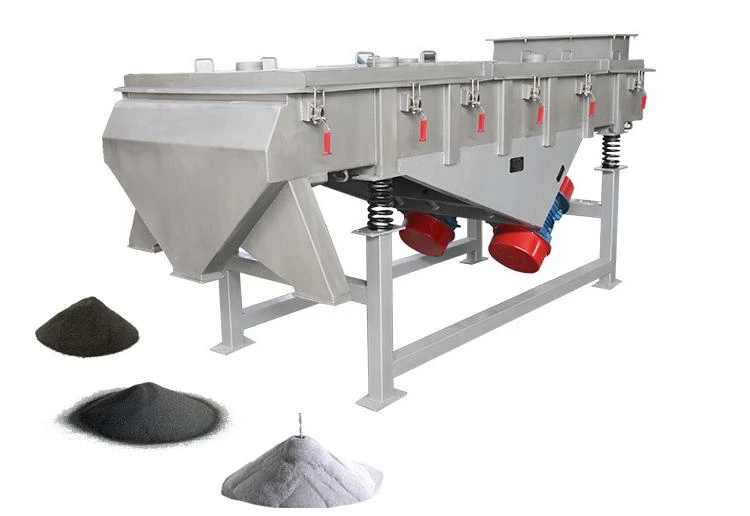

Working principle
The working principle of a linear vibrating screen is based on the excitation force generated by the synchronous and reverse rotation of a vibrating motor. The forces cancel each other out in the direction parallel to the motor axis, and combine into a resultant force in the direction perpendicular to the motor axis, causing the screen’s trajectory to be a straight line. Under the combined action of the excitation force and the material’s own weight, the material is thrown up and jumps forward in a straight line on the screen surface, thus achieving the purpose of screening and grading the material.

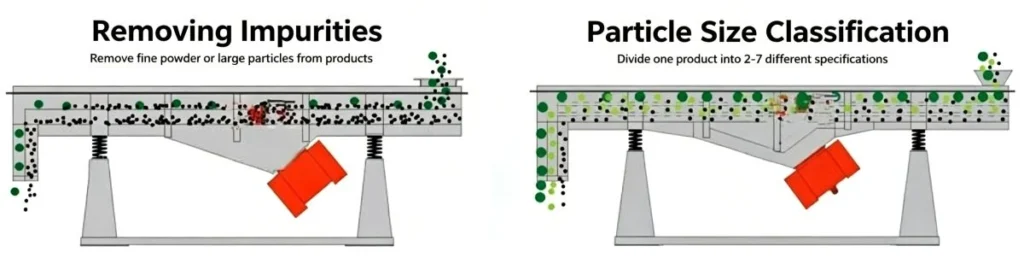

Purpose of the linear vibrating screen
1. Impurity Removal
For processing highly fluid powders and granules, it quickly removes large particles or fine powders present in small amounts.
2. Grading
Continuously grading and screening mixtures of different particle sizes to produce products of varying sizes. A 1-6-layer sieve can be selected, separating the mixture into products of different fineness based on the sieve mesh size. Up to seven different specifications of finished products can be separated in a single pass.

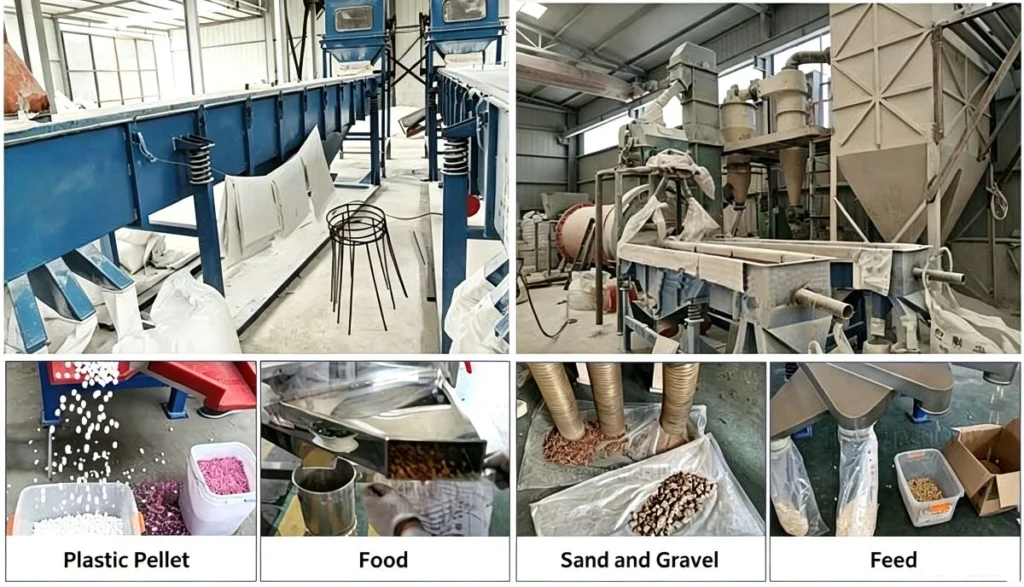

Applications of Linear Vibrating Screens
Food Industry
Flour(flour sifter machine)Corn, wheat, starch, salt, coconut meat,sesame seeds,chili(chili powder sieve machine)wheat bran, etc.
Chemical Industry
Plastic granules, resins, industrial pharmaceuticals, cosmetics(cosmetics powder sieving machine), etc.
Pharmaceutical Industry
Pharmaceutical powders, traditional Chinese medicine powders, granules, pills, etc.
Metallurgy
Alloy powders, electrode powders, electrolytic copper powder, electromagnetic materials, refractory materials, kaolin, etc.
Technical parameters
| Model | Number of Decks | Power (kW) | Screen Surface Size (mm) | Mesh Size (mesh/inch) | Frequency (cycles/min) | Installation Angle (°) |
| YJZ—520 | 1-6 | 0.25–0.55 | 500×2000 | 2–325 | 960 | 0–10 |
| YJZ—525 | 1-6 | 0.37–0.75 | 500×2500 | 2–325 | 960 | 0–10 |
| YJZ—1020 | 1-6 | 0.75–1.1 | 1000×2000 | 2–325 | 960 | 0–10 |
| YJZ—1025 | 1-6 | 0.75–1.5 | 1000×2500 | 2–325 | 960 | 0–10 |
| YJZ—1030 | 1-6 | 1.1–1.5 | 1000×3000 | 2–325 | 960 | 0–10 |
| YJZ—1224 | 1-6 | 1.5–2.2 | 1200×2400 | 2–325 | 960 | 0–10 |
| YJZ—1525 | 1-6 | 1.5–3.0 | 1500×2500 | 2–325 | 960 | 0–10 |
| YJZ—1530 | 1-6 | 1.5–3.0 | 1500×3000 | 2–325 | 960 | 0–10 |
Features of Linear Vibrating Screen
High Screening Efficiency
The linear vibrating screen is driven by dual vibration motors, which generate vibrational forces that cause the material to move in a straight line across the screen surface. This reduces material blockage in the screen openings, thereby improving screening efficiency.
High Processing Capacity
Linear vibrating screens offer a large processing capacity, capable of handling 0.12–20 tons of material per hour.
Environmentally Friendly and Energy-Efficient
The equipment features a fully enclosed structure that prevents dust leakage and includes automatic discharge, ensuring excellent environmental performance.
Multi-layer separation
Linear vibrating screens are typically equipped with multiple layers of screens, enabling the separation of products into 2, 3, 4, 5, 6, or 7 different grades, with a maximum of 6 layers.
Low energy consumption and low noise
Powered by dual vibration motors, these screens offer high vibration efficiency. Operating noise is typically below 75 decibels, and they consume approximately 20% less energy than traditional screening equipment.
Easy maintenance
The screens on linear vibrating screens are easy to clean and replace. Equipped with a simple clamping system, operators can easily perform cleaning and replacement tasks.
Custom Solutions for Your Needs
Yuanjing Machinery offers fully customised linear vibrating sieve solutions to meet diverse material and production capacity requirements. We tailor equipment to specific factors such as material, mesh size, and number of layers. Our professional design ensures efficient screening, stable operation, and easy maintenance, helping you optimise your production.

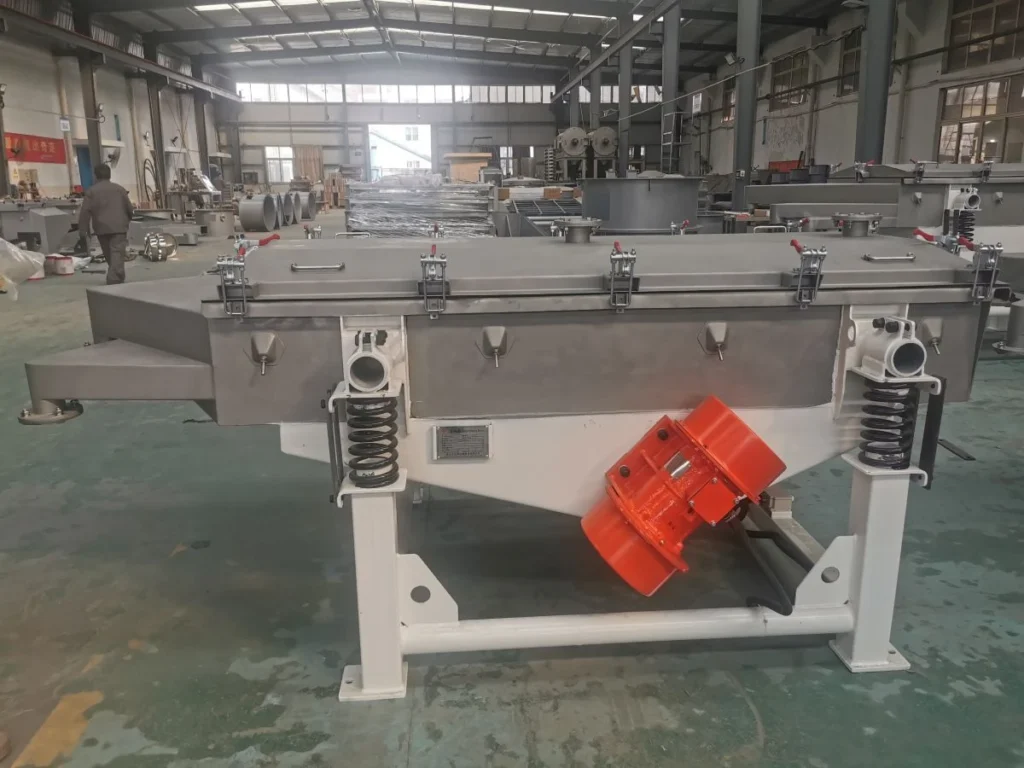

carbon steel

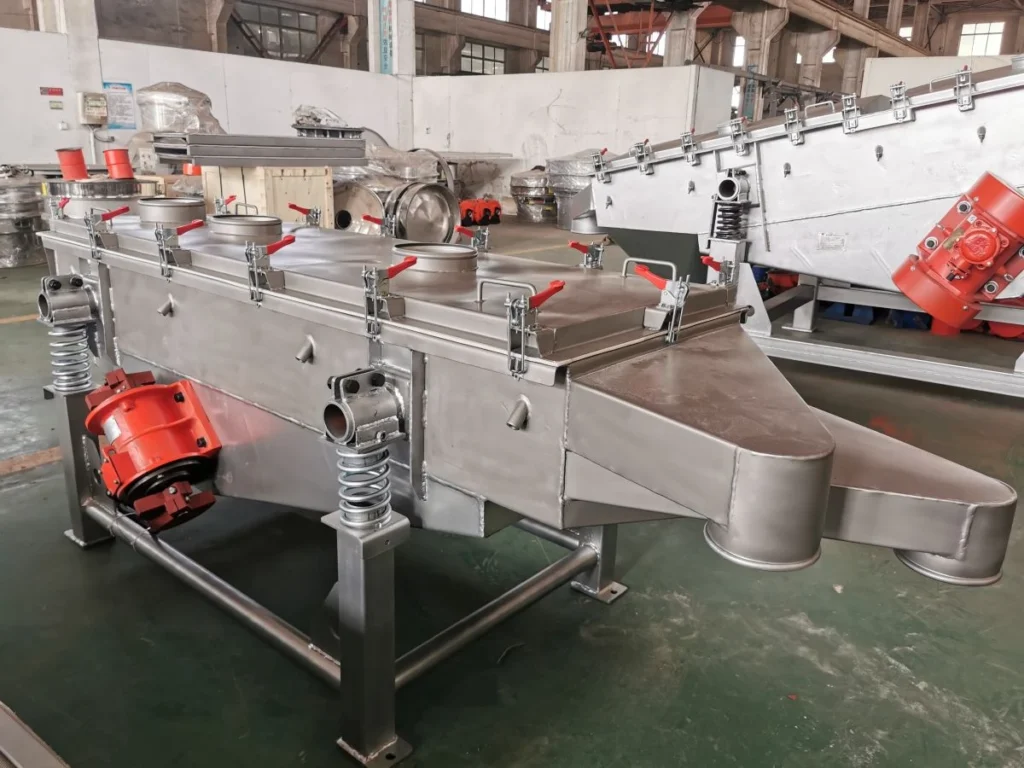

Quick-opening

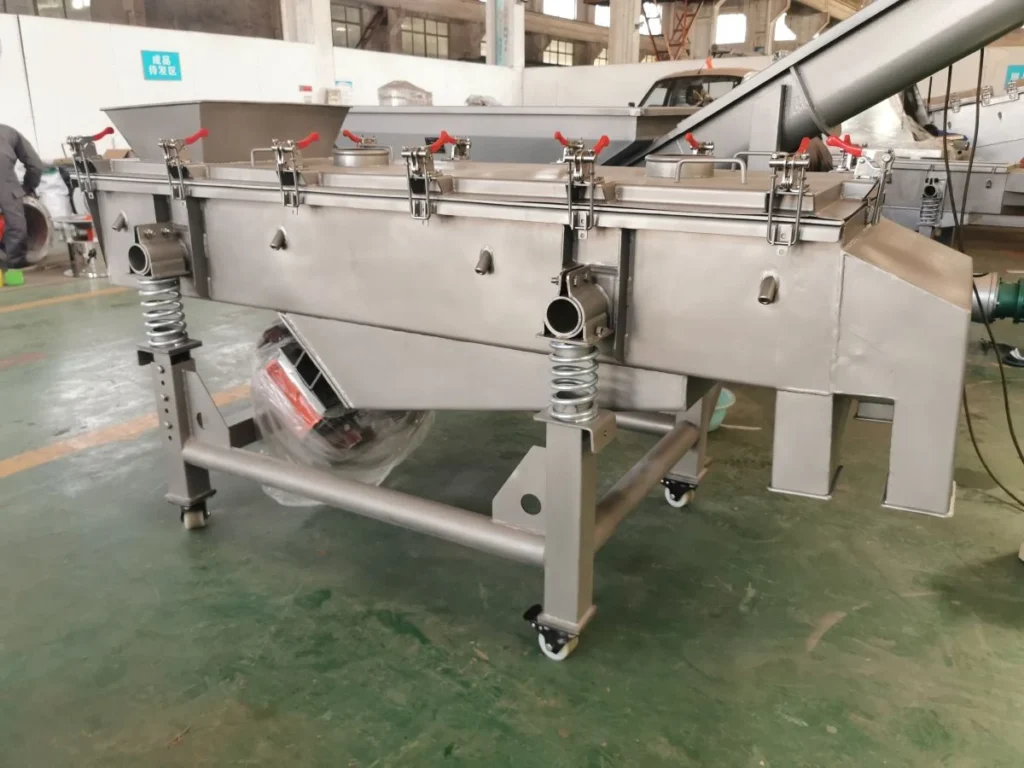

Removable

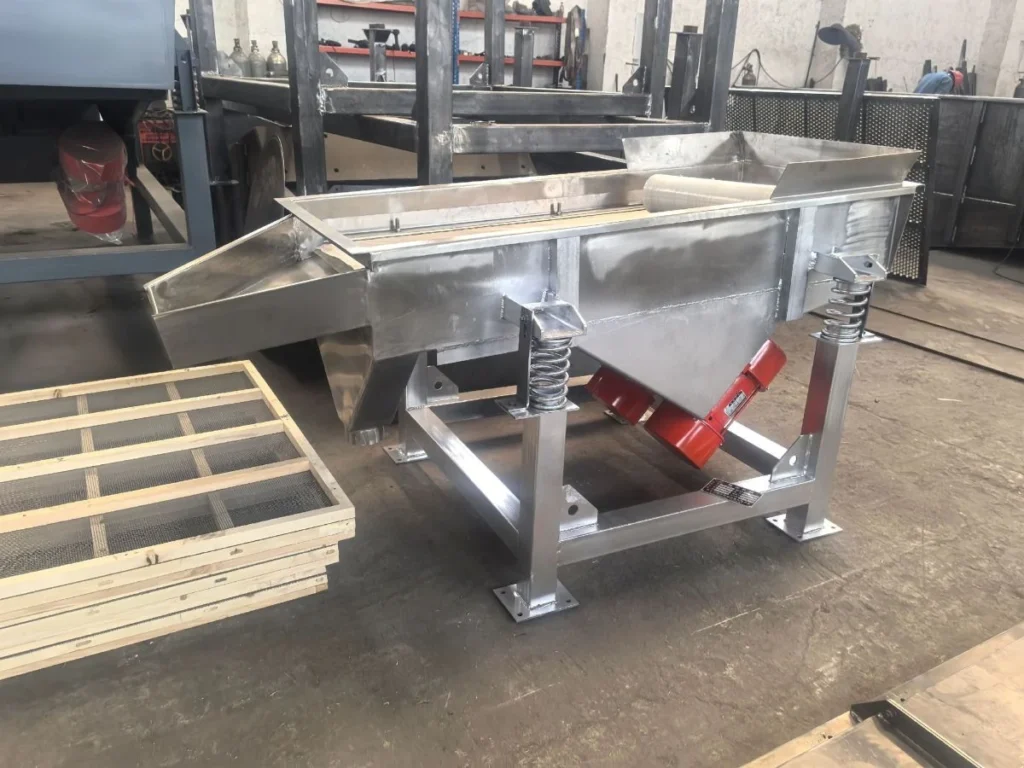

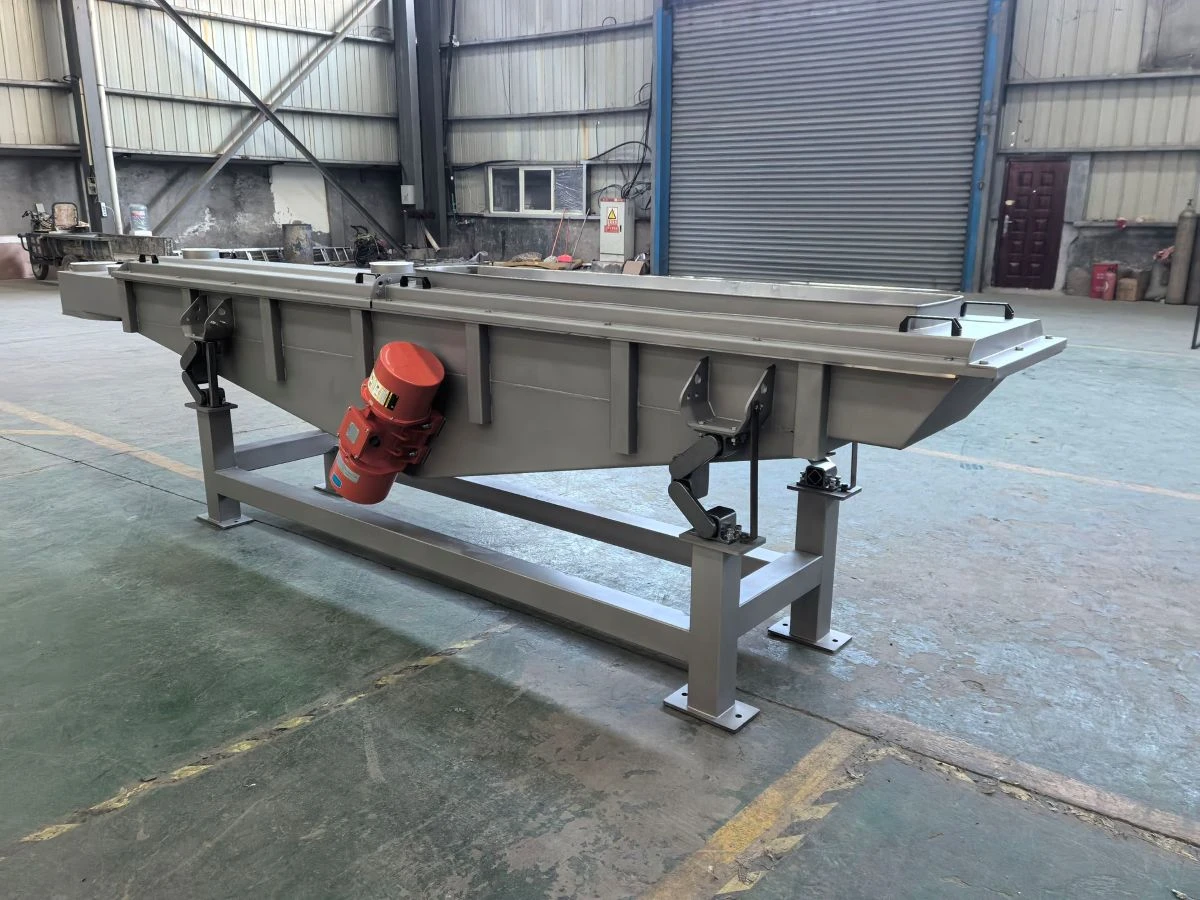

Stainless steel
Why Choose Us for Vibrating Screens？
High Screening Efficiency
Quickly and accurately separate materials for maximum productivity.
Durable Construction
Built with wear-resistant materials to ensure long-term reliability.
Customizable Design
Adjustable mesh size, number of decks, and voltage to match specific requirements.
Wide Application Range
Suitable for mining, chemical, food(coconut meat), and powder industries.
Easy Operation & Maintenance
User-friendly design for minimal downtime and hassle-free upkeep.
Professional Support & Service
Expert guidance from installation to after-sales ensures smooth operation.
Related Products
Rotary Vibrating Screen
Rotary Vibrating Screen | Vibro Sifter The rotary vibra…Inline Vibratory Screen
Inline Vibratory Screen for Continuous Production Lines…Screw Conveyor
Industrial Screw Conveyor Systems for Bulk Material Han…Vacuum Conveyor Feeder System
Industrial Vacuum Conveyor System Solutions for Powder …
Vibrating Screen and Conveyor Machine Manufacturer & Supplier
Built for precision screening, reliable performance, and flexible industrial applications,
Yuanjing rotary vibrating screens are trusted by customers worldwide.
Global Project Experience
Yuanjing products are exported to 50+ countries and regions, serving industries including food, chemicals, pharmaceuticals, mining, and new energy.
Strong Manufacturing Capability
Advanced production lines with laser cutting, CNC machining, automatic welding, and strict quality inspection ensure consistent product quality.
Accurate & Stable Separation
Optimized vibration design delivers even material flow, high screening accuracy, and stable long-term operation.
Customized Screening Solutions
Yuanjing offers flexible configurations in diameter, mesh size, deck layers, and material options to fit your exact process requirements.
FAQs
Get Custom Solution
We can provide customised screening and conveying equipment solutions tailored to different materials and production requirements.
Send us your requirements, and our team will provide the right solution and a fast quotation within 24 hours.
