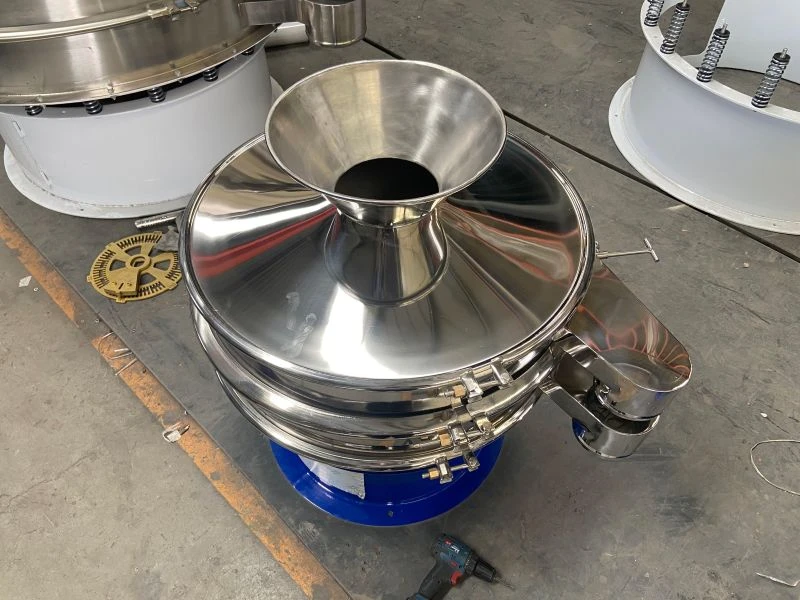

Specifically designed for pigments, blushes, eyeshadows, and loose powders, this cosmetic powder screening machine features high-efficiency screening and low dust emission. It offers flexible customization options to meet a wide range of production needs—from small-scale to large-scale operations—ensuring that your cosmetic powders are fine, uniform, and of exceptional quality.
Benifits Of Cosmetics Powder Sieving Machine
To remove impurities and coarse particles—during the screening process, cosmetic powders generate significant dust; this not only results in material waste but also exposes on-site operators to prolonged dust exposure, creating extremely arduous working conditions for the staff. A fully enclosed, dust-free rotary vibrating screen is capable of effectively meeting this specific requirement.
Working Principle Of Cosmetics Powder Sieving Machine

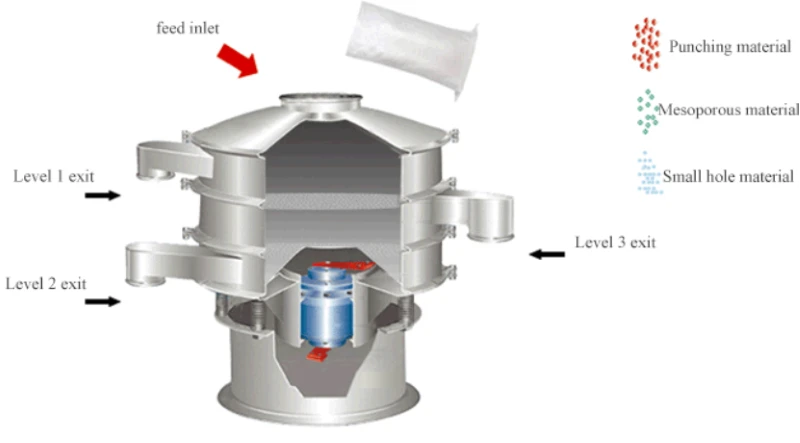

The Cosmetics Powder Sieving Machine utilizes a vertical motor as its vibration source. Eccentric weights are mounted at both the upper and lower ends of the motor to convert its rotational energy into a three-dimensional compound force—acting in horizontal, vertical, and inclined directions—which is then transmitted to the screen surface. This action causes the material on the screen to follow a movement trajectory characterized by diffusion and an involute spiral pattern.
The rotary Vibrating Screen offers significant advantages, including a long material trajectory and a high utilization rate of the screen surface. By adjusting the phase angles of the eccentric weights at the upper and lower ends, the trajectory of the material on the screen can be altered, thereby enabling both precision screening and probability screening of the material.
Technical Parameters of Cosmetics Powder Sieving Machine
| Model | Diameter (mm) | (mm) | Decks | Power (kW) | Accuracy (%) | Capacity (kg/h) |
| YJ-400 | 400 | 340 | 1-5 | 0.25 | ≥95% | 50-200 |
| YJ-600 | 600 | 530 | 1-5 | 0.55 | ≥95% | 100-500 |
| YJ-800 | 800 | 720 | 1-5 | 0.75 | ≥95% | 200-800 |
| YJ-1000 | 1000 | 900 | 1-5 | 1.1 | ≥95% | 500-1200 |
| YJ-1200 | 1200 | 1100 | 1-5 | 1.5 | ≥95% | 800-2000 |
| YJ-1500 | 1500 | 1400 | 1-5 | 2.2 | ≥95% | 1000-3500 |
| YJ-1800 | 1800 | 1700 | 1-5 | 3 | ≥95% | 1500-5000 |

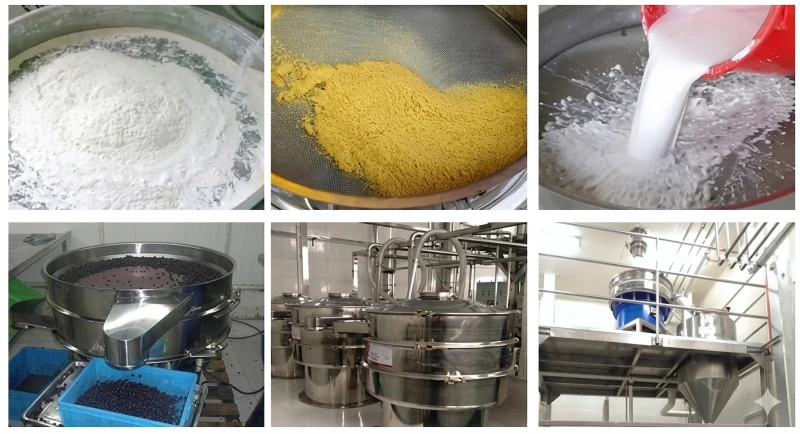

Applications
- Cosmetic manufacturers producing blush, eyeshadow, face powder, loose powder, and pigment powders.
- Laboratories and pilot-scale production for new cosmetic formulations.
- Suitable for global markets, including USA, Europe, and Asia.
- When integrated with feed conveyor system and a dust free bag dump station, it forms a fully integrated, dust-free production line for feeding, screening, and conveying.
Features
High Screening Efficiency
Advanced vibration system ensures fast and accurate separation of powders.
Hygienic Design
Made from SUS304/316 stainless steel, meeting cosmetic industry hygiene standards.
Versatile Applications
Suitable for loose powders, blush, eyeshadow, pigment powders, and foundation powders.
Customizable Options
Multi-layer screens and adjustable vibration settings accommodate different particle sizes.
Low Dust Emission
Enclosed design and vacuum-assisted options reduce powder loss and workplace contamination.
User-Friendly Operation
Easy assembly, maintenance, and operation for a seamless production workflow.
Cosmetics Powder Sieving Machine Selection Notes
Materials
To ensure no contamination occurs during the cosmetic sieving process, cosmetic powder sieving machines must be manufactured from high-quality 304 stainless steel or 316L stainless steel. These materials are chemically stable and do not readily react with the processed materials. Additionally, they are resistant to rust and are easy to clean and sterilize.
Sealing Performance
To ensure the hygiene and safety of raw materials, the cosmetics powder sieving machine must possess excellent sealing performance. On one hand, this effectively prevents material spillage, avoiding waste of resources or loss of material; on the other hand, it prevents cross-contamination of materials between multiple sieving machines within the same workshop, thereby ensuring the smooth and safe operation of the production process. Typically, a standard-compliant cosmetics vibrating screen employs both dust covers and sealing strips to ensure the equipment’s overall sealing effectiveness.
Components

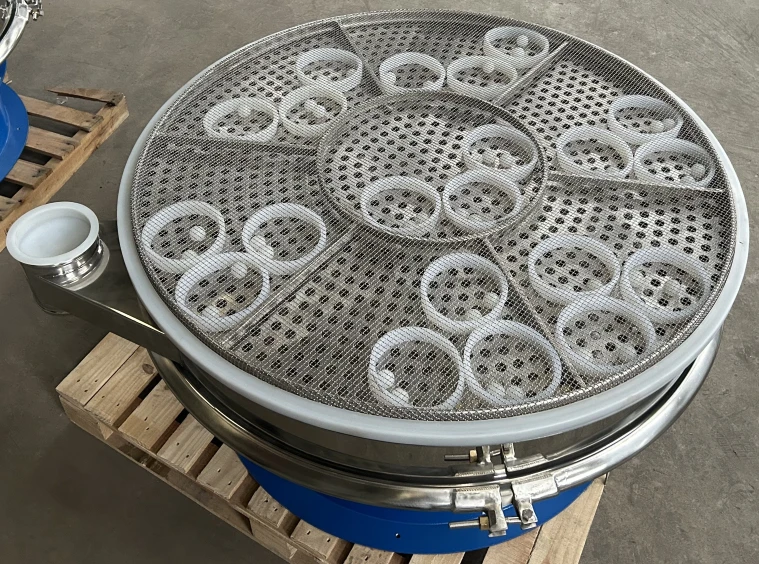

To ensure the durability and airtightness of the sieving machine, the Cosmetics Powder Sieving Machine must be equipped with various sealing components, such as sealing O-rings, bounce balls, and flexible connectors. When selecting these sealing components, silicone should be the material of choice. This is primarily because silicone offers superior durability and stability, and its hygiene standards far exceed those of ordinary rubber materials.
Ease of Cleaning
To ensure hygiene and cleanliness, the cosmetics powder sieving machine must undergo thorough cleaning and disinfection on a regular basis. The surfaces and weld points of the sieving equipment are finely polished to ensure the surface of the vibrating sieve is smooth, flat, and mirror-like; this not only prevents material buildup during the sieving process but also significantly reduces the difficulty of cleaning and disinfection for operators.
Related video
Installation & Maintenance
Easy Installation
Designed for rapid deployment, this equipment requires minimal tools for setup and integrates seamlessly into existing production lines.
Easy Cleaning and Maintenance
Featuring smooth stainless steel surfaces and removable screens, the equipment allows for quick and efficient cleaning, ensuring consistent compliance with hygiene standards.
Durable and Robust
key components are manufactured using high-quality stainless steel and industrial-grade parts, ensuring an exceptionally long service life and stable performance even under high-load conditions during continuous production.
Compliance with Industry Standards
The equipment is manufactured in strict accordance with GMP and ISO standards, providing reliable operational assurance and ensuring consistent product quality.
