High-Yield Starch Inline Vibratory Screen
Overview
Inline vibratory screen technology is widely used in high-capacity powder processing applications due to its efficient material flow and stable screening performance. A starch processing company in the United States required an inline vibratory screen solution to improve screening efficiency and reduce mesh blockage during continuous production.
Customer Requirements
- Material: Starch (fine powder, prone to agglomeration)
- Screening Accuracy: 100 mesh
- Capacity: Large throughput with continuous production
- Material of Construction: Full stainless steel structure (food-grade standard)
- Key Challenge: Prevent mesh blockage while improving capacity
- Site Limitation: Compact structure required due to limited installation space
Solution
Starch is lightweight, fine, and easily absorbs moisture, which can lead to agglomeration and mesh clogging. After analyzing the material characteristics and production conditions, our engineers recommended an Inline Vibratory Screen solution.
Compared with conventional round vibrating screens, inline vibratory screens are more suitable for large-capacity continuous screening applications. Their high-frequency vibration and direct discharge structure allow materials to pass through quickly, reducing material retention and improving overall screening efficiency.
After reviewing the proposal, the customer confirmed that the inline vibratory screen fully met the production requirements and proceeded with the solution.

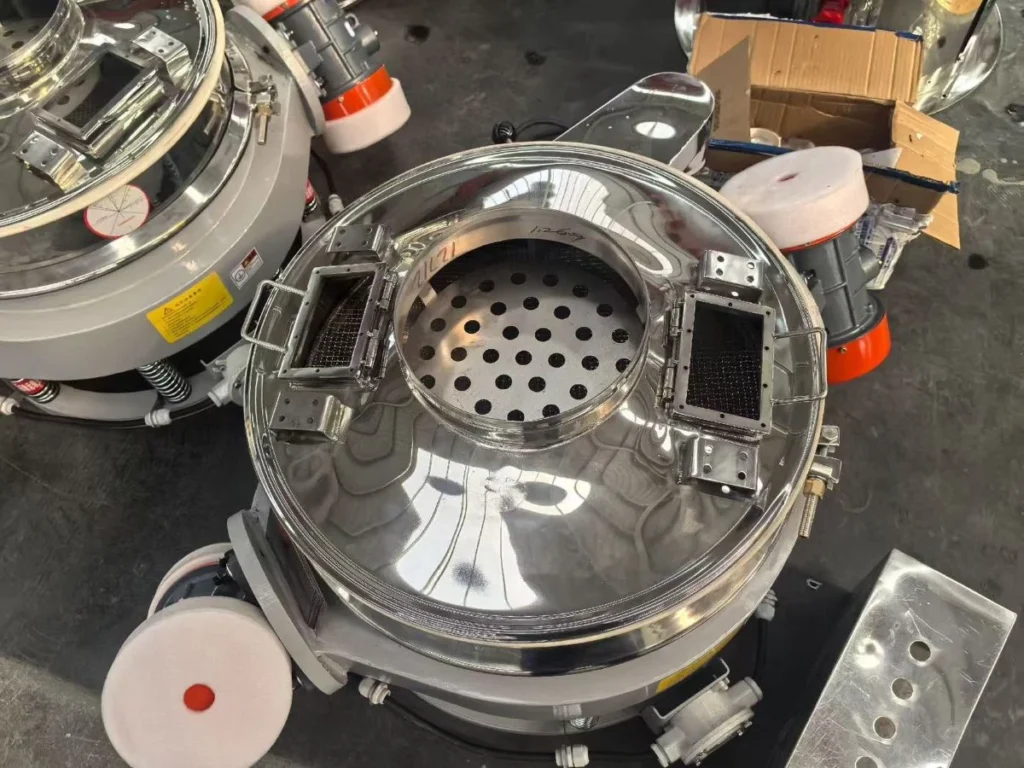

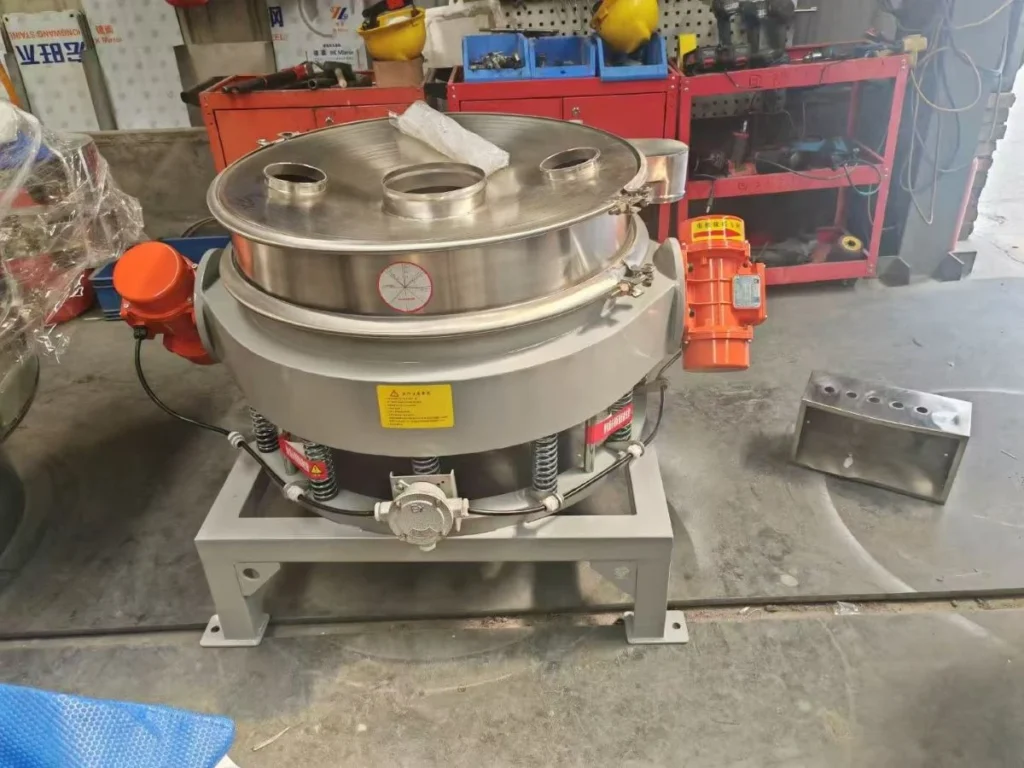

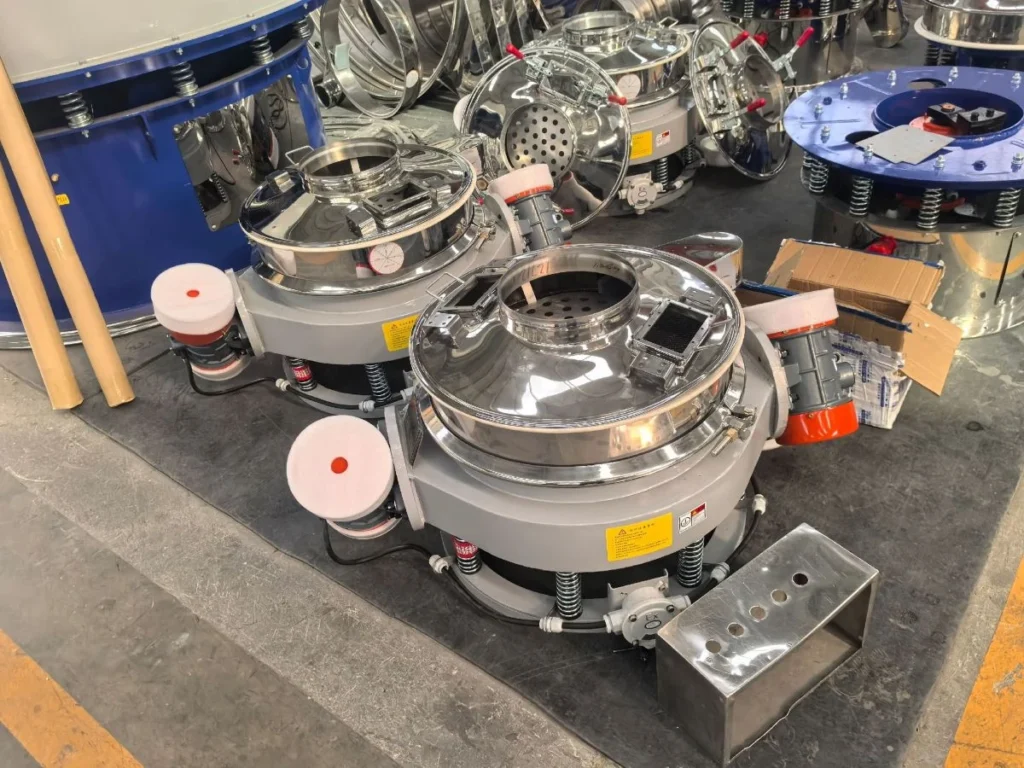

Equipment Parameters
- Equipment Type: Inline Vibratory Screen
- Mesh Size: 100 mesh
- Material: SUS304 stainless steel (contact parts)
- Capacity: Designed for high-capacity continuous feeding
- Drive System: Dual vibration motors
- Discharge Method: Fast direct-discharge structure
- Installation Type: Compact floor-mounted design
Equipment Features
High Efficiency & Large Capacity
The direct discharge structure allows rapid material flow without accumulation, making it suitable for continuous production lines.
Anti-Clogging Design
High-frequency vibration effectively reduces starch agglomeration and minimizes mesh blockage.
Food-Grade Construction
The stainless steel structure complies with food processing industry requirements and is easy to clean.
Stable Operation
Dual synchronized vibration motors provide uniform screening performance and support 24-hour continuous operation.
Easy Maintenance
Quick mesh disassembly and convenient cleaning reduce downtime and maintenance costs.
Optimized for Fine Powders
Specially designed for lightweight fine powders such as starch and flour.
Industrial Applications
The Inline Vibratory Screen not only excels in the removal of impurities from starch but, thanks to its unique high-throughput design, is also widely utilized for the safety screening and pre-packaging inspection of the following fine powders and granular materials:
Food Industry: Flour, wheat flour, tapioca flour, milk powder, cocoa powder, powdered seasonings, and food additives.
Chemical & Pharmaceutical: Raw pharmaceutical powders, finished medicinal powders, cosmetic raw materials, resin powders, plastic granules, and laundry detergents.
New Energy & Metallurgy: Battery cathode and anode materials, graphite powder, metal powders, and fine quartz sand.Customer Feedback
Customer Feedback
- Production capacity increased significantly
- Mesh blockage was greatly reduced
- Cleaning frequency decreased
- Screening accuracy became more stable
- Product uniformity improved
The customer stated that the round vibrating sieve successfully solved the previous production bottleneck problems.
FAQ
- Why is an Inline Vibratory Screen better suited for high-volume impurity removal than a standard rotary vibrating screen?
In traditional circular rotary vibrating screens, material moves across the screen mesh in a spiraling, outward-extending pattern, with the discharge outlet located on the side; this increases the material’s dwell time on the screen, making it ideal for precise classification. In contrast, the Inline Vibratory Screen features feed and discharge ports aligned along the same vertical axis. Powered by dual motors generating high-frequency vibrations, material is driven by gravity to fall directly and vertically through the screen mesh, passing through several times faster. Consequently, it holds a distinct advantage in efficiency for high-volume safety screening (check screening) applications. - How do you ensure that the screen does not clog when sifting fine powders—specifically at 100 mesh—that are highly susceptible to moisture absorption and clumping?
Our system utilizes dual vibrating motors to generate a powerful vertical excitation force, causing the powder particles to maintain a state of rapid, micro-bouncing motion across the screen mesh; this effectively disrupts the surface tension between the material’s molecules. For special materials with more stringent processing requirements or higher viscosity, we also offer a customizable Ultrasonic De-blinding System to ensure that the screen apertures remain 100% clear and unobstructed over the long term.
Conclusion
If you are processing starch, flour, or other fine powder materials and facing challenges such as insufficient capacity or mesh blockage, feel free to contact us. We can provide customized screening solutions based on your material characteristics, production capacity, and process requirements.
