Palm Powder Ultrasonic Vibrating Screen Solution
Overview
The customer from Saudi Arabia required apalm powder ultrasonic vibrating screen solution for high-precision classification of palm powder used in food-grade and feed-grade processing. The main challenge was eliminating mesh blockage and maintaining stable screening efficiency. During initial trials, they also tested a test lab sieve shaker to evaluate particle size distribution before full-scale production.
Customer Requirements for Palm Powder Ultrasonic Vibrating Screen
- Material: Palm powder (contains a certain amount of oil and is prone to adhesion)
- Capacity: 400 kg/h
- Screening Precision: 200 mesh / 300 mesh classification
- Material Requirement: Full stainless steel construction (food-grade)
- Key Requirement: Must solve screen blinding and material sticking problems
- Equipment Stability: High stability for continuous operation
The customer previously used a conventional vibrating screen but experienced severe mesh blockage, resulting in more than a 30% reduction in production capacity. They were also considering pneumatic vacuum conveying systems to reduce manual handling of fine powder. Therefore, they were looking for a more stable solution.
Palm Powder Ultrasonic Vibrating Screen Solution

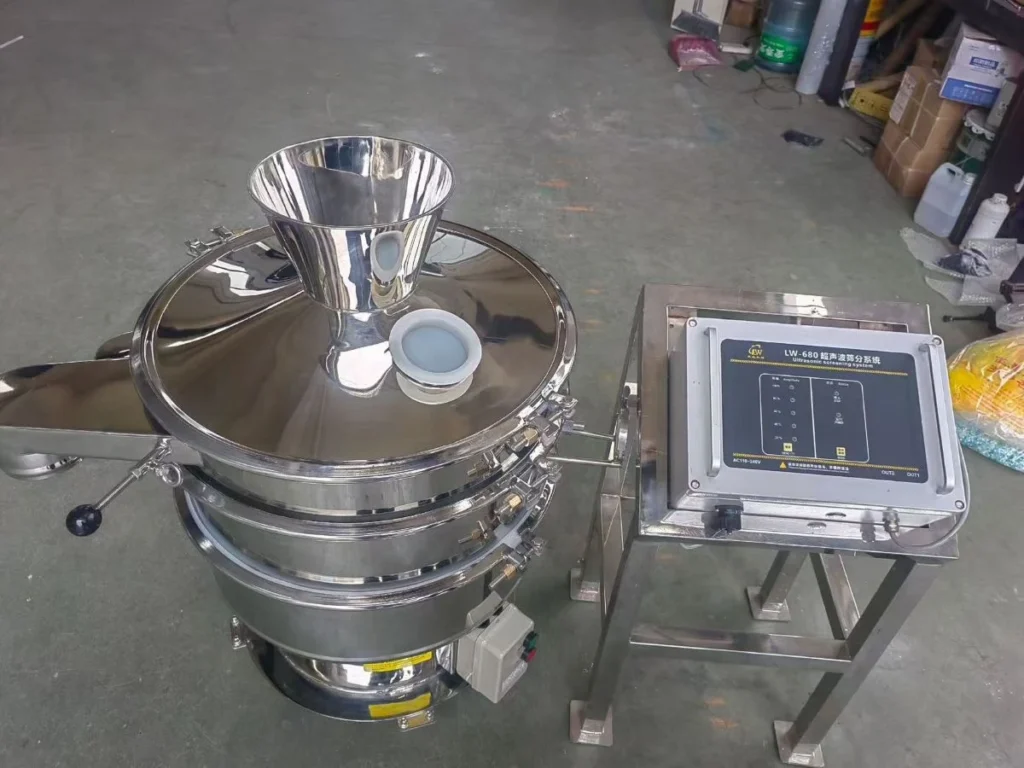

Palm powder tends to agglomerate and contains oil, making it difficult to screen efficiently. Based on the mesh requirements and processing capacity, we recommended a 1200 mm ultrasonic vibrating screen. The high-frequency ultrasonic vibration disperses fine powder agglomeration while reducing powder adhesion to the screen surface. It is equipped with a lab sieve shaker and a vacuum conveying system, forming a complete screening and conveying production line.Using high-quality mesh also extends screen mesh service life, reducing downtime and maintenance costs.
Equipment Specifications

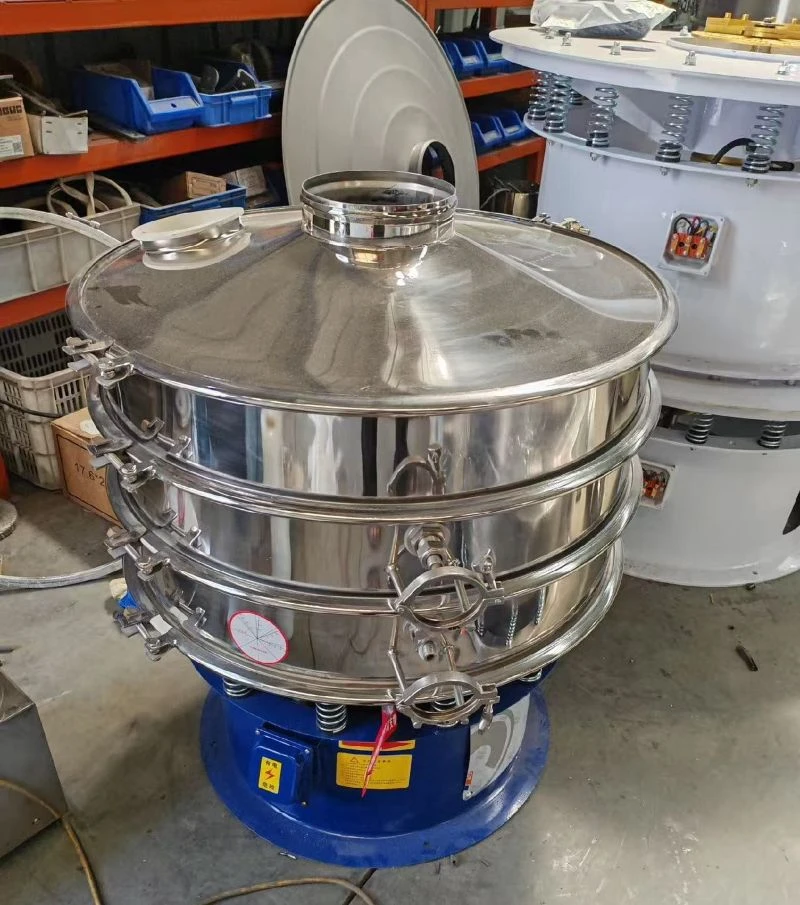

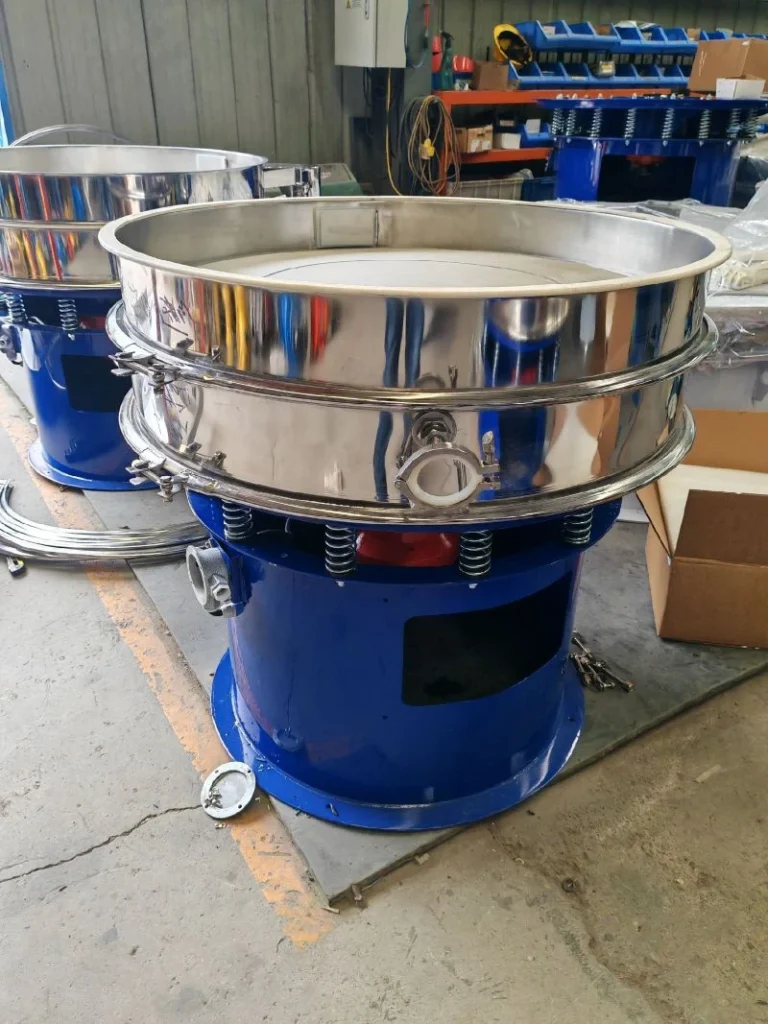

Equipment Model: Φ1200 Ultrasonic Vibrating Screen
Capacity: 400 kg/h
Screen Mesh Configuration: 200 mesh / 300 mesh
Material: 304 Stainless Steel (316L optional)
Power: 1.1–1.5 kW
Vibration Method: Three-dimensional vibration + ultrasonic high-frequency system
Palm Powder Ultrasonic Vibrating Screen Features
Ultrasonic Anti-Blinding System
Effectively solves mesh blockage and material adhesion issues for palm powder screening.
Food-Grade Stainless Steel Structure
Meets hygiene and corrosion resistance requirements.
Stable Operation with Low Noise
Suitable for continuous production lines.
Easy Cleaning Design
Reduces oil residue accumulation and lowers maintenance frequency, helping customers save on overall powder sieving machine price.
Palm Powder Ultrasonic Vibrating Screen Results
After the equipment was put into operation, the customer reported the following improvements:
- Mesh blockage problems were eliminated, and screening efficiency significantly improved
- Production capacity consistently reached the target of 400 kg/h
- Fine powder classification became more uniform, and product quality improved
- Cleaning and maintenance time was significantly reduced
The customer expressed high satisfaction with the stable, continuous operation of the equipment.
Conclusion
If you are also processing oily fine powders that frequently experience screen blockage issues, we can provide customized screening solutions based on your material characteristics and processing requirements. Our team can help you choose the right test lab sieve shaker, design pneumatic vacuum conveying systems, and select equipment that optimizes screen mesh service life while keeping the powder sieving machine price competitive. Contact our technical team for free screening solutions and equipment selection recommendations.
