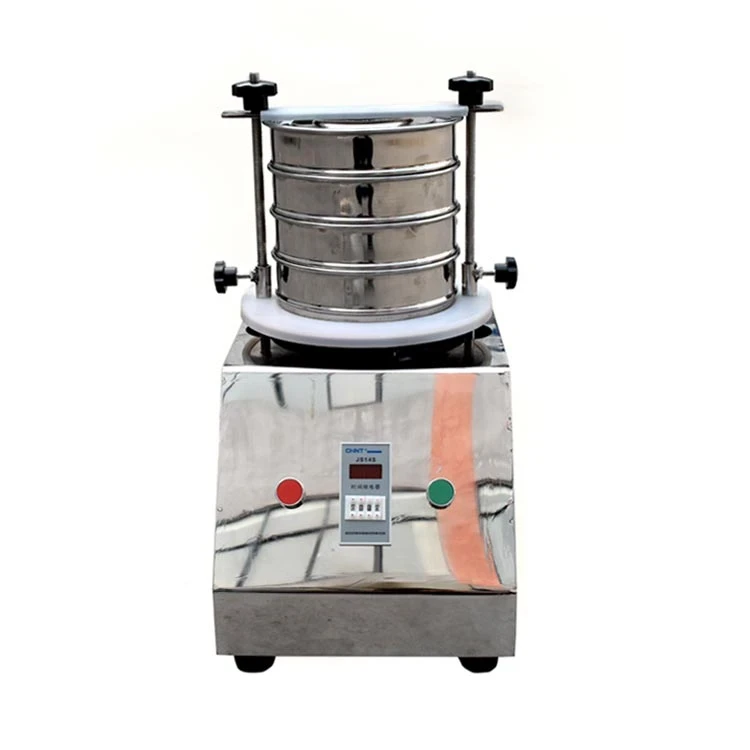

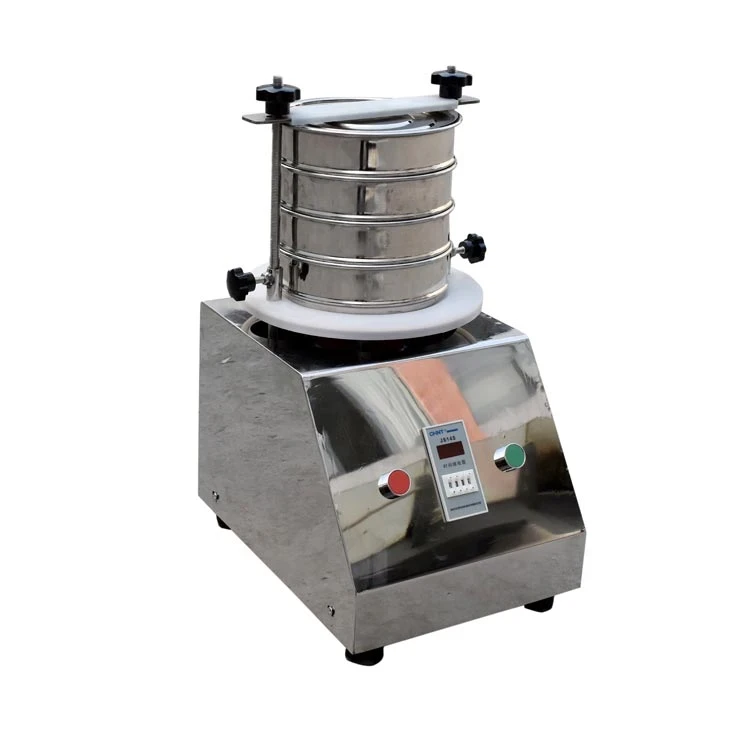

Lab Sieve Shaker for Accurate Particle Size Analysis
YuanJing lab sieve shakers are designed for precise particle size analysis in laboratory environments. With stable vibration and compact structure, they are suitable for powders, granules, and fine materials across multiple industries.
What is a Lab Sieve Shaker?
Lab sieve shakers are designed for efficient and reliable sieving of powders, granules, and other solid materials. They typically consist of a motor that drives a vibrating mechanism, which applies motion to the sieve stack. This vibration helps to stratify materials based on particle size, providing accurate and reproducible results.

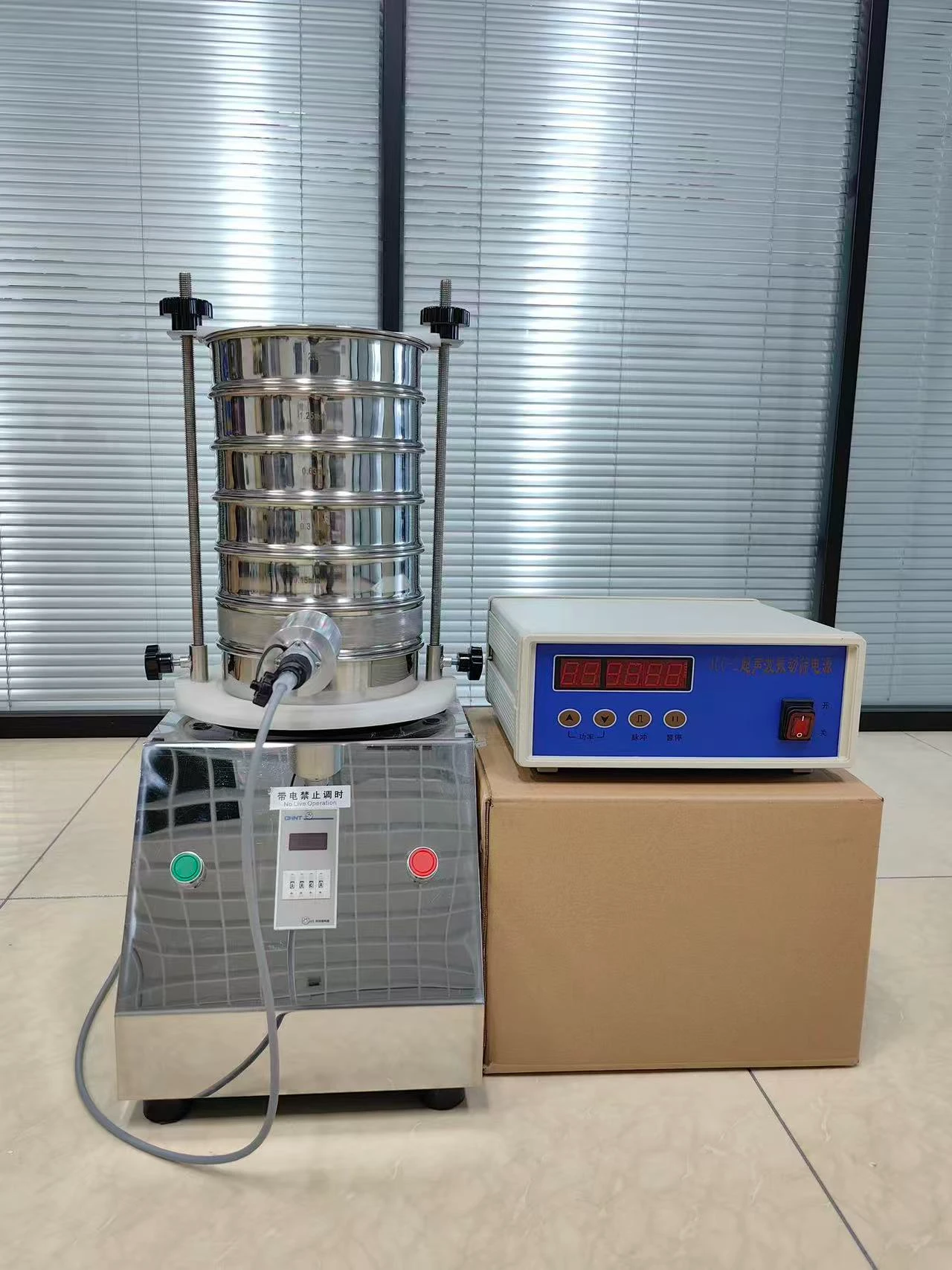

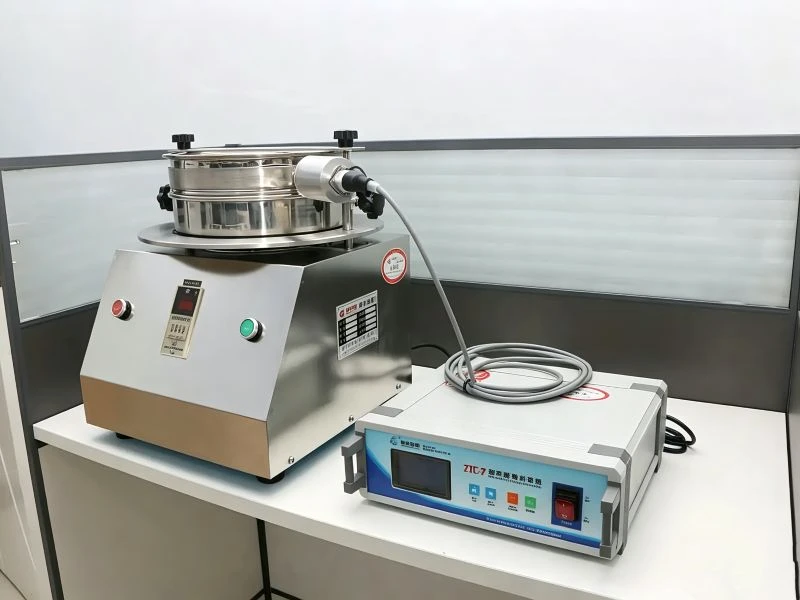

Common features include adjustable vibration intensity, easy-to-use controls, and compatibility with different sieve sizes. Furthermore, it is compatible with ultrasonic mesh deblinding units, same as ultrasonic vibrating sieves.They are used in various industries, including materials testing, pharmaceuticals, food science, and environmental analysis.

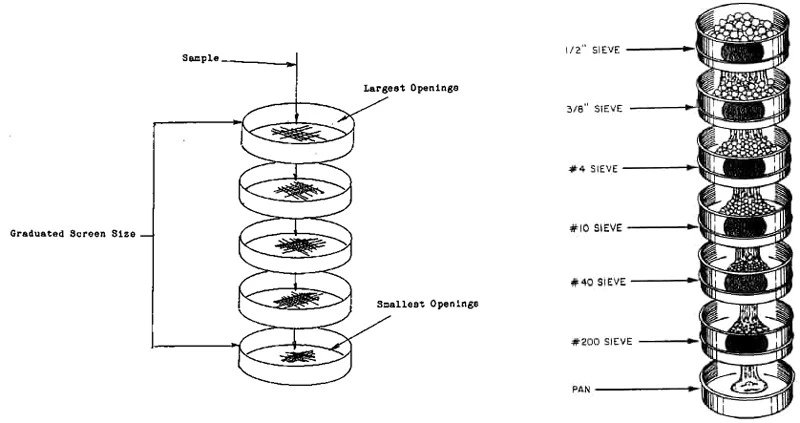

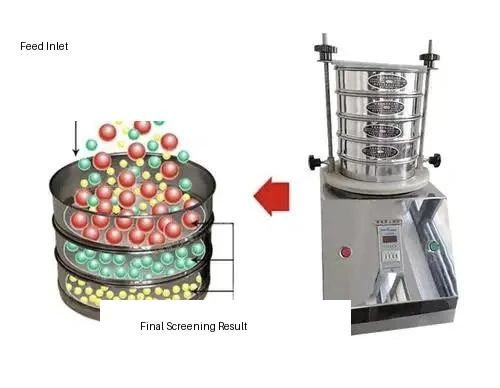

Working Principle

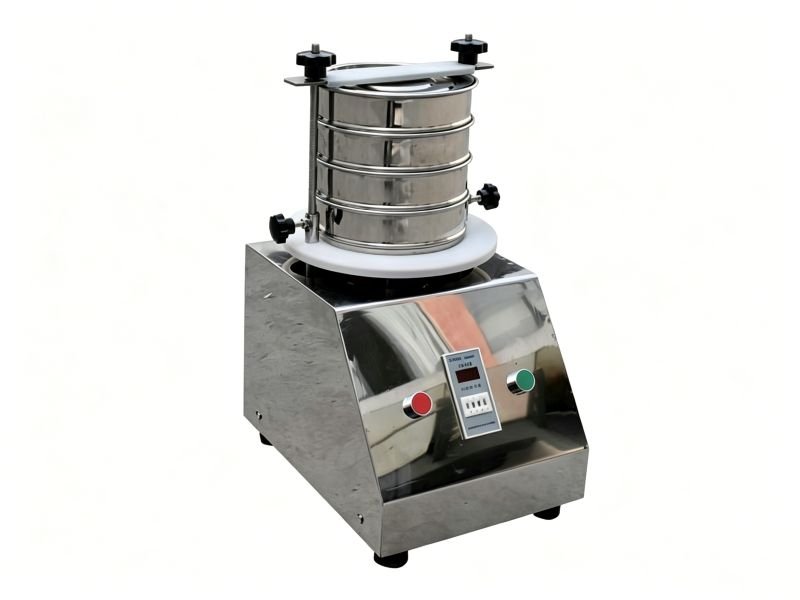

An electromagnetic vibrator is used as the vibration source. The vibration from the vibrator drives the screen machine to vibrate at the base, which is then transmitted through the base to a set of standard test sieves arranged from coarse to fine. At the same time, a vibration motor (or reciprocating mechanism) installed at the bottom performs precise screening of the material. As the material vibrates on the surfaces of the standard test sieves, particles smaller than the mesh size fall through to the next lower sieve. This process continues layer by layer until each sieve retains particles of the same size, thereby achieving separation based on different particle sizes.

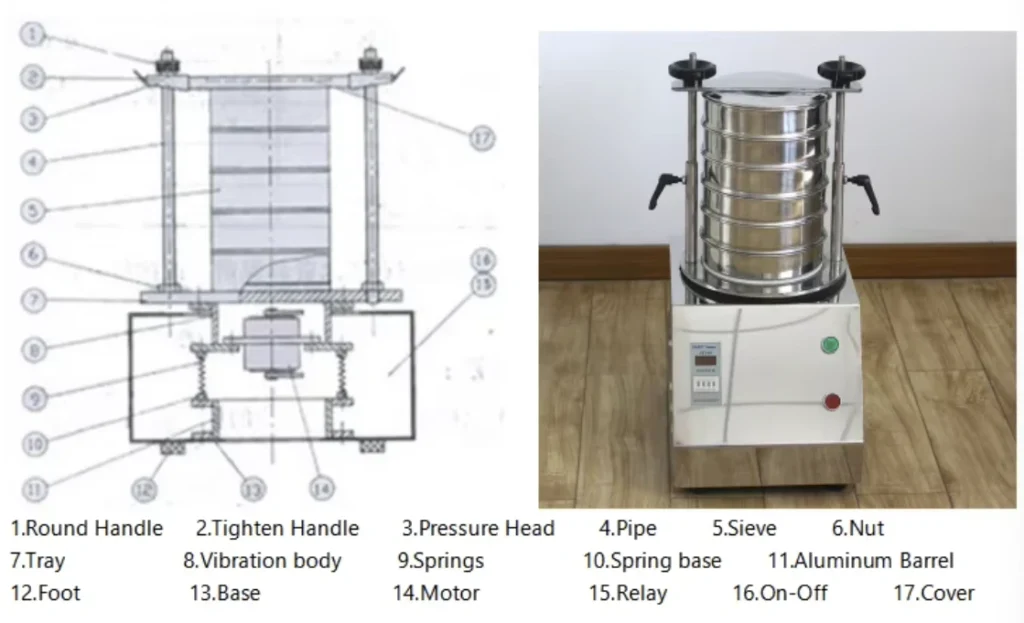

Parts

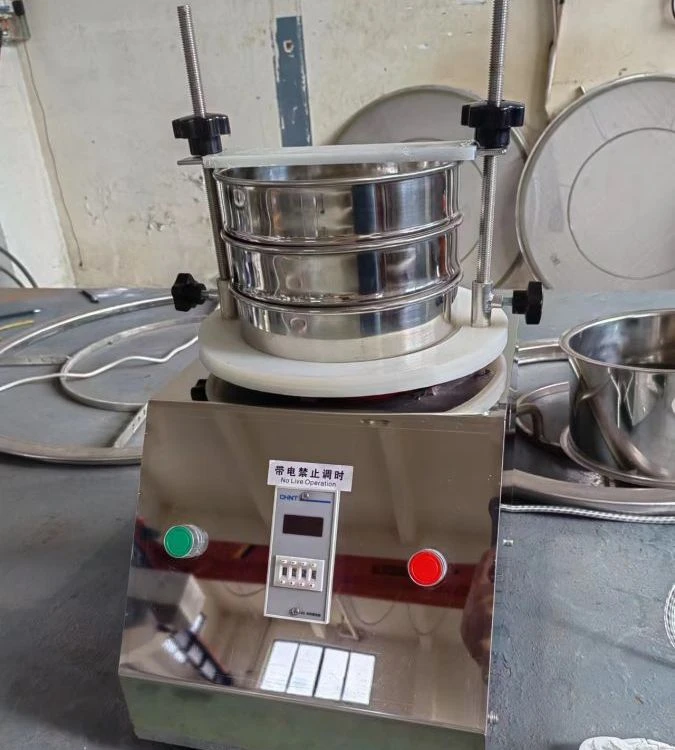

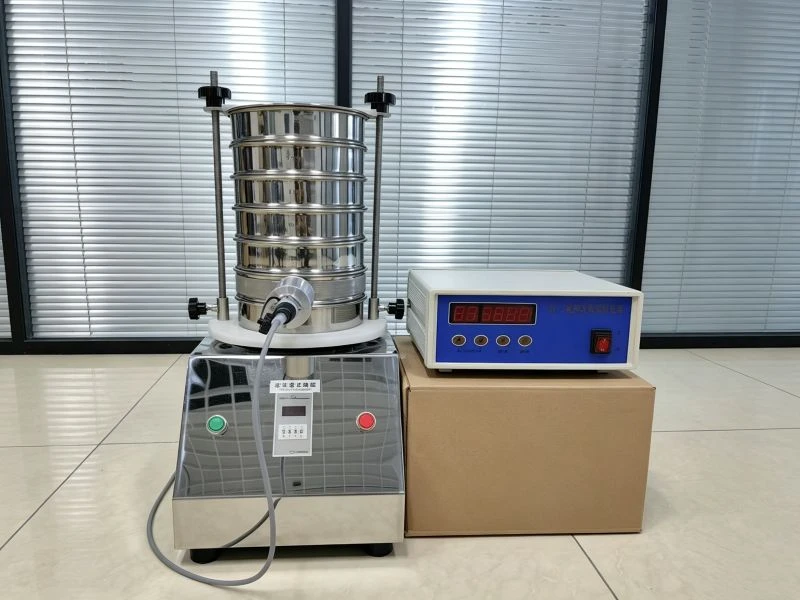

The test lab sieve shaker consists of a clamping system, sieve stack, vibration base, and motor-driven mechanism for precise particle size analysis.

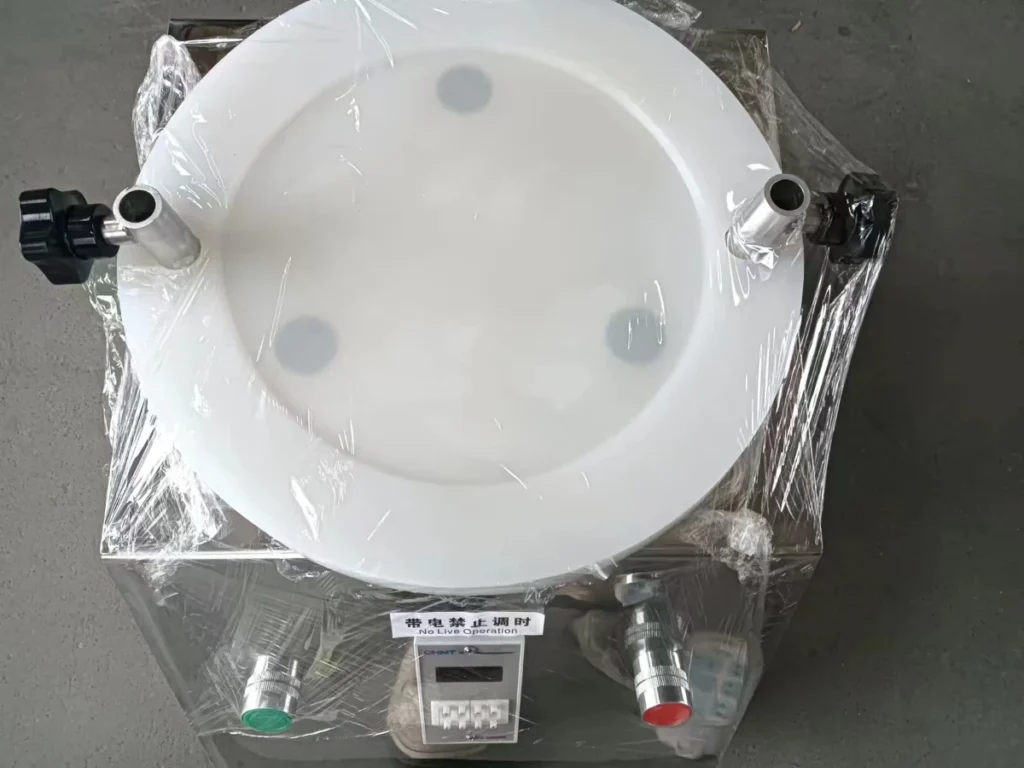

Base

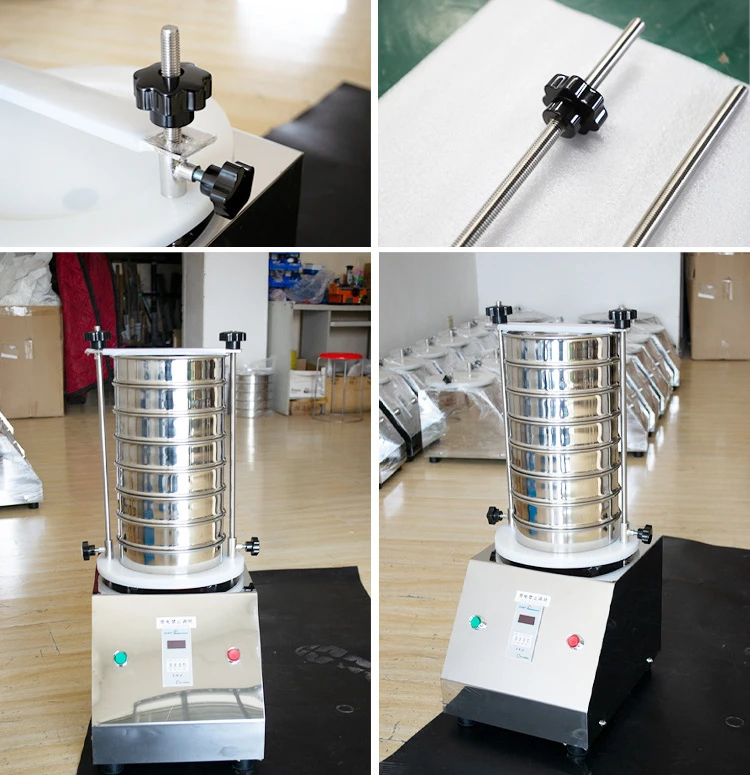

Multi-layer network

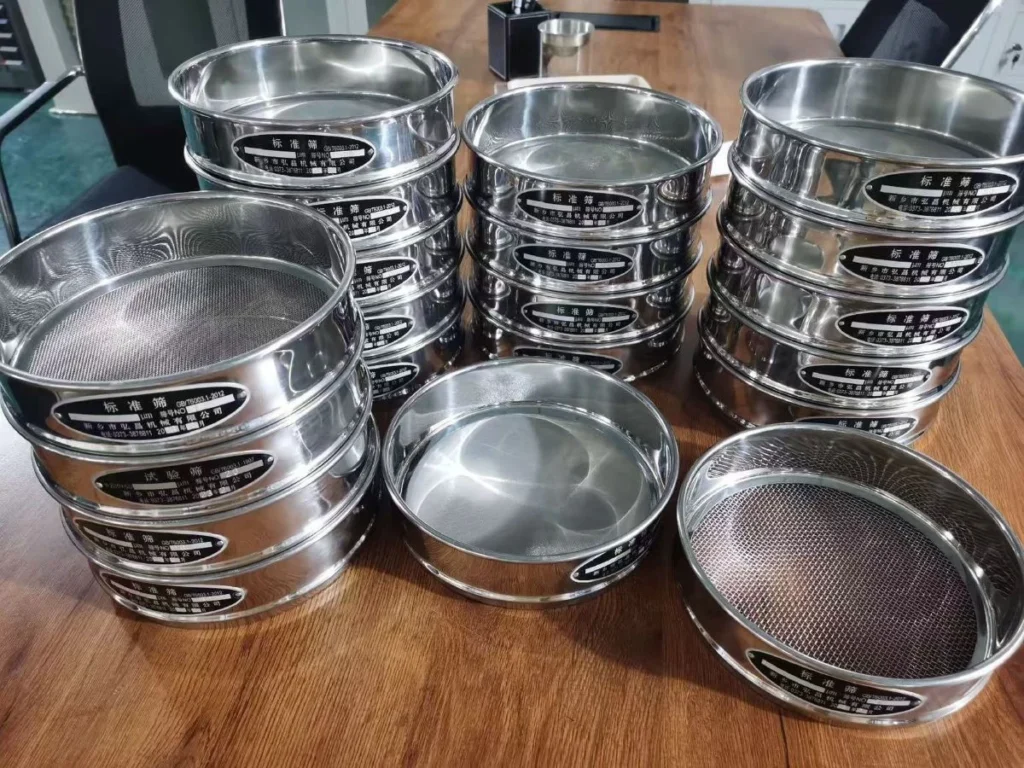

Sieve frame

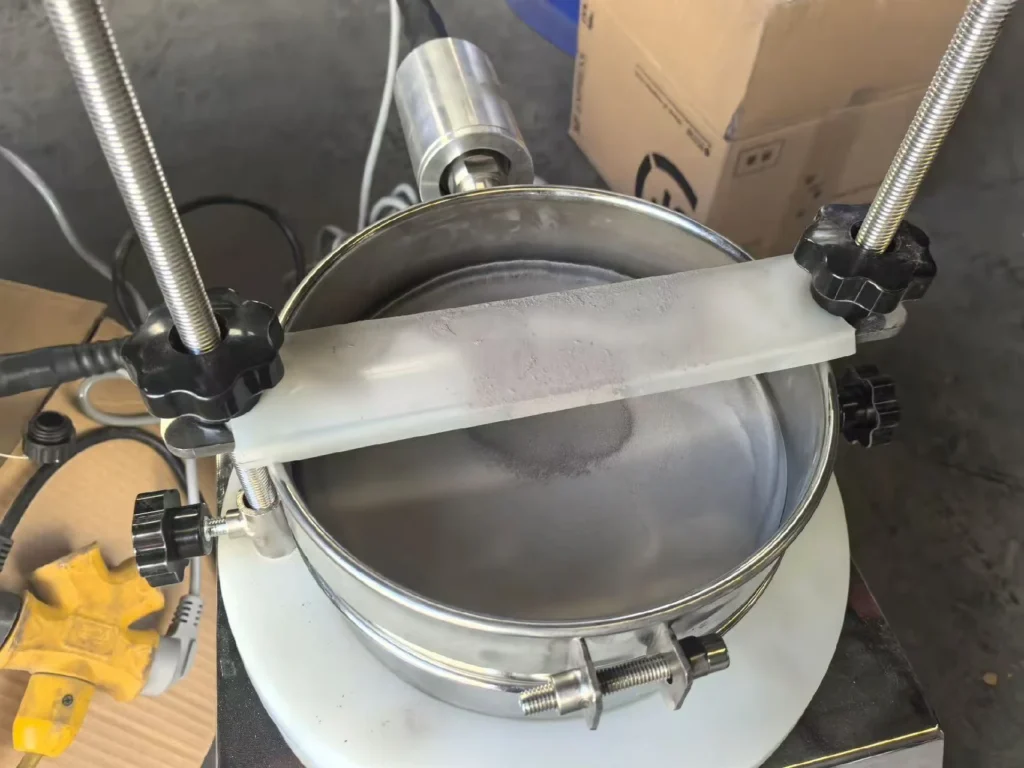

Sieve surface
Features
- The lab sieve shaker features an exquisite exterior design, with a logical and secure arrangement of relay circuitry.
- The unit is lightweight and compact, making it convenient to position and relocate as needed.
- During the inspection process, it delivers high screening precision and efficiency, capable of sifting particles ranging from 0.025 mm to 3 mm.
- Enhanced through nanotechnological innovation, the test sieve is specially fitted with four high-elasticity rubber springs at its base, effectively and ingeniously eliminating any vibration of the unit while resting on a desktop or workbench.
- The machine operates with minimal noise during analytical screening, allowing for practical, real-world product verification.
- The sieve housing and vibrating plate of the 300T standard test sieve are meticulously crafted from high-quality SUS304 stainless steel.
- The screening duration is precisely controlled via a time relay, ensuring the inspection time is regulated with absolute accuracy—down to the very second.
- The sieve frame is made of SUS304 (0Cr18Ni9) stainless steel with a 0.6 mm wall thickness and a polished finish.The mesh is securely fixed by tin soldering, ensuring stability without loosening and heat resistance up to 300°C.
How to Choose the Right Lab Sieve Shaker？

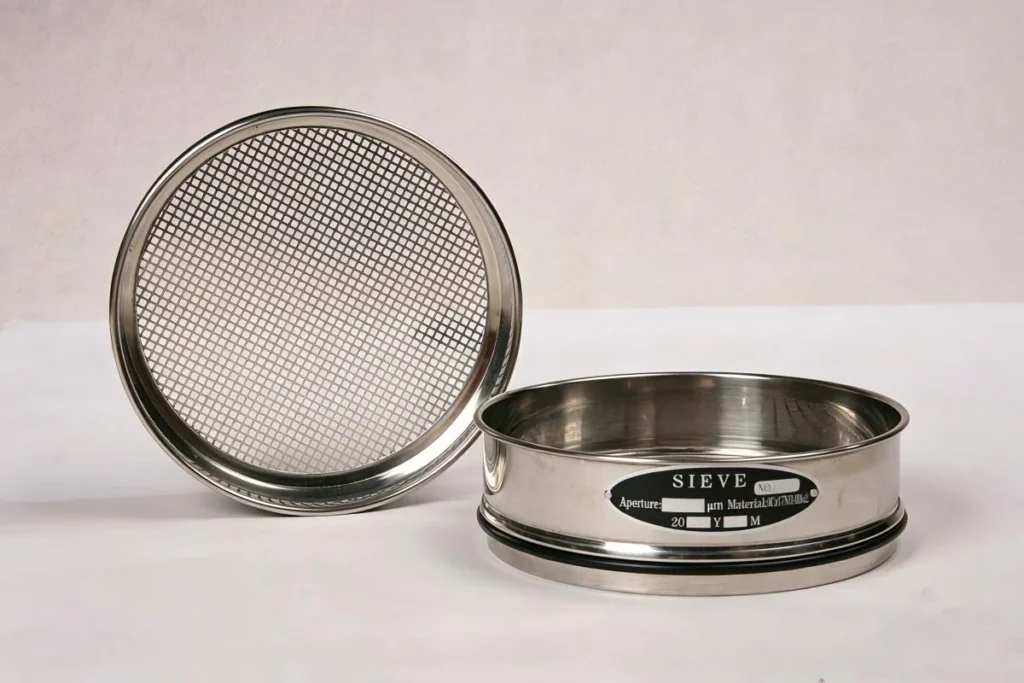

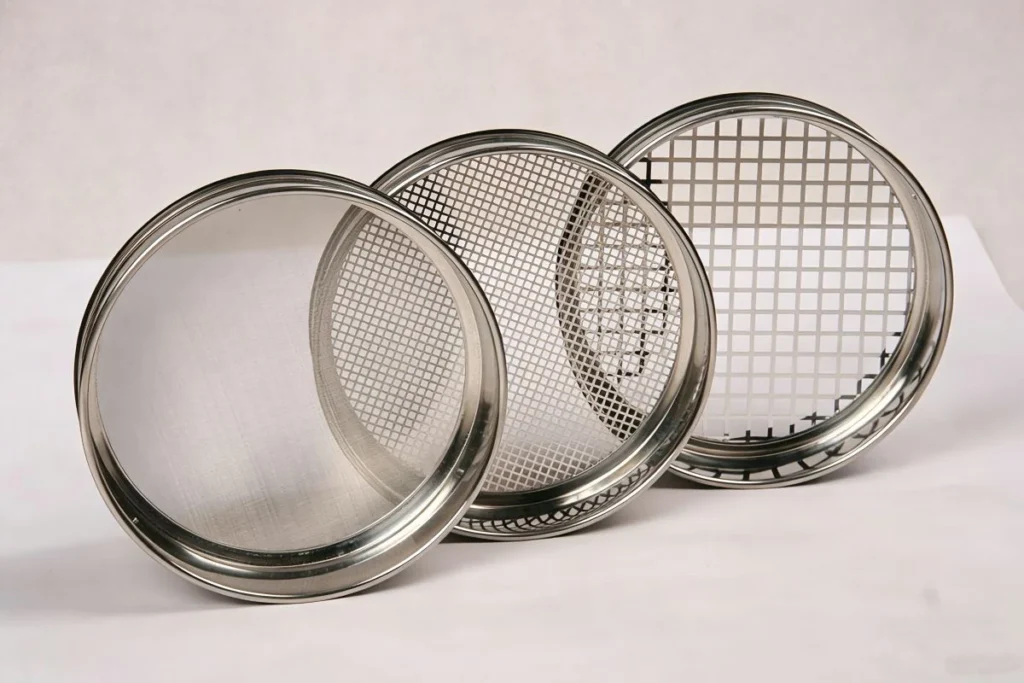

Lab sieve shakers are primarily available in three materials: woven wire mesh, perforated plate screens, and electroformed screens. These three materials have different mesh sizes, and the choice depends on the material being sieved. As long as you have a clear understanding of the particle size of the material and the characteristics of the sieve mesh, it is not difficult to select the test sieve that meets your needs.
Woven wire mesh
Materials include high-quality stainless steel, brass, tin bronze, nickel, and molybdenum. They are low-cost and highly durable, but offer relatively lower precision, and the mesh may deform. The precision of the mesh can be controlled by enlarging or reducing the mesh size. Generally, manufacturers capable of producing high-precision screens must ensure mass production and select screens that comply with the GB/T 6003.1-1997 standard from a large inventory of high-precision screens; these are most commonly used in the diamond industry.

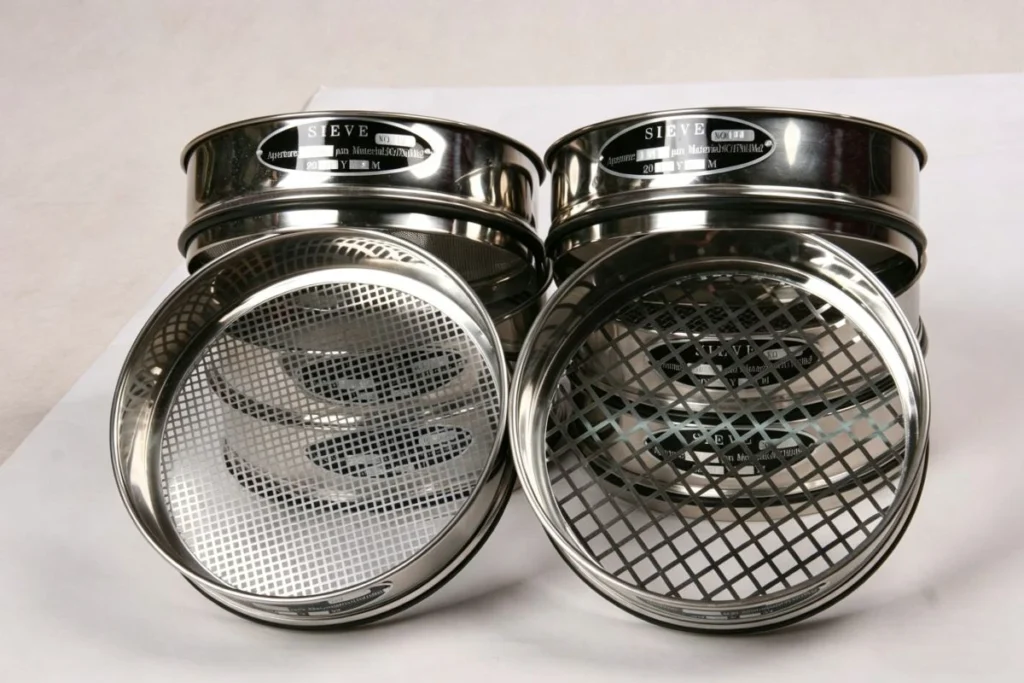

Punched metal screens
These feature uniform punching precision and are resistant to deformation. They are primarily used for screening large particles and come in both round and square hole configurations. They are commonly used in round-hole slag powder collection screens and round-hole sand and gravel screens. Electroformed screens: Manufactured using electrochemical methods, these offer the highest precision, theoretically reaching 1 micron. However, due to variations in manufacturers’ processes and molds, there is significant variation in quality.
Technical Specifications
Models like Tumbler Screen, Linear Vibrating Sieve, 450 Filter Screen, and High Frequency Screen complement our lab sieve shakers for broader screening applications.Please refer to the following data (customization available)
| No. | Item | Unit | Parameter |
| 1 | Number of Layers | layer | 1–7 |
| 2 | Screen Diameter / Length | mm | 200×50 / 300×60 / 400×75 |
| 3 | Screening Range | mm | 0.005–250 (250 mm max) |
| 4 | Noise | dB | ≤50 |
| 5 | Feed Capacity (Single Time) | g | ≤500 / 1000 / 2000 |
| 6 | Amplitude | mm | ≤5 |
| 7 | Voltage | V | 220V / 50Hz |
| 8 | Rotational Speed | r/min | 1440 |
| 9 | Power | kW | 0.125 / 0.18 / 0.25 |
| 10 | Timer Range | min | 0–99 |
| 11 | Overall Dimensions | mm | 400×300×370 / 470×430×370 / 600×490×370 |
| 12 | Total Weight | kg | 25 / 40 / 65 |
Applications
The following are common vibrating sieving machine industries
Pharmaceutical Industry:
APIs, capsules, tablets
Food & Beverage Industry
Flour, sugar, additives
Chemical Industry
Catalyst powders, pigments, resins
Soil & Environmental Testing
Soil, sand, minerals
Mining & Metallurgy
Iron ore, coal powder, limestone, metal powders
Material Science & Research:
Particle size analysis, grading, and quality control of powders and granules
Lab Sieve Shaker Customization
Our lab sieve shakers can be fully customized to meet specific testing requirements across different industries and materials.
- Sieve Diameter & Layers: Compatible with various standard sizes and multi-layer configurations
- Mesh Size Range: Wide selection of sieve mesh sizes for precise particle analysis
- Vibration Mode: Adjustable amplitude and frequency for different material characteristics
- Material of Construction: Stainless steel (304/316L) or other special materials
- Control System: Digital timer, variable speed control, or PLC system
- Voltage & Standards: Custom voltage, frequency, and international compliance options
- Special Design: Noise reduction, sealed structure, anti-corrosion, or cleanroom design
Designed for accuracy, stability, and flexibility, our customized solutions ensure optimal performance for powders, granules, and bulk materials.

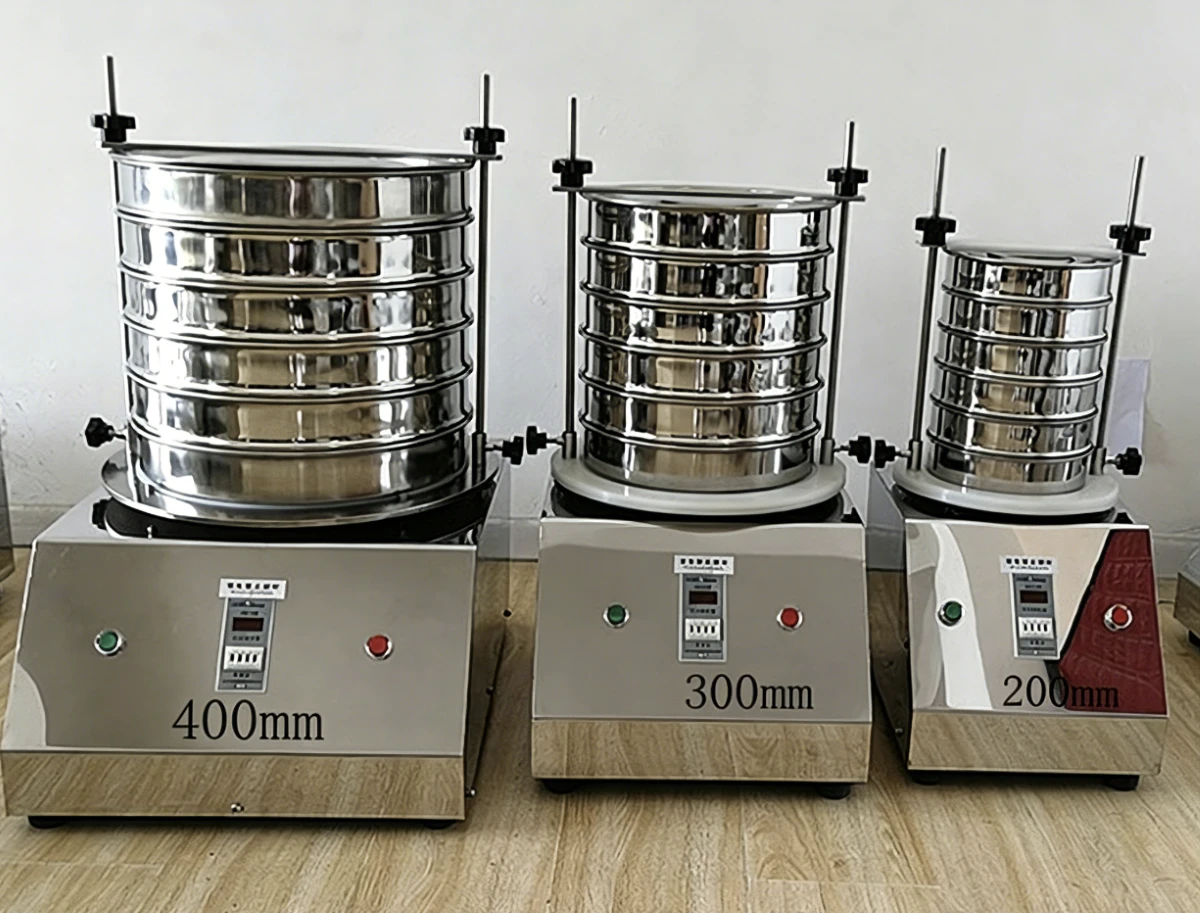

Size

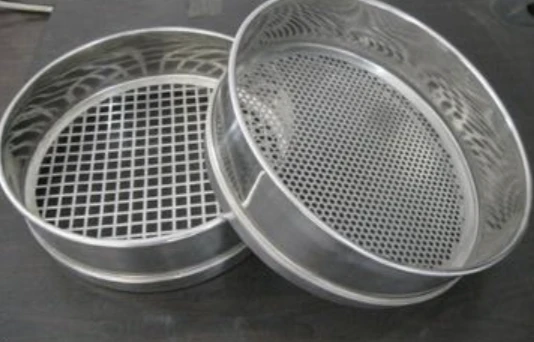

Square hole

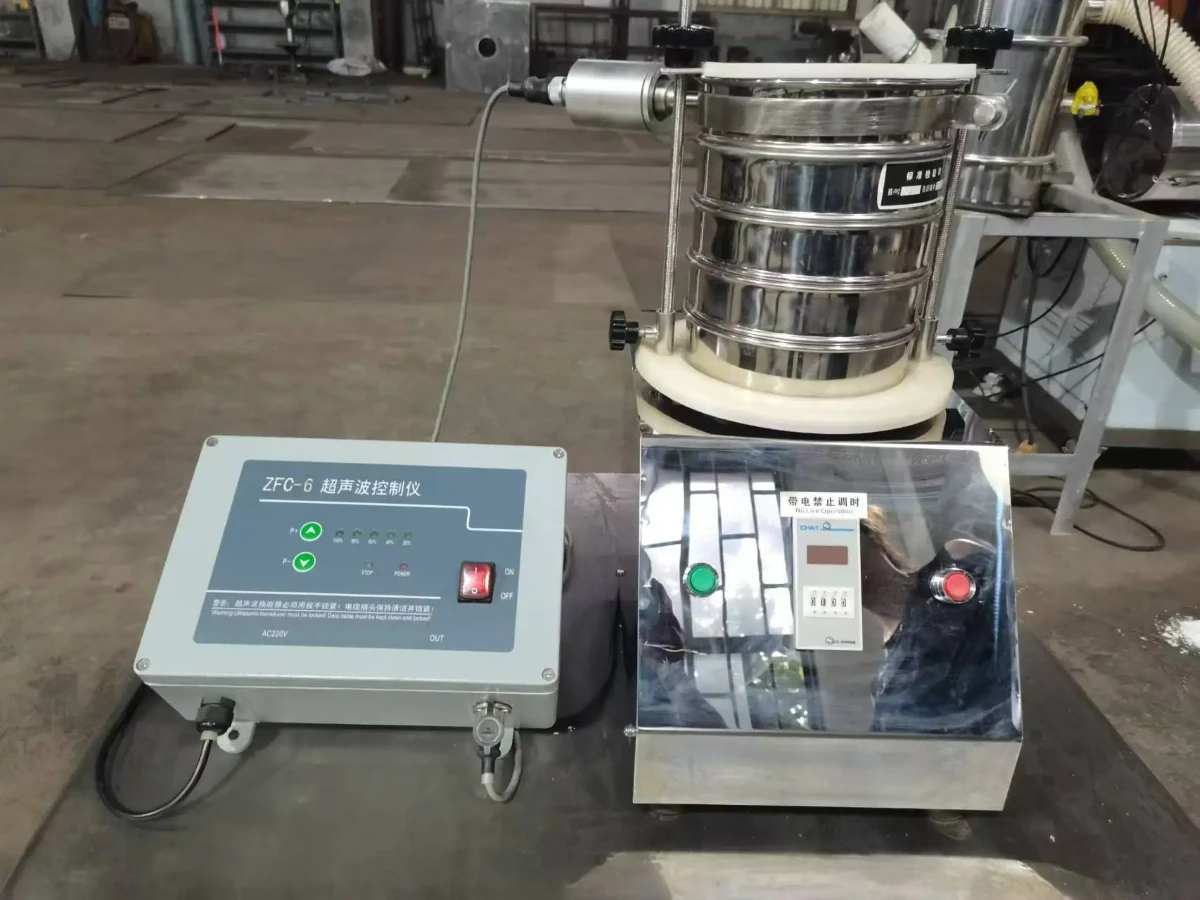

Ultrasound
