Difference Between Linear Vibrating Screen and Circular Vibrating Screen

Introduction

In industries ranging from food processing, pharmaceuticals, and chemicals to mining, linear vibrating screens and circular vibrating screens are indispensable pieces of equipment on production lines. They directly influence the purity and particle size consistency of the final product, as well as the overall efficiency and cost-effectiveness of the production line. Although both are used for particle separation, they differ significantly in terms of motion trajectory, screening mechanism, and application scenarios.

Unsure which equipment best suits your material’s particle size, throughput requirements, and operating conditions? This article provides an in-depth analysis of the working principles, advantages, disadvantages, and application scenarios of both types of screens. It aims to assist engineers and procurement professionals in selecting the optimal solution based on specific material characteristics—meeting needs that range from high-volume bulk material handling to high-precision fine particle classification.

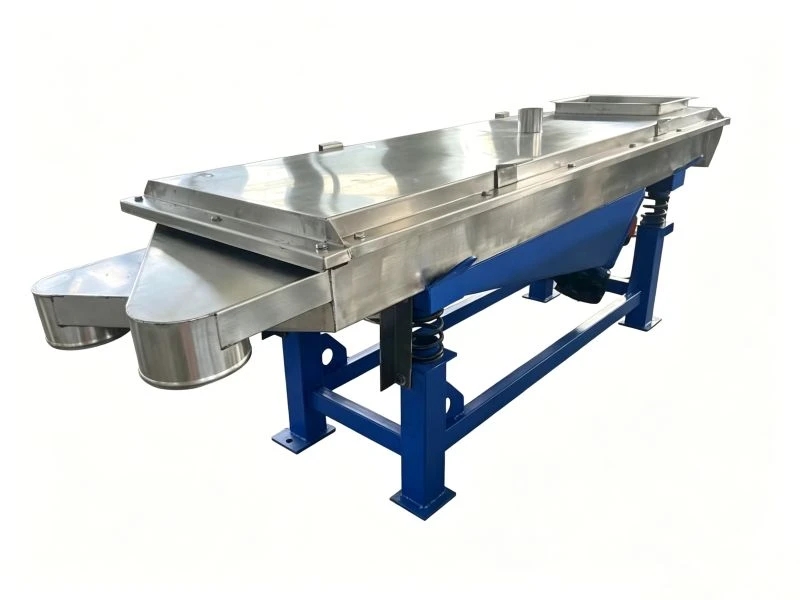

What Is a Linear Vibrating Screen?

Linear vibrating screens process and move products in a straight line; the use of rectangular screen decks allows the material more time to pass through the mesh. These screens can also effectively transport product, sometimes serving as a substitute for traditional conveyors. Their length gives fine material the opportunity to separate from larger particles and pass through the screen. This makes linear screens particularly well-suited for dedusting or dewatering operations—such as removing small, loose crumbs and flour from finished biscuits.

Working Principle of Linear Vibrating Screen

A linear vibrating screen utilizes two counter-rotating motors operating at the same frequency to propel material forward in a linear, bouncing motion across the screen surface. Particles smaller than the screen apertures pass through the mesh to the layer below, thereby separating a previously disordered mixture of particles—sorting them by size to form an arrangement with fine particles at the bottom and coarse particles at the top—to achieve the objective of screening and grading the material.

Structural Features

The elongated rectangular structure provides a larger screening area, enabling higher throughput.It can be configured with single or multiple layers depending on required particle size classification.Feeding and discharge positions can be adjusted to integrate seamlessly into different production line layouts.

Advantages

Designed for large-scale production, it can handle significant volumes of material continuously.It performs particularly well in pre-screening and bulk material classification.Its structure supports conveyor systems and continuous processing setups, improving overall plant efficiency.

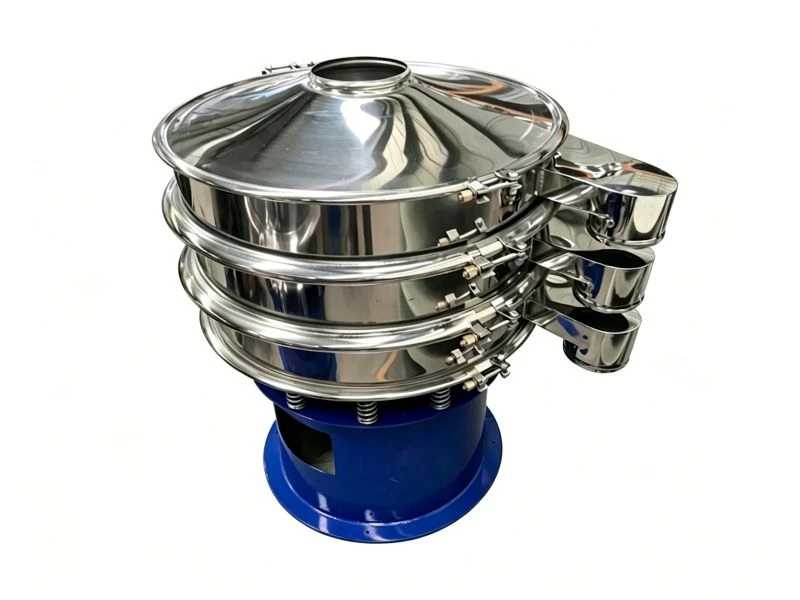

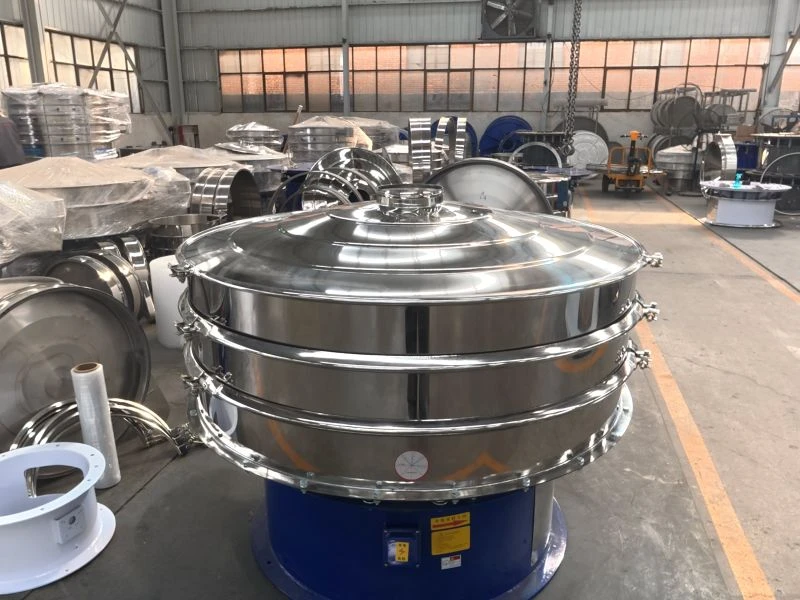

What Is a Circular Vibrating Screen?

The rotary vibrating screen utilizes the simple adjustment of counterweights on the motor shaft and the resulting three-dimensional vibration to screen materials. It can be used to remove broken or undersized products and provides up to five levels of classification in a single operation—achieving precise particle size distribution and screening capabilities of up to 500 mesh—with configurations selectable based on the specific characteristics of the material being processed.

Working Principle of Circular Vibrating Screen

The exciting force generated by the exciter of a circular vibrating screen is a 360-degree rotational force. Material on the screen surface undergoes a circular or elliptical jumping motion resembling a “parabolic” trajectory. This throwing action is more vigorous, allowing the material to remain airborne slightly longer and ensuring more thorough contact with the screen mesh, thereby achieving the screening objective.

Structural Features

The round frame structure provides balanced vibration distribution and stable operation.It can be configured with one or multiple decks to achieve different particle size classifications.High-quality springs are used to reduce vibration transfer to the foundation, improving machine stability and service life.

Advantages

It delivers accurate particle size separation, especially for fine powders and granular materials.Widely used in industries requiring strict product consistency and quality control.The multi-directional vibration helps reduce mesh clogging and improves continuous operation efficiency.

Linear Vibrating Screen vs Circular Vibrating Screen:Differences

Comparison Dimension	Linear Vibrating Screen	Circular Vibrating Screen
Working Principle	Linear motion (straight-line vibration) driven by dual motors	Circular / elliptical motion driven by eccentric block system
Screening Efficiency	High throughput, optimized for large capacity production	Higher precision, optimized for fine classification
Material Suitability	Coarse to medium particles, bulk materials	Fine powders and granular materials requiring high accuracy
Processing Capacity	High capacity, suitable for continuous industrial production lines	Medium capacity, suitable for precision screening systems
Industry Applications	Mining, construction materials, coal processing	Food processing, pharmaceuticals, chemical fine powder industry

Industrial Applications of Vibrating Screens

Vibrating screens are widely used in multiple industries for particle separation and material grading. The choice between linear vibrating screen and circular vibrating screen depends mainly on material type, required precision, and production capacity.

Which Vibrating Screen Should You Choose?

The core selection standard for vibrating screens boils down to 3 key factors: your core production goal, material characteristics, and on-site layout conditions.

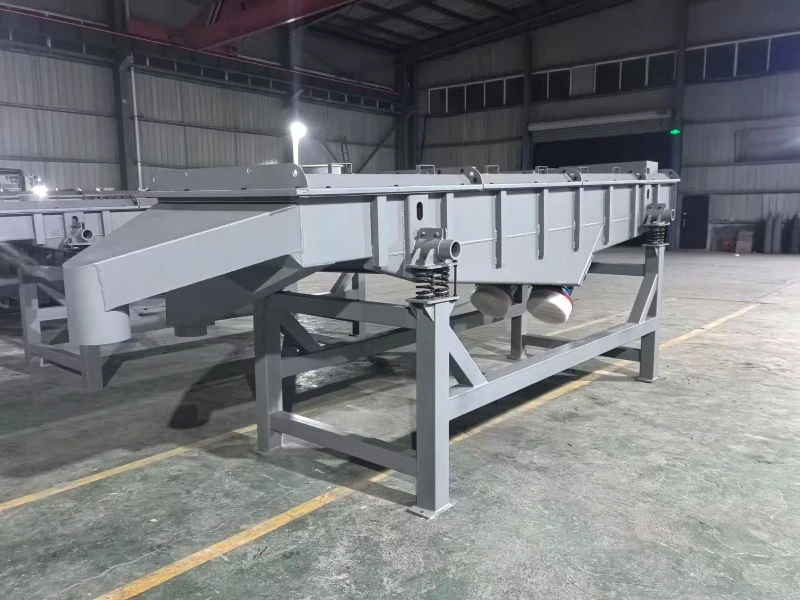

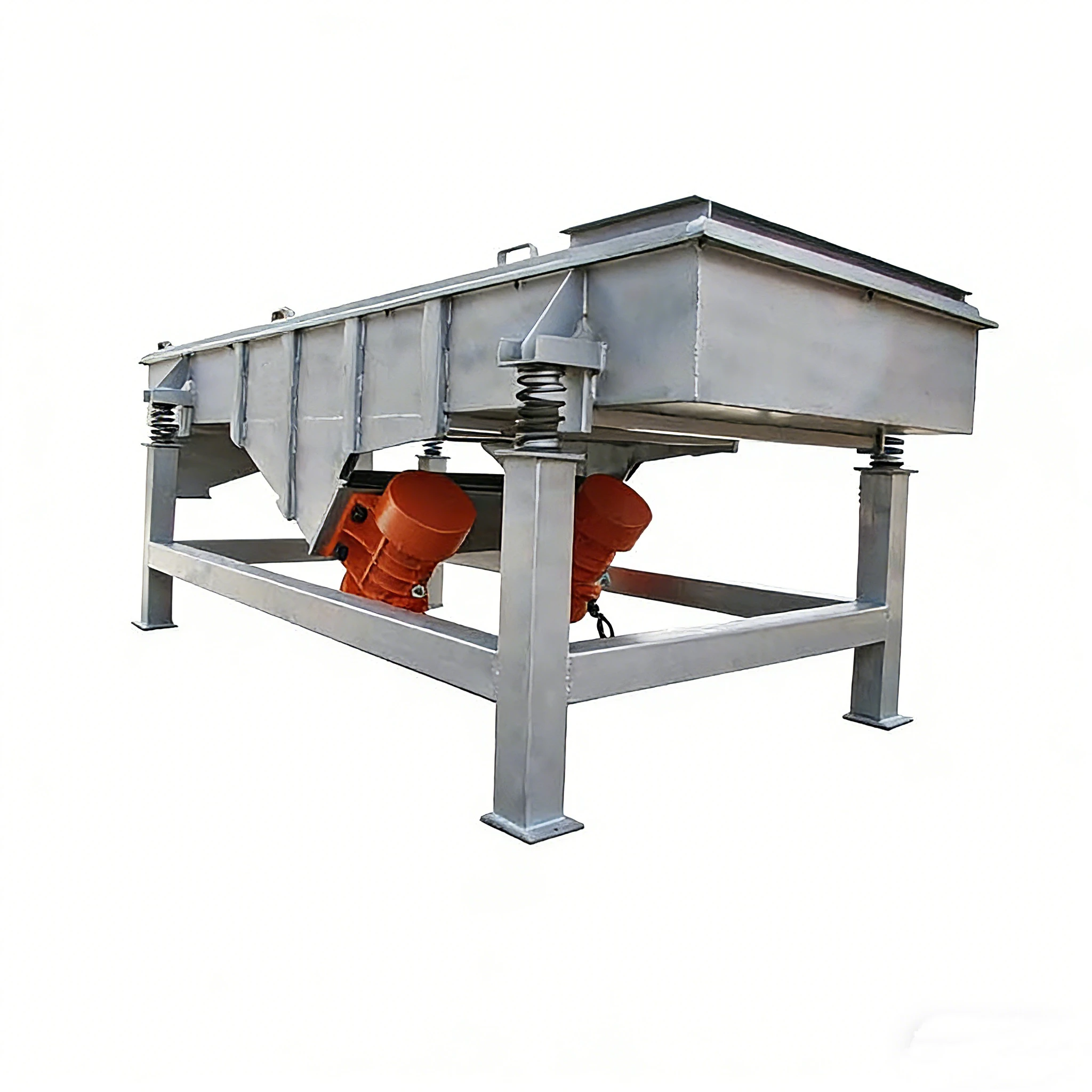

Choose Linear Vibrating Screen

Choose Circular Vibrating Screen

Common Screening Problems in Industry

Screen mesh clogging

This may be caused by high material moisture, high viscosity, or uneven feeding. Solutions include controlling material moisture and adjusting the feeding mechanism to ensure uniform feed; for sticky materials, consider installing a screen cleaning device or using an anti-clogging mesh design.

Vibration motor malfunction

Issues such as the motor failing to run, overheating, or abnormal noise. Causes may include motor damage, power supply failure, or bearing wear. Inspect the motor’s power wiring and bearing lubrication; replace the motor or bearings promptly if damage is found.

Abnormal noise from the screen box

This may be caused by foreign objects inside the box, loose or damaged springs, or loose component connections. Remove any foreign objects, inspect the springs and connections, and tighten loose parts or replace damaged springs.

Reduced screening efficiency

This may result from screen mesh wear, changes in vibration parameters, or variations in material properties. Replace worn screen mesh promptly, readjust vibration motor parameters (such as exciting force, frequency, and amplitude), and adjust the screening process according to changes in material properties.

How to Improve Screening Efficiency?

Ultrasonic System Integration

Integrating an ultrasonic system can effectively reduce mesh clogging and improve fine powder screening performance by breaking down particle adhesion and keeping the screen surface continuously clean.

Proper Mesh Selection

Selecting the correct mesh size and material is critical to achieving stable screening efficiency, as mismatched mesh specifications often lead to low throughput or inaccurate particle separation.

Feeding Control Optimization

Stable and evenly distributed feeding helps maintain consistent material flow on the screen surface, preventing overload or uneven layering that can significantly reduce screening efficiency.

Equipment Customization

Customizing the vibrating screen based on material characteristics, capacity requirements, and production environment ensures better adaptability, higher efficiency, and more stable long-term operation.

Conclusion

The main difference between linear vibrating screen and circular vibrating screen lies in their motion pattern, screening purpose, and suitable material types. Linear vibrating screens are generally preferred for high-capacity, coarse to medium material processing, while circular vibrating screens are better suited for high-precision fine powder classification and anti-clogging applications. The correct selection should always be based on material characteristics, required capacity, and screening accuracy rather than a single performance factor.

If you are unsure which vibrating screen is most suitable for your production line, a professional evaluation based on your material properties can significantly improve efficiency and reduce operating costs. For customized solutions, technical selection support, or equipment recommendations, feel free to contact us to get a tailored vibrating screening solution for your specific industry application.
