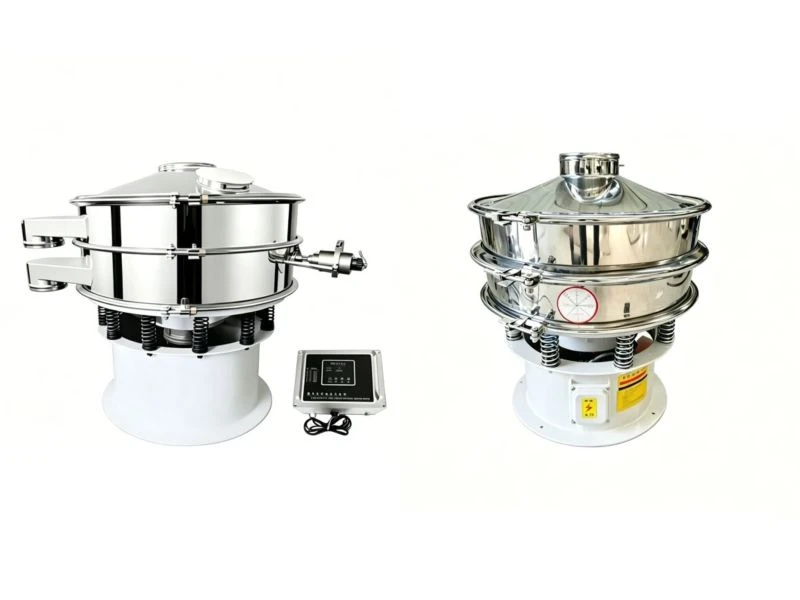

Ultrasonic Vibrating Screen vs Traditional Vibrating Screen: Which One Is Better?
Choosing between an ultrasonic vibrating screen and a traditional vibrating screen depends on your material characteristics, screening accuracy requirements, and production goals. While traditional vibrating screens are ideal for high-capacity screening of coarse or bulk materials, ultrasonic vibrating screens excel at processing ultra-fine, lightweight, and difficult-to-screen powders by significantly reducing mesh blinding and improving separation efficiency.
This article compares the options in terms of operating principles, screening performance, and suitable materials to help you select the screening solution best suited to your needs.
Why Compare Ultrasonic and Traditional Vibrating Screens?
Vibrating screens are widely used across various industries. While ultrasonic vibrating screens and traditional vibrating screens look very similar, selecting the wrong equipment can lead to reduced throughput, frequent screen blinding, inconsistent product quality, and increased operating costs. Understanding the differences between these two types of industrial screening equipment helps manufacturers achieve higher production efficiency.The best choice depends on your material characteristics, particle size, screening accuracy, and production goals.
What Is an Ultrasonic Vibrating Screen?
The ultrasonic vibrating screen is a type of vibrating screen that integrates an ultrasonic system into the standard rotary vibrating screen design. By combining low-frequency vibration with high-frequency ultrasonic waves, it enables the precise separation of fine particles ranging from 20μm to 1000μm. The ultra-fine powder is subjected to high-speed action, keeping the material on the screen surface in a suspended state; this effectively prevents mesh clogging caused by factors such as adhesion, friction, settling, and wedging.
Working Principle of Ultrasonic Vibrating Screens
First, a vibrating motor drives an eccentric weight to generate standard circular vibration, causing the material to disperse evenly across the screen surface. Next, an ultrasonic generator converts electrical energy into high-frequency vibration (typically 20–40 kHz); this energy is transmitted via a transducer to the screen mesh, inducing micron-level, high-frequency oscillation. These high-frequency sound waves break up agglomerates, allowing individual fine particles to pass through the mesh independently, thereby significantly enhancing screening precision.
Advantages
The ultrasonic system solves the problem of mesh clogging caused by static electricity and agglomeration in ultrafine powders. It offers higher screening precision and greater processing capacity; furthermore, by eliminating the need for bouncing balls, it extends screen lifespan and prevents contamination from rubber debris. This equipment is specifically designed for fine powder materials such as metal powders, lithium battery materials, pharmaceutical powders, and food-grade micronized powders.
What Is a Traditional Vibrating Screen?
As a highly efficient screening device, the traditional vibrating screen is widely used in industrial production, offering advantages such as simple structure, ease of operation, and low maintenance costs. The screen mesh is made of special materials—characterized by high strength, wear resistance, and ease of replacement—capable of meeting screening requirements for various particle sizes.
Working Principle of Traditional Vibrating Screens
The excitation source for the rotary vibrating screen is a vertical vibration motor fixed within the base cylinder. Eccentric weights at the top and bottom of the motor convert its rotational motion into a three-dimensional movement—comprising horizontal, vertical, and inclined components—which is then transmitted to the screen surface, causing the material to move outward across it and thereby achieving the screening objective.
Advantages
This screening equipment features low costs, a simple internal structure, and easy routine maintenance. It is equipped with an anti-clogging system using bouncing balls and offers a cost-effective solution for multi-stage particle size classification.
Comparison Table: Ultrasonic Vibrating Screen vs. Traditional Vibrating Screen
| Feature | Traditional Vibrating Screen | Ultrasonic Vibrating Screen |
| Vibration System | Single low-frequency motor vibration | Low-frequency motor + 36 kHz ultrasonic vibration |
| Mesh Cleaning | Rubber bouncing balls clean the mesh through mechanical impact | Continuous ultrasonic self-cleaning minimizes mesh blinding |
| Recommended Mesh Range | 2–500 mesh (coarse to medium materials) | 20–625 mesh (fine to ultra-fine powders) |
| Key Benefits | Cost-effective, simple design, high capacity for general screening | High precision, anti-clogging, improved throughput, extended mesh life |
| Limitations | Prone to mesh blinding when screening fine powders | Higher initial purchase cost |
| Typical Applications | Grain, sand, aggregates, plastic pellets, fertilizers, and bulk chemicals | Battery materials, pharmaceuticals, food powders, metal powders, ceramics, and fine chemicals |
Which Materials Are Best Suited for Each Type?
Generally, traditional vibrating screens are best suited for handling coarse-grained materials and bulk solids, whereas ultrasonic vibrating screens are specifically designed for screening fine powders, separating ultrafine powders, and processing materials prone to screen blinding, agglomeration, or static electricity buildup. The following outlines the suitable materials and application scenarios for each type of vibrating screen.
Materials Suitable for Ultrasonic Vibrating Screens
The ultrasonic vibration system minimizes screen blinding and enhances screening efficiency. It is suitable for screening fine and ultra-fine powders, high-mesh applications (20–625 mesh), anti-blinding requirements, and the processing of high-value materials demanding exceptional screening precision.
Applicable Materials
Silicon powder, various metal powders such as stainless steel, aluminum, copper and nickel powder, lithium battery materials, pharmaceutical powders, ceramic powder, graphite powder, calcium carbonate (CaCO₃), food powders including flour, starch, milk powder and sugar, as well as chemical additives, pigments, resin and polymer powders.
Materials Suitable for Traditional Vibrating Screens
Traditional vibrating screens are better suited for screening coarse-grained materials and separating bulk materials at high throughput rates. They are ideal for coarse particle screening, bulk material separation, high-volume screening, and general industrial applications where extremely high screening precision is not required.
Applicable Materials
Sand, gravel, crushed stone and aggregates, coal, grain and seeds, plastic pellets, fertilizers, minerals and ores, bulk chemical raw materials, as well as recycled materials.
Cost Comparison: Is an Ultrasonic Vibrating Screen Worth the Investment?
Traditional vibrating screens rely on rubber bouncing balls to keep the screen mesh clean. However, when used for fine powder screening—such as metal powders, lithium battery materials, graphite, calcium carbonate (CaCO₃), and pharmaceutical powders—they are highly susceptible to mesh blinding. This results in faster screen mesh wear, frequent replacement of consumable parts such as bouncing balls and screen meshes, and repeated production shutdowns for manual mesh cleaning. These issues not only increase maintenance and labor costs but also lead to material loss, reduced productivity, and lower overall production efficiency.
An ultrasonic vibrating screen is equipped with an ultrasonic generator, transducer, and resonant screen frame, resulting in an initial purchase cost that is typically 30%–50% higher than a traditional vibrating screen. However, when evaluating the total cost of ownership (TCO) over the equipment’s service life, ultrasonic screening offers a clear economic advantage for fine powder screening, high mesh screening, and applications involving materials that are prone to mesh blinding.
When comparing costs, manufacturers should look beyond the initial purchase price and consider long-term factors such as maintenance expenses, production efficiency, equipment downtime, and return on investment (ROI). For many high-value manufacturing processes, the increased screening efficiency and reduced maintenance requirements of an ultrasonic vibrating screen can quickly offset its higher upfront investment.
How to Choose the Right Vibrating Screen
Material Characteristics
For fineness levels below 200 mesh, traditional screening is an option; however, ultrasonic screening is recommended for certain special materials in the 100–200 mesh range, and it is the preferred choice for mesh sizes above 200.
Ultrasonic screening is essential to prevent clogging when handling highly viscous materials (e.g., adhesives), materials prone to moisture absorption, or materials that tend to agglomerate or generate static electricity.
Production Capacity Requirements
Select the equipment diameter (e.g., Model 800 or Model 1200) based on the required hourly throughput (tons/hour).
Material Requirements
Use 304 or 316 stainless steel for food and pharmaceutical applications; for corrosive chemical environments, select materials with acid- and alkali-resistant coatings.
Conclusion
Traditional vibrating screens suit low-budget coarse material screening with simple maintenance, yet struggle with ultrafine powder clogging and fast screen loss. Ultrasonic vibrating screens solve fine powder screening pain points via dual vibration technology, offering higher accuracy, bigger output and lower long-term running costs despite higher initial investment.
