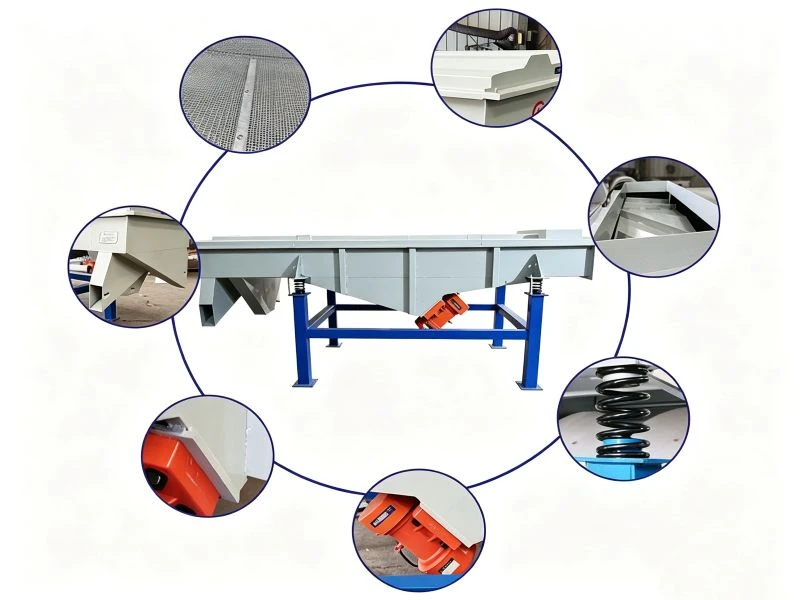

Square Linear Vibrating Screen

The square linear vibrating screen is a high-efficiency industrial screening device designed for precise particle separation and continuous classification of powders, granules, and bulk solids. With customizable screen mesh, modular structure, and durable construction options (carbon steel or stainless steel), it provides reliable performance for both fine powder classification and large-capacity screening applications. It is widely used in the abrasive, chemical, food, pharmaceutical, fertilizer, and plastic granule industries.

Model:YJZ520, YJZ525, YJZ1020, YJZ1030, YJZ1530
Number of Layers: 1–6 (Customizable)
Material: 304/316 Stainless Steel, Carbon Steel
Power: 2 × 0.75 kW / 2 × 3.0 kW (Standard or Explosion-proof versions available)
Capacity: 10 kg–10 tons/hour

What Is a Square Linear Vibrating Screen?

The Square linear vibrating screen, also known as a linear screen, is a screening device widely used across various industries. It is a mechanical device that primarily utilizes a vibration motor as the source of vibration, causing the material on the screen mesh to be thrown upward while moving forward in a straight line. It features low energy consumption, high throughput, a simple structure, ease of maintenance, a fully enclosed design that prevents dust leakage, and automatic discharge. Due to its performance and characteristics, it is ideally suited for assembly line operations.

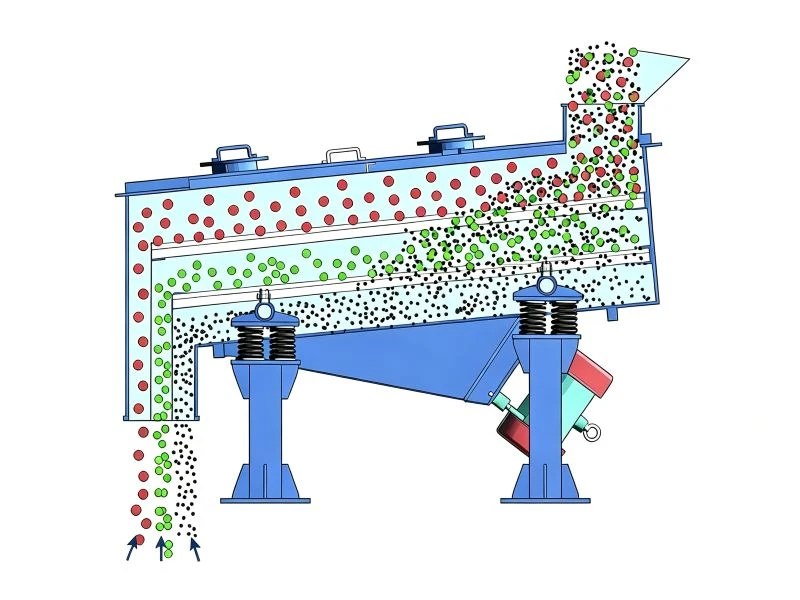

Working Principle of Square Linear Vibrating Screen

The square linear vibrating screen is a general-purpose vibrating screening device driven by two vibrating motors. When the two vibrating motors rotate synchronously in opposite directions, the excitation forces generated by their eccentric blocks cancel each other out in the direction parallel to the motor axes.

When the eccentric blocks rotate in the same direction, the resultant force perpendicular to the motor axes reaches its maximum value. Therefore, the motion trajectory of this series of vibrating screens is a straight line.

The two motor shafts are at a certain angle to the screen surface. Under the combined action of the excitation force and the material’s own gravity, the material is thrown up on the screen surface and jumps forward in a straight line, thereby achieving the purpose of screening and grading.

Features of Square Linear Vibrating Screen

High Screening Efficiency

Screen aperture sizes range from 3/8 inch (10 mm) to 400 mesh (38 microns), with screening efficiencies exceeding 96%.

Large Processing Capacity

Screening areas range from 500 mm to 1,500 mm wide and 1,500 to 4,000 mm long, allowing for a processing capacity of up to 20 tons per hour.

Multi-Stage Screening Capability

Single or multi-layer configurations are available, separating 2-7 different product specifications at a time.

Dust-Free Screening

Fully enclosed structure with automatic unloading of all incoming material, eliminating material buildup and making it ideal for assembly line operations.

Flexible Adjustment

Adjustable screen angle balances screening accuracy and output, with a maximum angle of 25°.

Easy Screen Replacement

Screen design allows for convenient and quick screen replacement (only 3 to 5 minutes). The design also allows for the use of various screen materials (stainless steel, nylon, special nylon, PP mesh).

Applications of Square Linear Vibrating Screen

Chemical Industry

Calcium Carbonate ,Titanium Dioxide (TiO₂) ,Activated Carbon , Carbon Black ,PVC Powder ,Chemical Fertilizers

Food & Beverage Industry

Wheat Flour ,Starch ,Sugar , Salt , Milk Powder , Spice Powder

Pharmaceutical Industry

Pharmaceutical Powders ,APIs ,Herbal Extract Powder ,Lactose Powder ,Vitamin Powder ,Glucose Powder

Agriculture & Feed Industry

Animal Feed ,Corn ,Soybeans , Wheat ,Organic Fertilizer ,Compound, Fertilizer

Technical Specifications

Model	Number of Decks	Power (kW)	Screen Surface Size (mm)	Mesh Size (mesh/inch)	Frequency (cycles/min)	Installation Angle (°)
YJZ—520	1-6	0.25–0.55	500×2000	2–325	960	0–10
YJZ—525	1-6	0.37–0.75	500×2500	2–325	960	0–10
YJZ—1020	1-6	0.75–1.1	1000×2000	2–325	960	0–10
YJZ—1025	1-6	0.75–1.5	1000×2500	2–325	960	0–10
YJZ—1030	1-6	1.1–1.5	1000×3000	2–325	960	0–10
YJZ—1224	1-6	1.5–2.2	1200×2400	2–325	960	0–10
YJZ—1525	1-6	1.5–3.0	1500×2500	2–325	960	0–10
YJZ—1530	1-6	1.5–3.0	1500×3000	2–325	960	0–10

Advantages Compared:Square Linear Vibrating Screen vs Circular Vibrating Screen

Comparison Item	Square Linear Vibrating Screen	Circular Vibrating Screen
Vibration Mode	Driven by dual vibrating motors with linear reciprocating motion	Driven by vibrator with circular or elliptical motion
Applicable Particle Size	3/8 inch (10 mm) to 400 mesh (38 microns)	Screening mesh range: 2–500 mesh
Processing Capacity	High	Medium to High
Screening Efficiency	High screening efficiency for fine particles and easy-to-screen materials	High screening efficiency for large particles and high-viscosity materials
Multi-layer Screening	Supports 2~6 layers for multi-stage classification	Supports multi-layer screening
Main Advantages	High precision, low dust, multi-stage classification, ideal for fine powder	Large throughput, impact resistance, suitable for coarse particle screening

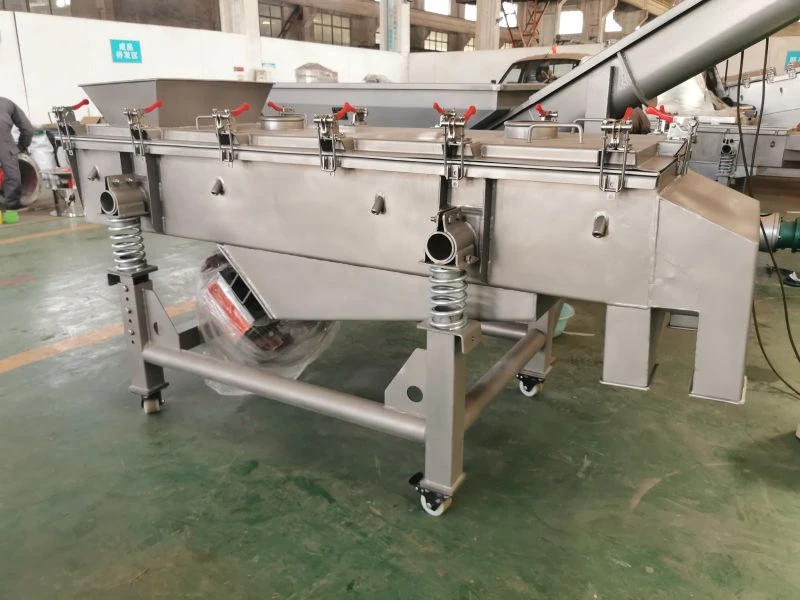

Custom Square Linear Vibrating Screen

Different designs are available to suit different applications.

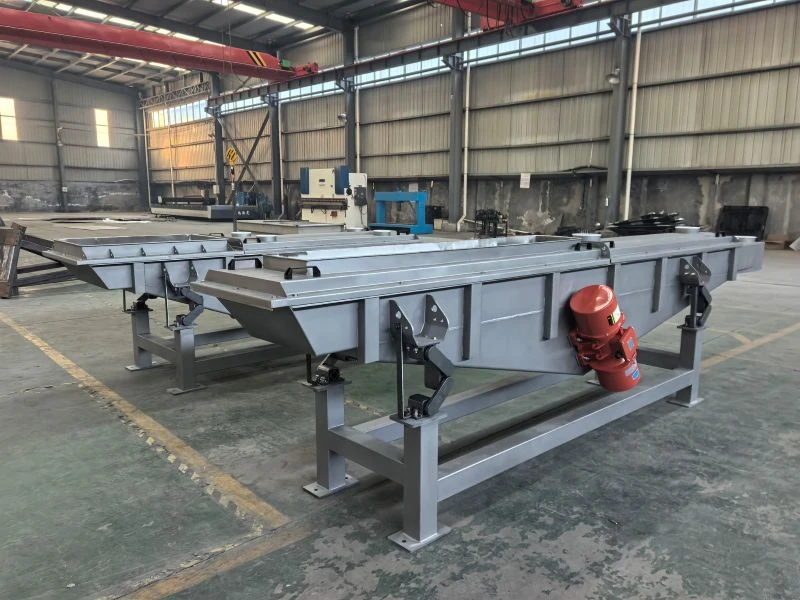

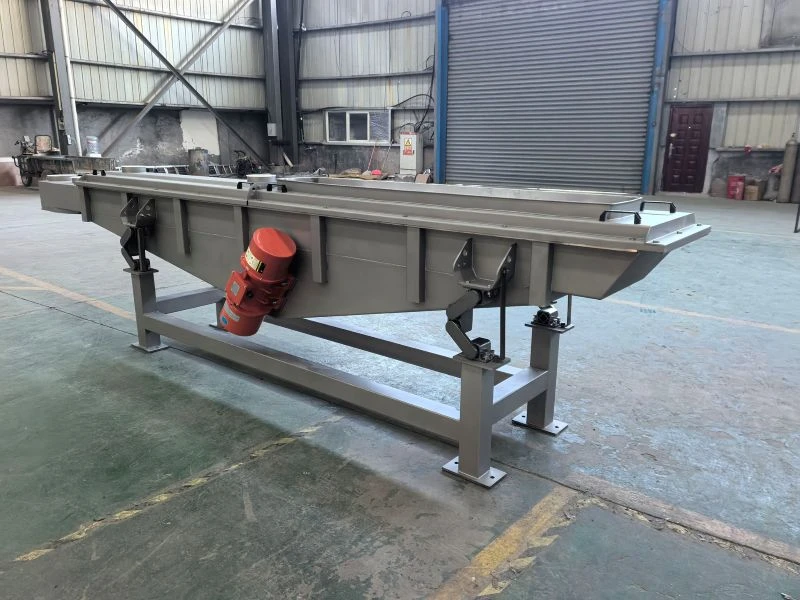

Carbon steel

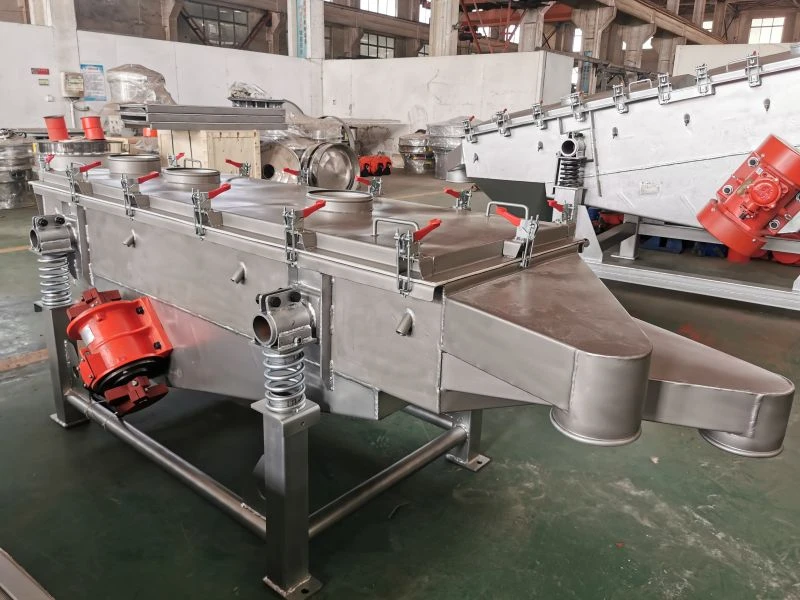

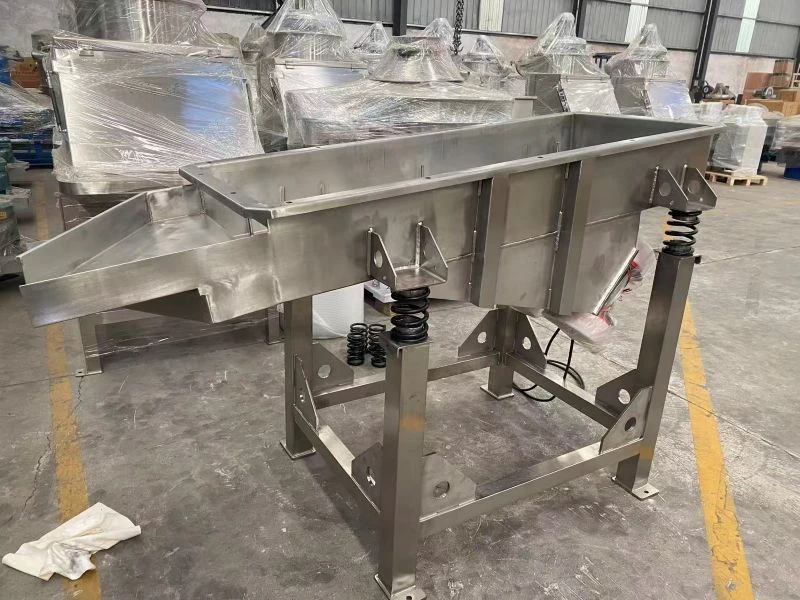

Stainless steel

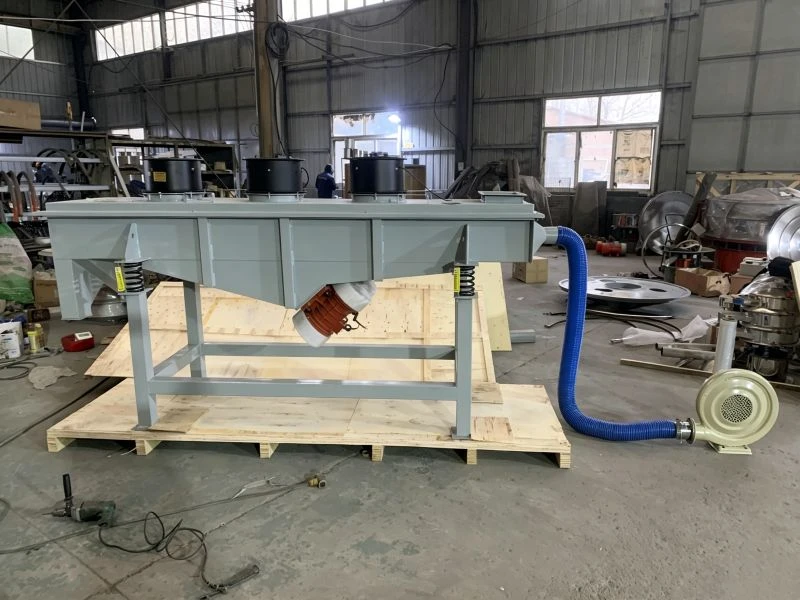

Air-cooled

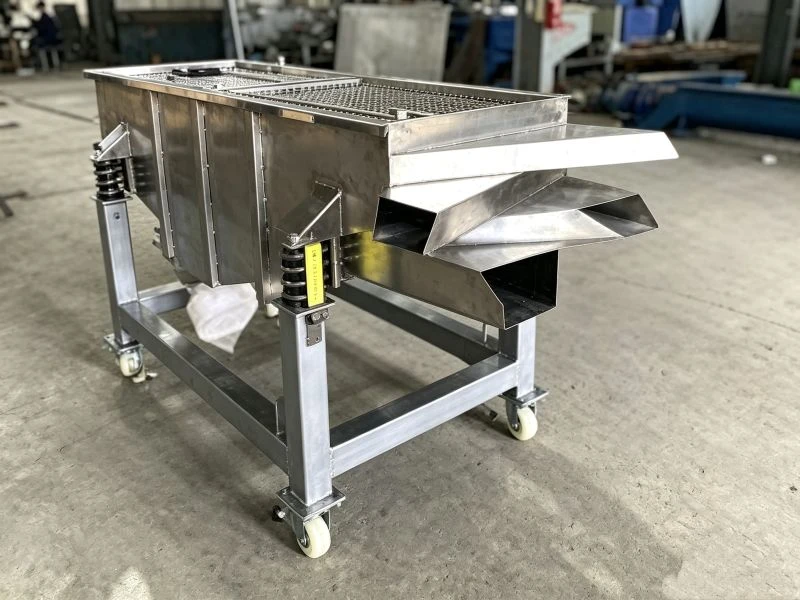

Portable

Case Studies

The following data is based on actual screening statistics from our clients.

Screening Material	Specific Gravity	Screen Mesh Size	Model	Material Condition	Capacity (kg/h)
Plastic Pellets	0.95	3 mm	YJZ-520-2P	Dry	500
Iron Ore Powder	2.3	150 mesh	YJZ-1020-3S	Dry	10000
Slag	4	5 mm	YJZ-1020-1P	Dry	10000
Wood Chips	0.2	80 mesh	YJZ-1030-3P	Dry	18000
Silicon Carbide	4	60 mesh	YJZ-520-1P	Dry	300
Activated Carbon	0.8	36 mesh	YJZ-525-1S	Dry	500

Why Choose Our Square Linear Vibrating Screen?

High-precision screening performance

Ensures accurate particle separation for powders, granules, and bulk materials with stable linear vibration.

Flexible customization capability

Supports OEM/ODM design, including mesh size, deck layers, material (SS304/SS316/carbon steel), and capacity requirements.

Reliable industrial-grade quality

Built with robust structure, CE/ISO standard compliance (if applicable), suitable for long-term continuous operation.

Global service & fast support

Experienced export supplier with efficient delivery, technical guidance, and worldwide after-sales support.

Vibrating Screen and Conveyor Machine Manufacturer & Supplier

Built for precision screening, reliable performance, and flexible industrial applications,
Yuanjing rotary vibrating screens are trusted by customers worldwide.

Global Project Experience

Yuanjing products are exported to 50+ countries and regions, serving industries including food, chemicals, pharmaceuticals, mining, and new energy.

Strong Manufacturing Capability

Advanced production lines with laser cutting, CNC machining, automatic welding, and strict quality inspection ensure consistent product quality.

Accurate & Stable Separation

Optimized vibration design delivers even material flow, high screening accuracy, and stable long-term operation.

Customized Screening Solutions

Yuanjing offers flexible configurations in diameter, mesh size, deck layers, and material options to fit your exact process requirements.

FAQs

The square linear vibrating Screen is used for fine powder screening, particle size classification, and impurity removal. It is widely applied in industries such as chemical, food, pharmaceutical, mining, and plastics for continuous and high-precision separation of materials.

A linear vibrating screen can handle a wide range of materials including calcium carbonate, silica sand, PVC powder, flour, starch, plastic pellets, fertilizer granules, and pharmaceutical powders, making it suitable for both fine powders and granular materials.

The Square linear vibrating Screen uses linear motion for high-precision screening of fine materials, while the Circular Vibrating Screen uses circular motion for high-capacity coarse material screening such as sand, gravel, and ore.

Yes, it is specifically designed for fine powder screening and ultra-fine particle classification, especially when equipped with fine mesh and anti-blocking systems such as bouncing balls or ultrasonic devices.

It is widely used in chemical processing, food production, pharmaceuticals, mining, plastics recycling, agriculture, and battery material processing, especially where precise grading and consistent particle size are required.

Yes, it supports full customization including screen mesh size, number of layers, material type (SS304/SS316/carbon steel), motor power, capacity, and dust-proof design, making it suitable for different industrial production lines worldwide.
