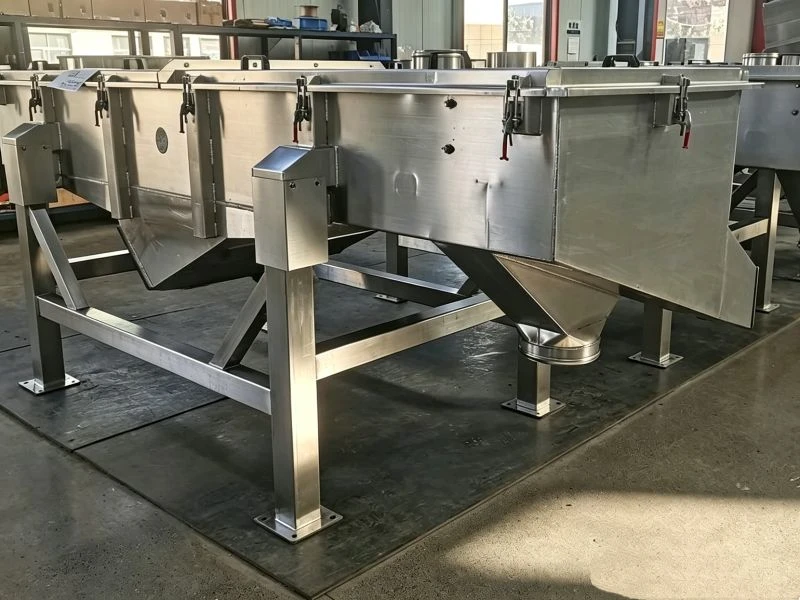

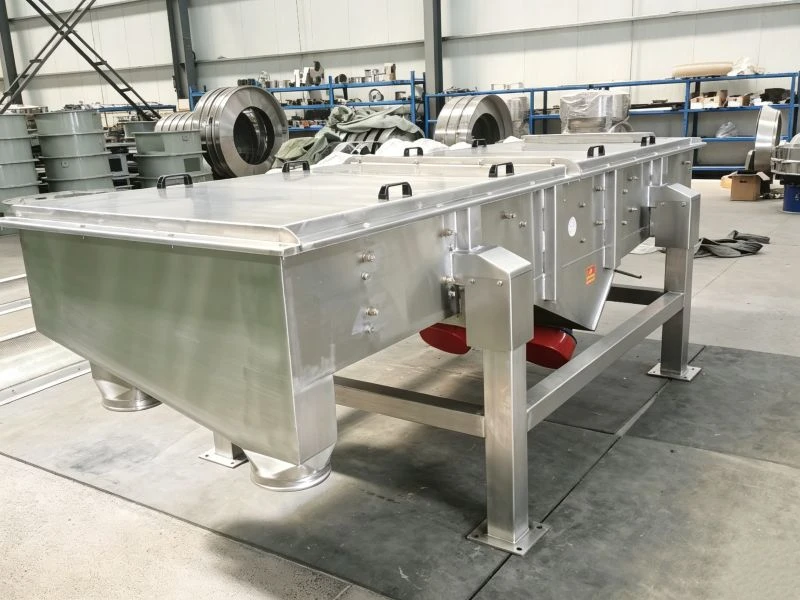

Stainless steel linear vibrating screen for grading diatomaceous earth (70–90 mesh)

Overview

The client is a specialized enterprise engaged in the deep processing of diatomite, primarily producing high-purity diatomite powder for use in filtration materials, architectural coatings, and industrial fillers. Their existing production process faced multiple bottlenecks, including frequent screen clogging, unstable hourly output, dust leakage, and cumbersome screen-changing procedures.

Given the specific material characteristics of the diatomite powder—such as low bulk density, fine particle size, a tendency to generate airborne dust, and a propensity for agglomeration—our team conducted material property tests. We then custom-designed an all-stainless steel linear vibrating screen specifically for the classification of the client’s diatomite powder.

The final solution was designed for continuous screening of diatomaceous earth powder with 70 mesh and 90 mesh classification, achieving a stable processing capacity of 3000 kg per hour while maintaining clean operation and consistent screening quality.

Customer Requirements

Following discussions, the client highlighted long-standing production challenges associated with the diatomaceous earth screening process and specified clear production requirements. The screening system needed to meet high-volume production demands while avoiding common issues encountered in powder screening applications.

1.Prevent screen mesh blockage

Because diatomaceous earth powder contains fine particles, ordinary screening equipment could easily experience mesh clogging, reducing screening efficiency and requiring frequent cleaning.The customer needed a powder screening machine with anti-blocking performance that could maintain stable operation during long production periods.

2. Easy Screen Replacement

The screen itself is a consumable item; wear or damage compromises screening quality, necessitating replacement. Therefore, the equipment must feature a convenient screen-changing mechanism to minimize downtime.

3. Continuous screening capacity

3000 kg/hour diatomaceous earth powder，The equipment needed to maintain stable feeding, screening, and discharge performance.

4. Dust-free operation

Since diatomaceous earth powder is lightweight and fine, dust leakage could affect the workshop environment.The customer requested a sealed screening solution to reduce powder overflow and improve working conditions.

Customized Screening Solution

Based on the physical properties of diatomaceous earth fine powder and following material testing, our technical team has developed a dust-free, anti-clogging linear vibrating screen solution specifically designed for the classification of 70–90 mesh diatomaceous earth:

1.Fully sealed all-stainless-steel construction,Equipped with high-elasticity gaskets and enclosed inlet/outlet ports, the system ensures a completely sealed screening process. This effectively eliminates fine dust leakage, thereby improving the workshop environment and reducing raw material loss.

2.Anti-clogging mesh cleaning system,Specialized bouncing ball mechanisms are installed for the 70-mesh and 90-mesh screens. These effectively prevent clogging caused by the adhesion and agglomeration of diatomaceous earth powder, ensuring continuous and efficient screening operations.

3.Quick-release screen mounting,The design allows for the rapid replacement of 70/90 mesh screens without the need for specialized tools or complex procedures, significantly minimizing maintenance downtime.

4.Optimized vibration frequency and amplitude,To meet the client’s production target of 3,000 kg/h, the synchronous vibration parameters of the dual motors are precisely adjusted. This ensures the diatomaceous earth powder spreads evenly and moves steadily across the linear vibrating screen surface, guaranteeing consistent hourly output and classification accuracy.

Related videos

Equipment Parameters

Equipment Advantages and Technical Features

Custom-engineered for 70–90 mesh diatomaceous earth, this linear vibrating screen has been optimized for fine powder screening applications to fully meet customer production requirements:

1. Efficient Anti-Clogging and Stable Long-Term Screening

To address the tendency of fine diatomaceous earth powder to clog screens, the unit features a built-in elastic bouncing ball self-cleaning system that continuously clears the mesh during operation. This linear vibrating screen system effectively eliminates mesh adhesion and clogging, ensuring smooth screening of 70-mesh and 90-mesh powders without the need for frequent downtime for cleaning.

2. Tool-Free, Rapid Screen Changes and Low Maintenance Costs

An optimized split-frame design and quick-locking mechanism allow operators to replace and adjust screens rapidly. This significantly enhances production flexibility and reduces labor and maintenance costs.

3. Fully Sealed, Dust-Free Operation

The machine utilizes a fully enclosed, dust-proof structure with tightly sealed joints. No dust escapes during the screening process, ensuring compliance with industrial environmental standards while preventing raw material waste and boosting economic efficiency.

4. Stable Throughput and Consistent Screening Quality

Precise calibration of the dual-motor vibration parameters ensures uniform material flow speed and consistent screening trajectories across the mesh surface. The linear vibrating screen maintains a stable throughput of 3,000 kg/h during continuous 24-hour operation, producing 70/90 mesh diatomaceous earth powder with uniform particle size, stable classification precision, and consistent quality.

5. Food-Grade Stainless Steel Construction

The entire unit is constructed from 304 stainless steel, offering excellent corrosion and wear resistance, thereby meeting the quality standards required for high-end diatomaceous earth applications.

Customer Feedback

After installation and testing, the customer reported that the new linear vibrating screen system solved the main issues they previously experienced：

stable 3000 kg/h processing capacity

reduced screen blockage problems

easier mesh replacement

cleaner production environment

more consistent 70 mesh and 90 mesh grading results

During the follow-up communication, the customer mentioned that the equipment was running smoothly and met their expectations for continuous diatomaceous earth powder processing.The improved screening performance also helped them reduce manual cleaning time and improve overall production efficiency.

Conclusion

Every powder material has different screening characteristics. Particle size, moisture, density, and production requirements all affect the final equipment design.

If you need a linear vibrating screen for diatomaceous earth, fine powder sieving machine, 70 mesh 90 mesh powder classifier, or dust-free industrial screening equipment, our engineering team can provide a customized solution based on your application.

Please contact us with details regarding your material type, production capacity requirements, and screening objectives. We will assist you in designing a reliable and efficient powder screening system.
