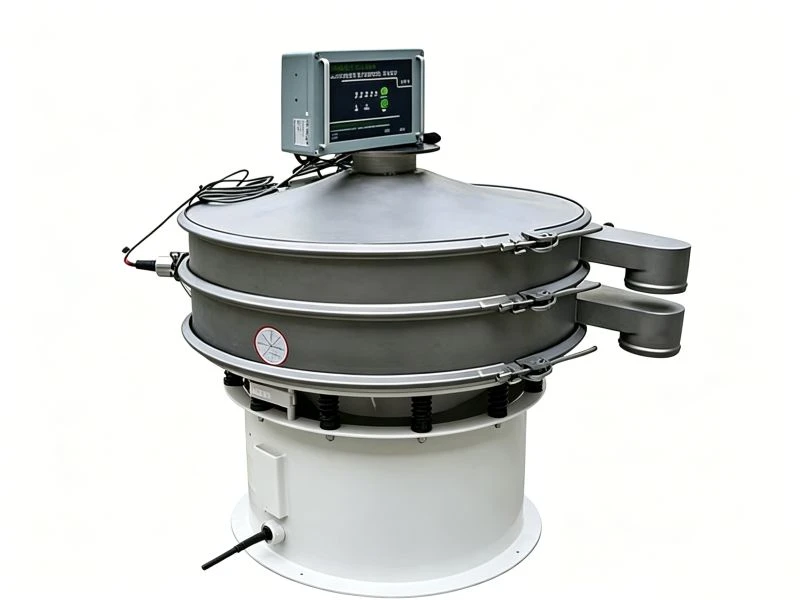

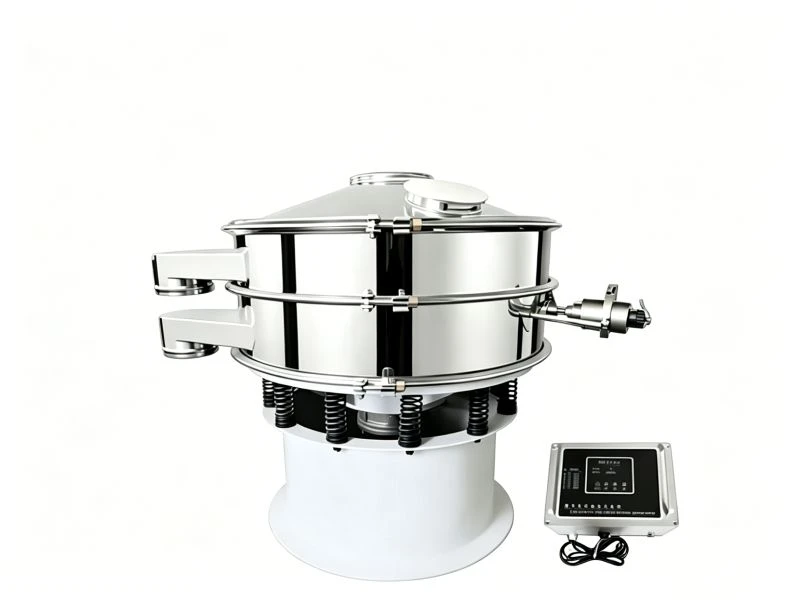

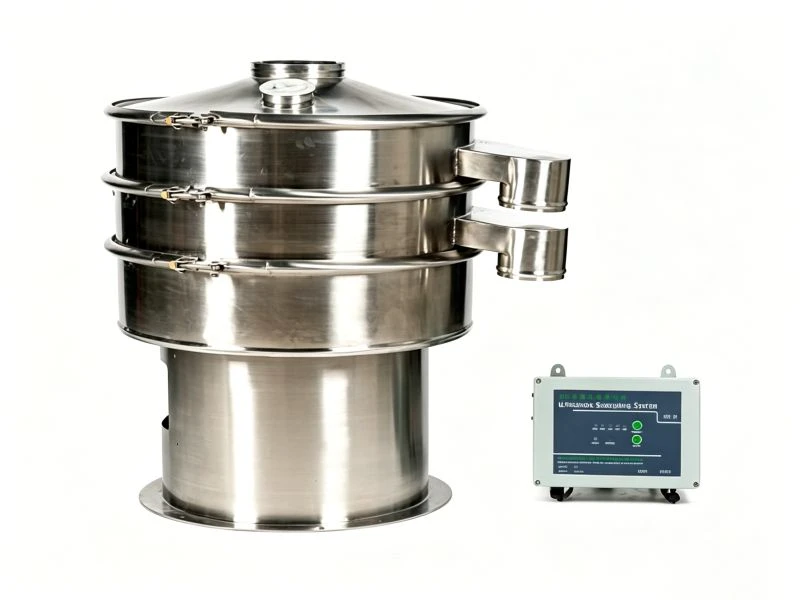

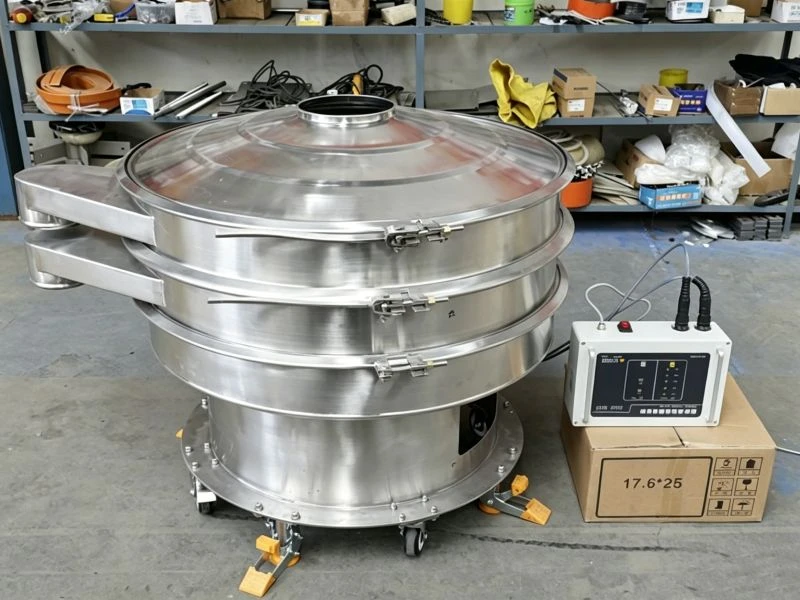

Ultrasonic Vibro Sifter
High Efficiency Screening for Fine, Sticky & Hard-to-Sieve Powders
Ultrasonic Vibro Sifter is an advanced sieving system designed for high-efficiency separation of ultra-fine powders. By combining traditional vibratory motion with high-frequency ultrasonic technology, it effectively eliminates mesh clogging, reduces material agglomeration, and ensures consistent, high-accuracy particle classification.
Efficient | Anti-Clogging | High Precision | Continuous Operation
What is an Ultrasonic Vibro Sifter?
The Ultrasonic Vibro Sifter is designed and manufactured by modifying the screen frame structure and adding an ultrasonic screening system to the existing three-dimensional vibrating screen. Under the combined action of the vibrating motor and the ultrasonic screening system, a high-frequency, low-amplitude ultrasonic vibration wave is generated on the screen surface, effectively solving screening problems such as screen clogging, screen sticking, adsorption, clumping, static electricity, and low specific gravity that occur during the screening of fine materials.

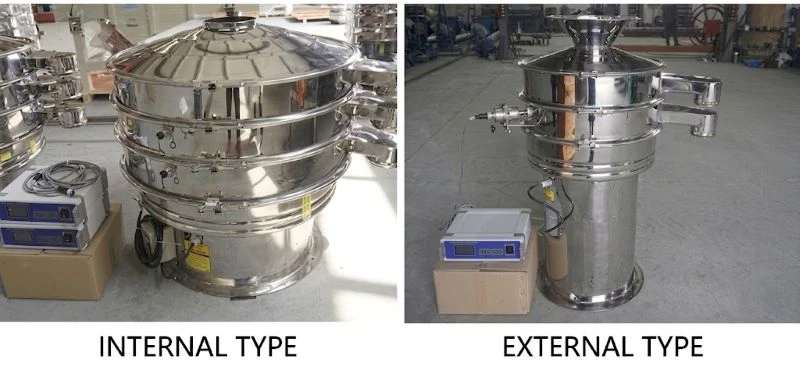

Ultrasonic Vibro Sifter Types
Internal Ultrasonic Vibro Sifter
The transducer is mounted beneath the screen, resulting in a compact structure and lower profile—ideal for space-constrained environments. However, cleaning and maintenance require component disassembly; this type is best suited for dry, non-corrosive powders.
External Ultrasonic Vibro Sifter
The transducer is mounted externally and does not come into contact with the material. Cleaning does not require disassembly, making maintenance convenient. It is suitable for high-purity applications as well as moist or agglomeration-prone materials, and it minimizes downtime.

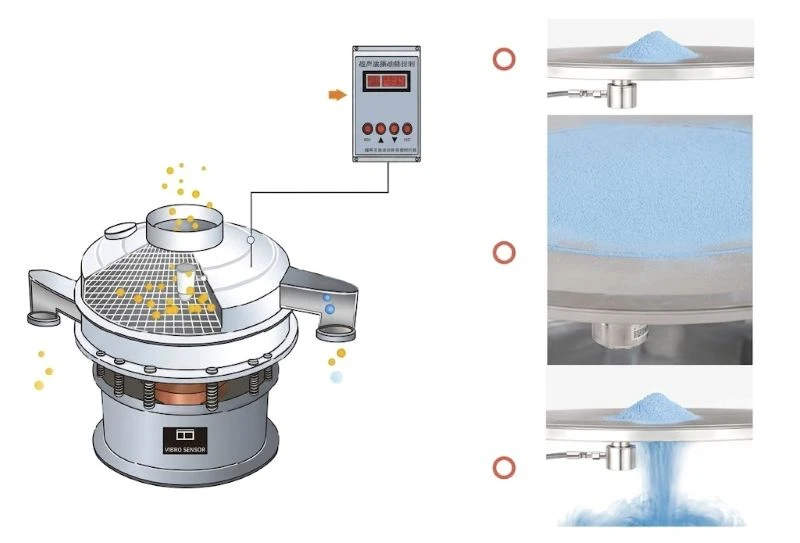

Ultrasonic Vibro Sifter Working Principle

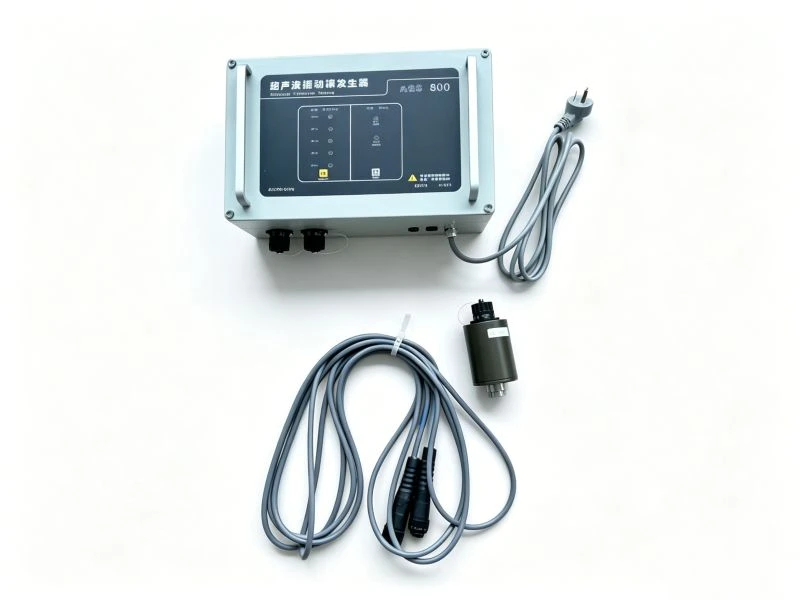

The Ultrasonic Vibro Sifter is a standard vibrating screen equipped with an additional ultrasonic screening system. It converts electrical energy (220V/50Hz or 110V/60Hz) into 36kHz mechanical vibrations via an ultrasonic transducer. These ultrasonic waves cause the screen mesh to vibrate at high frequencies—up to 36,000 times per second—suspending fine powder particles in a micro-state above the mesh. This facilitates faster passage through the screen while preventing static buildup and material adhesion, thereby simultaneously achieving efficient screening and mesh cleaning.
Features
High Screening Precision
By combining low-frequency vibration with high-frequency ultrasonic action, the system precisely separates fine particles ranging from 20μm to 1000μm. Screening precision is improved by 1–10 percentage points compared to conventional equipment, meeting the rigorous particle size control standards of industries such as pharmaceuticals and electronics.
Versatile Material Compatibility
Compatible with various screen materials—including stainless steel and nylon—and customizable based on material properties (such as corrosiveness or flammability/explosiveness). Suitable for diverse sectors like food processing, chemicals, and mining, it handles both dry powders and slurry materials.
Effective Anti-Clogging Performance
High-frequency ultrasonic vibrations act directly on the screen mesh, breaking up agglomerates and neutralizing electrostatic attraction to effectively prevent clogging. This is particularly beneficial for materials that are sticky or prone to moisture absorption (e.g., Traditional Chinese Medicine powders, battery materials), thereby extending the screen’s continuous operating life.
Stable and Efficient Operation
The ultrasonic system and vibration mechanism work in tandem with adjustable amplitude and frequency, allowing for flexible parameter tuning based on material variations. The equipment features a compact structure with a small footprint and low operating noise, facilitating easy integration into production lines.
Technical Specifications
| Model | Diameter (mm) | (mm) | Decks | Power (kW) | Accuracy (%) | Capacity (kg/h) |
| YJ-400 | 400 | 340 | 1-5 | 0.25 | ≥95% | 50-200 |
| YJ-600 | 600 | 530 | 1-5 | 0.55 | ≥95% | 100-500 |
| YJ-800 | 800 | 720 | 1-5 | 0.75 | ≥95% | 200-800 |
| YJ-1000 | 1000 | 900 | 1-5 | 1.1 | ≥95% | 500-1200 |
| YJ-1200 | 1200 | 1100 | 1-5 | 1.5 | ≥95% | 800-2000 |
| YJ-1500 | 1500 | 1400 | 1-5 | 2.2 | ≥95% | 1000-3500 |
| YJ-1800 | 1800 | 1700 | 1-5 | 3 | ≥95% | 1500-5000 |
Applications
The Ultrasonic Vibro Sifter is widely used for high-precision screening of fine, sticky, and difficult-to-sieve powders across multiple industries
Pharmaceuticals
API powders, herbal extracts, excipients
Food Processing
milk powder, sugar, additives, flavoring powders
Chemicals
resins, pigments, coatings, fine chemical powders
Metal Powders & Additive Manufacturing
aluminum, titanium, stainless steel powders
Ultrasonic Vibro Sifter vs Conventional Vibrating Sifter
| Item | Ultrasonic Vibro Sifter | Conventional Vibrating Sifter |
| Screening Principle | Vibration + ultrasonic de-blinding | Mechanical vibration only |
| Mesh Clogging | Effectively eliminated | Frequent clogging, especially for fine powders |
| Suitable Materials | Fine, sticky, electrostatic, difficult powders | Medium to coarse, free-flowing powders |
| Screening Accuracy | High and stable precision | Moderate, less consistent for fine particles |
| Throughput Efficiency | Higher due to continuous open mesh | Lower due to clogging and reduced flow |
| Maintenance Requirement | Low, minimal cleaning downtime | Higher, frequent cleaning and mesh replacement |

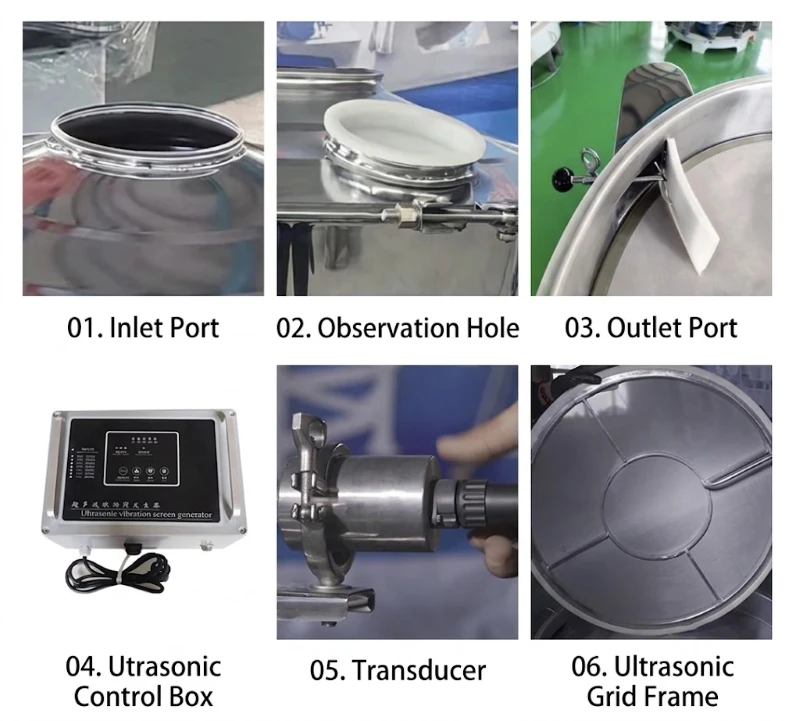

Customizable Solutions
Yuanjing’s ultrasonic vibro sifter offers optional dust covers and viewing windows for enhanced sealing and monitoring. Dust-proof, explosion-proof motors can be customized based on the material’s characteristics to ensure a safe and reliable screening process. Additional features include an optional feeding station for uniform material input and swivel casters at the base for easy mobility; the number of screen decks, discharge outlet orientation, and materials for product-contact parts can also be customized to meet specific requirements.
OEM/ODM Custom Engineering Available
Adjustable Diameter Based on Capacity Requirements
Multi-Layer Screening Design Options
Integration with Conveyor & Feeding Systems

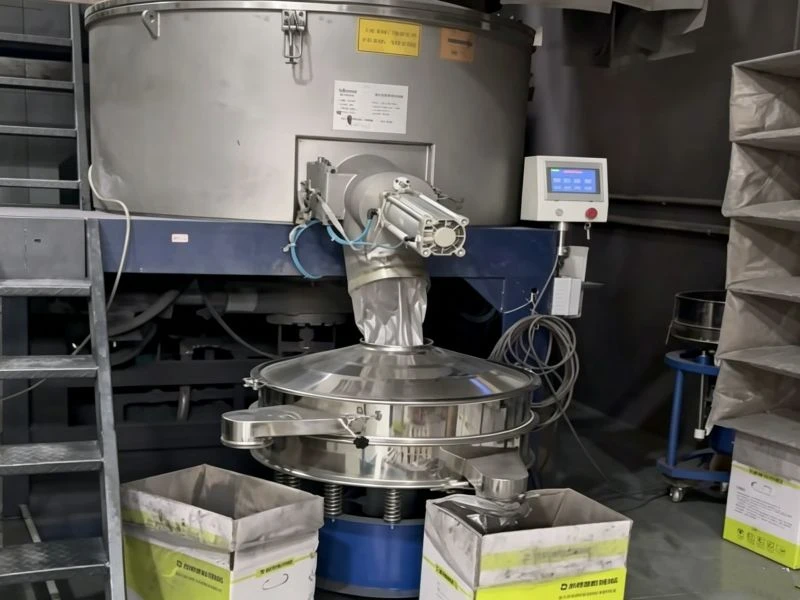

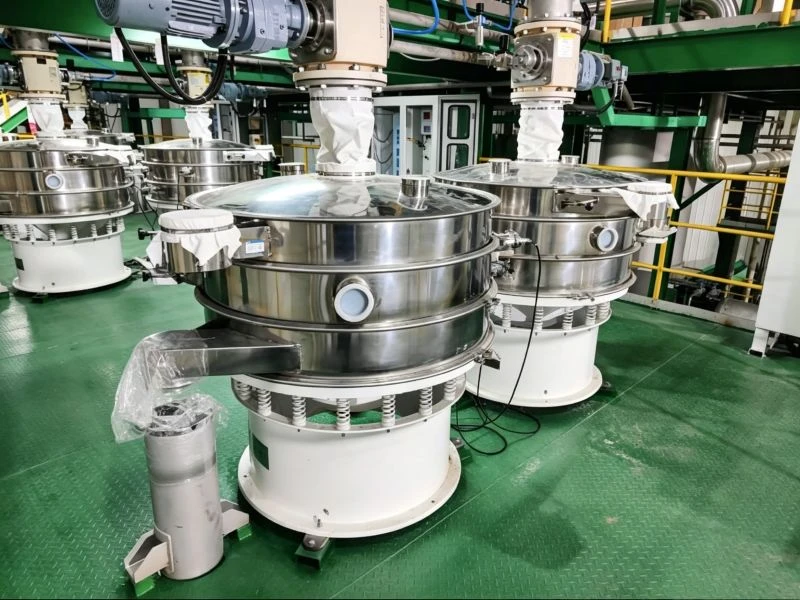

Our Cases
The following case data documents our project experience.
CASE STUDIES

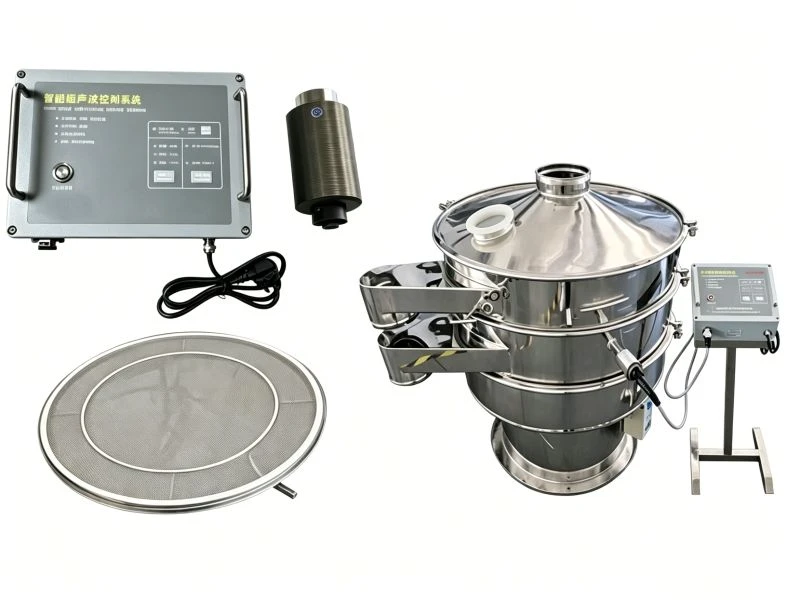

Pollen is a lightweight, highly cohesive material that easily clogs standard sieving systems, leading to low efficiency and unstable output. By applying an Ultrasonic Vibro Sifter, the screening process becomes continuous and stable, significantly improving throughput and particle consistency.
Palm powder’s high oil content causes agglomeration and screen clogging, hampering conventional vibrating sifters. Ultrasonic vibro sifters eliminate clumping, maintain clear mesh for stable, efficient screening and uniform particle size.
| Materials | Mesh | Capacity（kg/h) | Model |
| Silicon carbide | 500 | 1250 | YJ-1500-1S |
| Vitamin C powder | 100 | 150 | YJ-600-1S |
| Pollen | 400 | 350 | YJ-1000-1S |
| Cobalt powder | 400 | 350 | YJ-1000-1S |
| Tungsten powder | 600 | 30 | YJ-800-1S |
